SIM802 Hardware Design

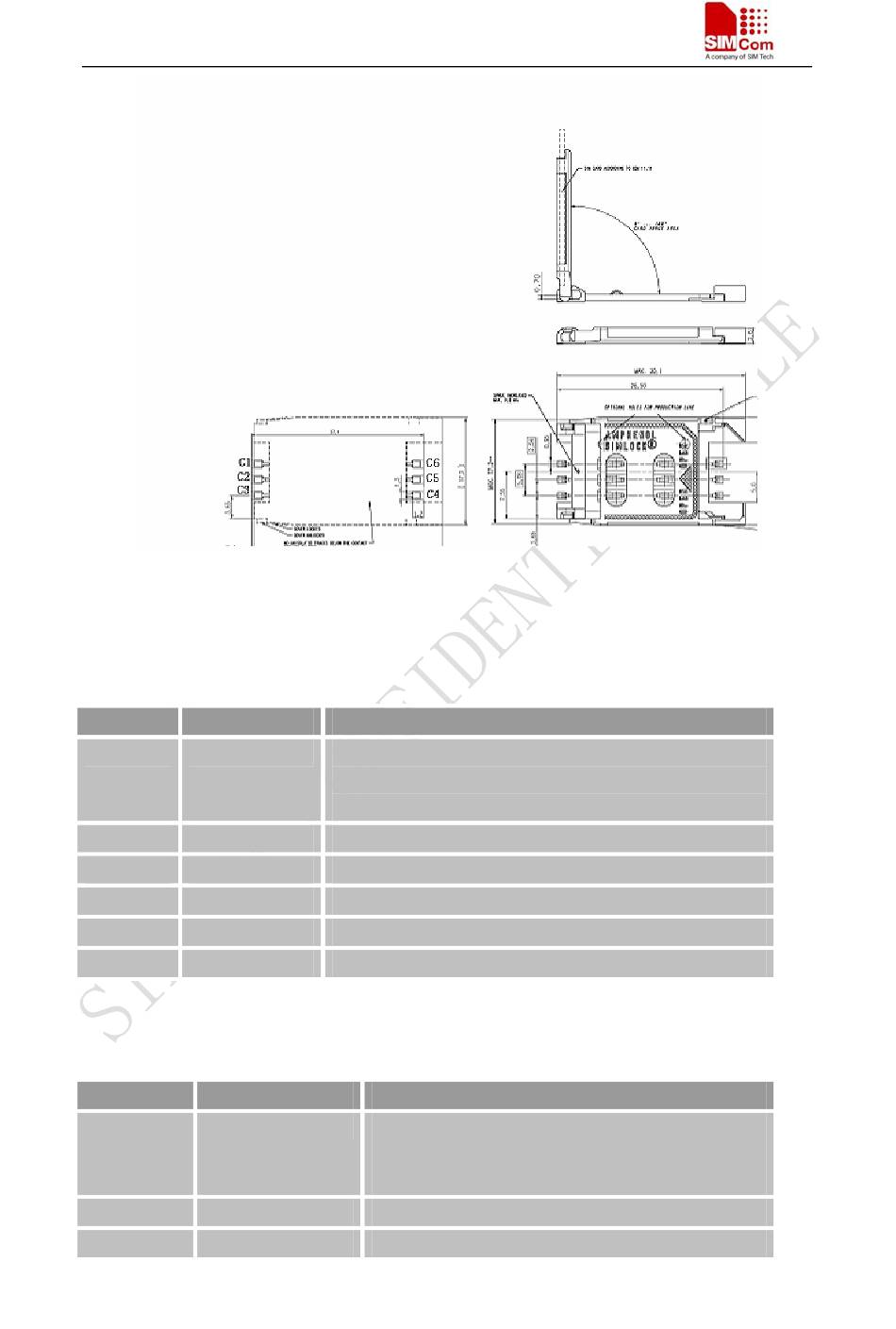

Figure 28: Amphenol C707-10M006 512 2 SIM card holder

Table 18: Pin description (Amphenol SIM card holder)

Pin Signal
SIM_VDD
C1
SIM_RST
C2
SIM_CLK
C3
GND
C4
VPP
C5
SIM_DATA
C6
Table 19: Pin description (Molex SIM card holder)
Pin Signal
SIM_VDD
C1
SIM_RST
C2
SIM_CLK
C3
SIM802_HD_V2.01
Description
SIM Card Power supply, it can identify automatically the
SIM Card power mode, one is 3.0V±10%, and another is
1.8V±10%. Current is about 10mA.
SIM Card Reset.
SIM Card Clock.
Connect to GND.
Not connect.
SIM Card data I/O.
Description
SIM Card Power supply, it can identify automatically
the SIM Card power mode, one is 3.0V±10%, and
another is 1.8V±10%. Current is about 10mA.
SIM Card Reset.
SIM Card Clock.
