SIM802 Hardware Design
6 Mechanics
This chapter describes the mechanical dimensions of SIM802.
6.1 Mechanical dimensions of SIM802
Following shows the mechanical dimensions of SIM802 (top view, side view and bottom view).
All dimensions are shown in millimeters.

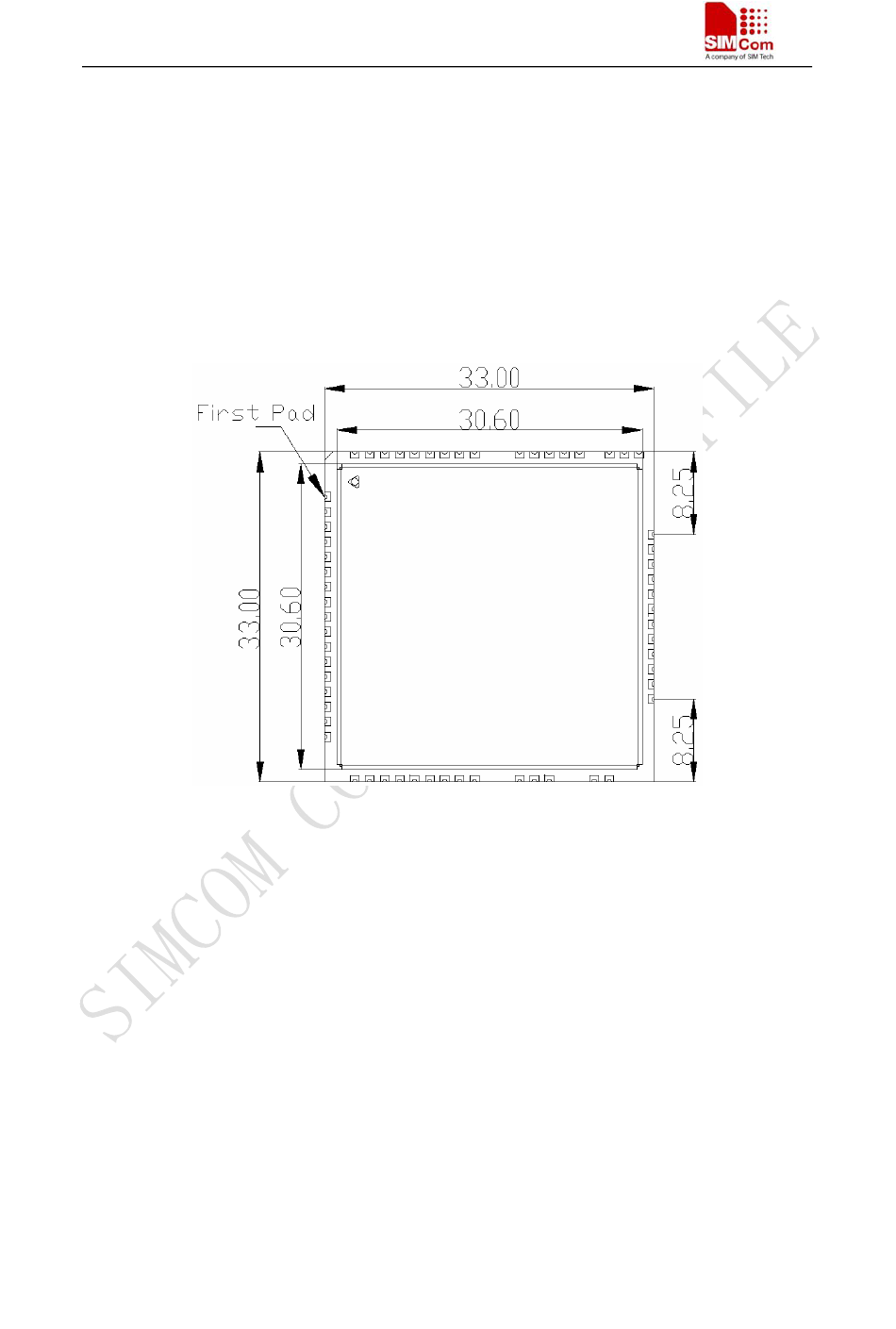

Figure 37: SIM802 top view
65
SIM802_HD_V2.01
12.01.2010
