CipherLab 22 Series User Manual page 9

Introduction
Show Caption No.: Enable to show the caption of each setup barcode.
Show Sequence No.: Enable to label each setup barcode with a number to clarify the
steps.
Barcode Size: Drag the scroll bar to adjust the barcode size with each increment of 100
in percentage Up to 300%.
Barcode Spacing: Drag the scroll bar to adjust the barcode spacing with each increment
of 100 in percentage up to 500%.

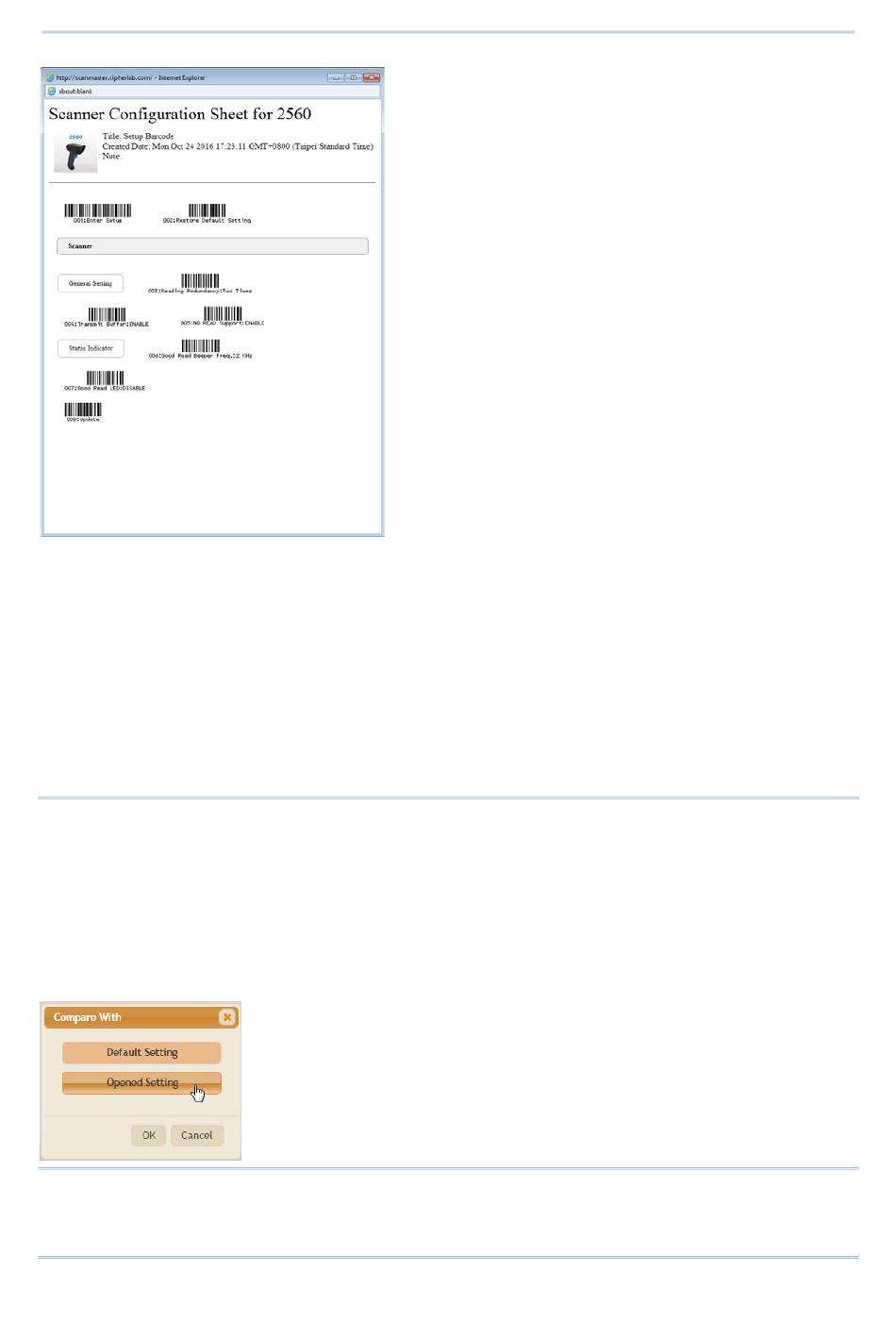

Note: With an existing setting file opened, a dialog will appear when you click the "1D
Barcode" or "2D Barcode" button.
Click Default Setting to display the loaded setting barcodes which have been changed by
comparing them with default settings.
Click Opened Setting to display the loaded setting barcodes which have been changed by
comparing them with the originally loaded settings.
5
