Changing The Blade - Rotabroach Element 14 1 Original Instructions Manual

Element 14 Manual
Recommended Cutting Capacity
WARNING! Use of tool for greater than recommended capacities may lead to motor burnout and possible
electric shock.
Note: Cutting through any cross-sectional area of material thicker than 12.7mm (1/2") tends to load up the
blade, and this will cause your tool to work harder.
Applicable Blade
Dimensions
Work pieces
●
Configuration
(Cross-Section)
Maximum Cutting (4-1/8")
Capacity 105mm

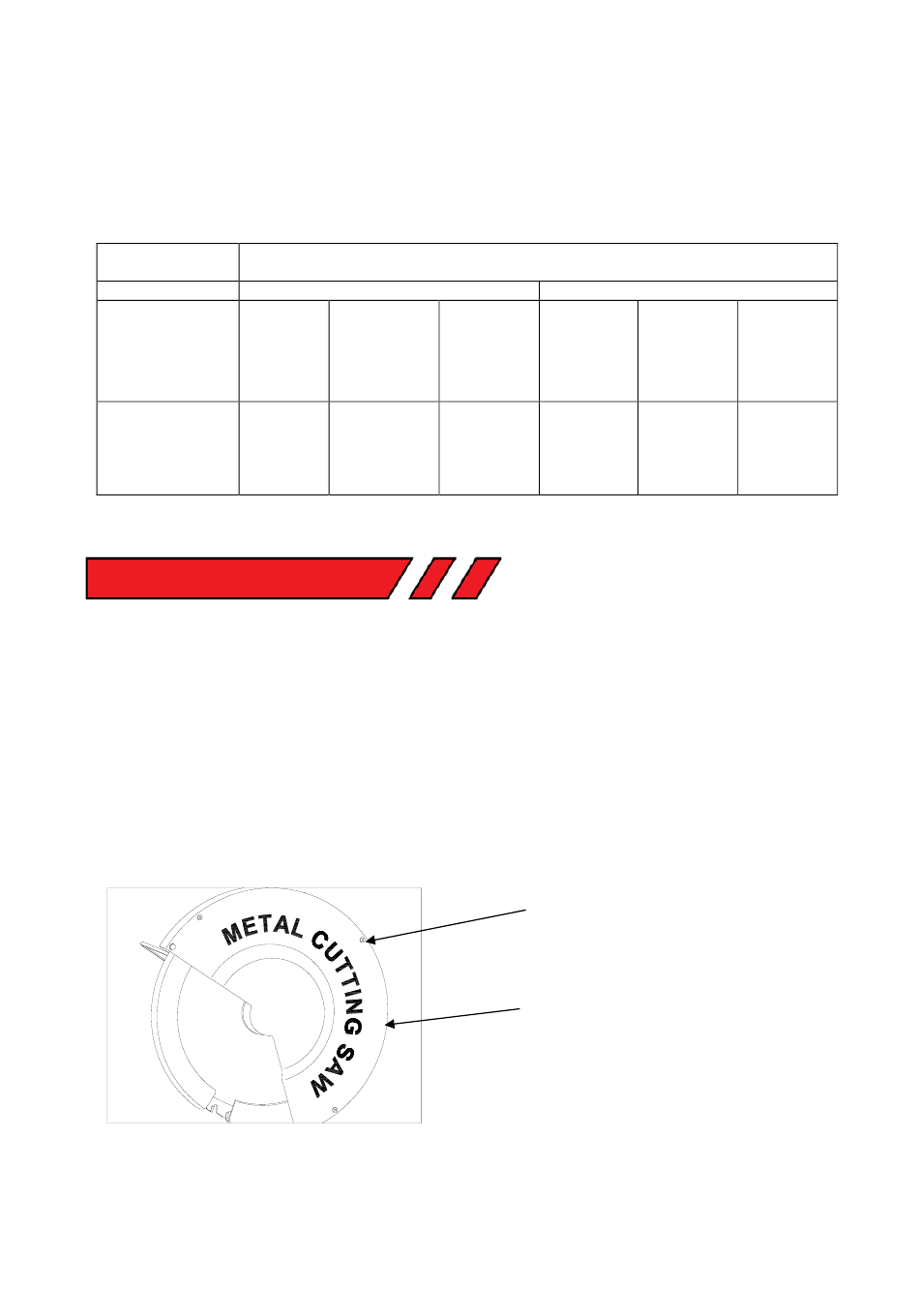

8) CHANGING THE BLADE

1. Disconnect the Machine from The Power Source.
2. Loosen the 3 screws (A), and remove the saw blade cover (B).
3. Press in on arbor lock (C) and at the same time rotate blade (G) by hand until the arbor lock is engaged
4. Using the 8 mm hex wrench provided, loosen arbor screw (D) by turning it counter clockwise, and remove
arbor screw (D), washer (E), outside blade flange (F) and blade (G). Do Not Remove Inside Blade Flange.
5. Make sure the inside surfaces of both the inside and outside blade flanges are clean and free from any
foreign substance
6. Install the new blade (G) Making Certain the Teeth of Saw Blade are Pointing Down at The Front and re-
assemble Outside blade flange (F), washer (E) and arbor screw (D). Turn arbor (D) clockwise to tighten.
7. Replace saw blade cover that was remove in STEP 2.
8. WARNNING: MAKE SURE ARBOR LOCK (C) IS DISENGAGED AND 8 MM HEX WRENCH IS REMOVED BEFORE
TURNING ON THE POWER.
Original instructions
350mm (14") Outer Diameter ×25.4mm (1") hole diameter
AT 45 Degrees
▬
■
(3-1/2" ×3-
(3-1/4" ×4")
1/2")
80mm
90mm
×
×
100mm
90mm
13
Nov 2019
AT 90 Degrees
● ■
(4-3/4" ×4-
3/4")
(5-1/8")
120mm
130mm
×
120mm
A
B
▬
(3-3/4" ×7")
95mm
×
180mm
