4. When transporting the saw secure the motor mount to the base to prevent damage.
5. When cut-off blade comes up to full speed, push the handle to begin cutting. It is important to cut with
steady and even pressure (Do Not Force) in order to obtain a uniform cut.
WARNING! To avoid injury from unexpected saw movement:
a.Before moving the saw, lock the power head in the lower position. Unplug electric cord.
b.To avoid back injury, hold the tool close to your body when lifting. Bend your knees so you can lift with your
legs, not your back. Life by using the handhold areas at each side of the bottom of the base or by the carrying
handle.
c.Never carry saw by the power cord or the trigger grip of the plastic handle. Carrying the tool by the power
cord could cause damage to the insulation or the wire connections resulting in electric shock or fire.
d.Place the saw so other people cannot stand behind it. Thrown debris could injury people in its path.
e.Place the saw on a firm, level surface where there is plenty of room for handling and properly supporting the
work piece.
f.Support the saw so the table is level and the saw does not rock.
g.Bolt or clamp the saw to its support.

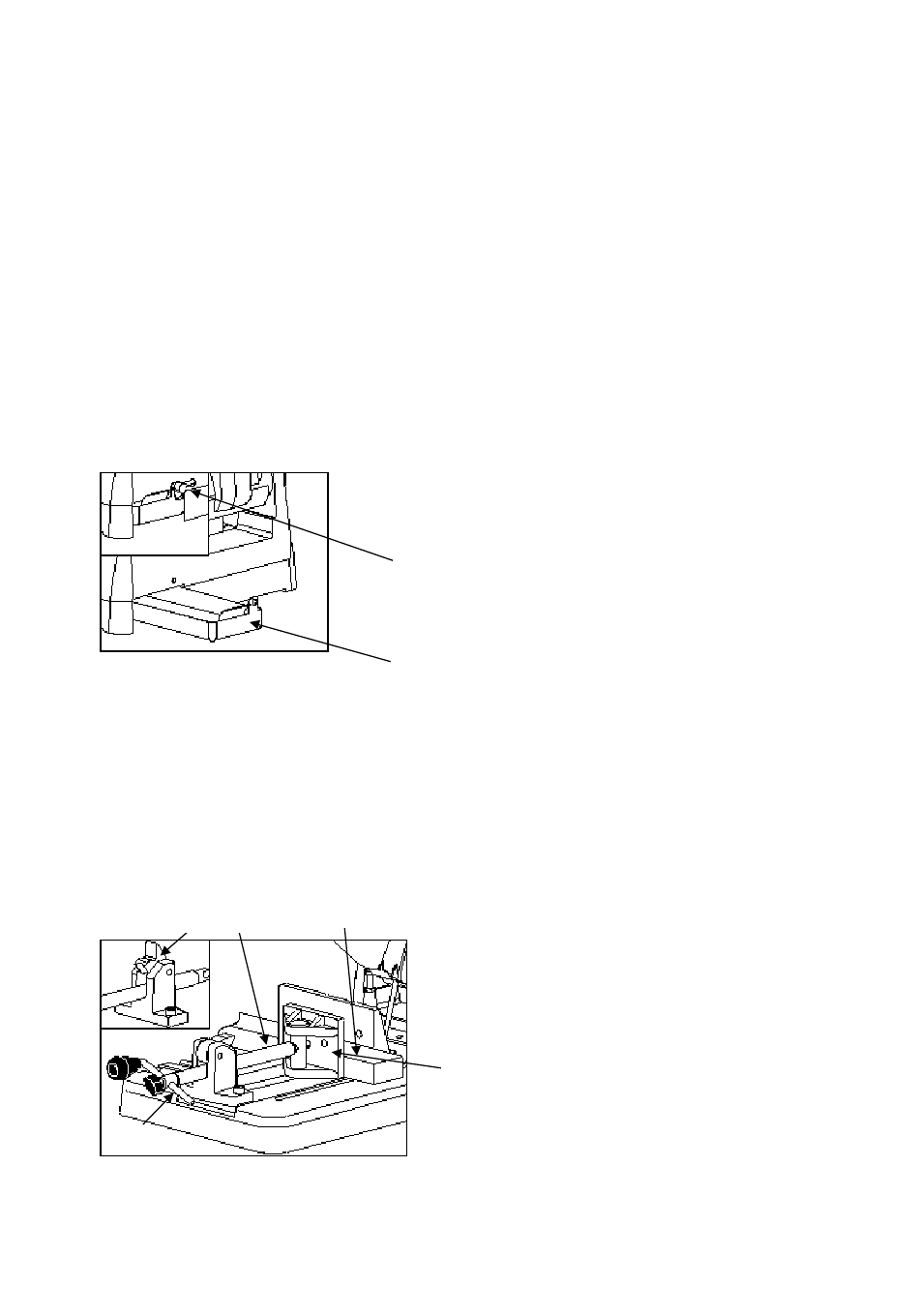

Cleaning the Dust Tank
Loosen the screw (A), take out the dust tank (B) and clear it. Put back the dust tank (B) deck and tighter the screw
(A) again.
A
B
Adjusting the Stationary Vise
Clamping the work piece can be accomplished quickly and easily as follows:
1.Lift thread-nut(A)
2.Pull out screw handle (C) far enough to allow work piece (D) to be placed in the vise opening against rear vise
jaw (E) as shown.
NOTE: It is not necessary to thread screw handle (C) when the thread-nut (A) is in the raised position. The
screw handle (C) can be rapidly pulled out or pushed in.
3.Push screw handle (C) until front vise jaw (E) contacts the work piece (D).
4.Flip thread-nut (A) over to engage vice screw (B) and tighten screw handle (C) to securely clamp work piece
(D) in the vise.
D
A
B
E
C
