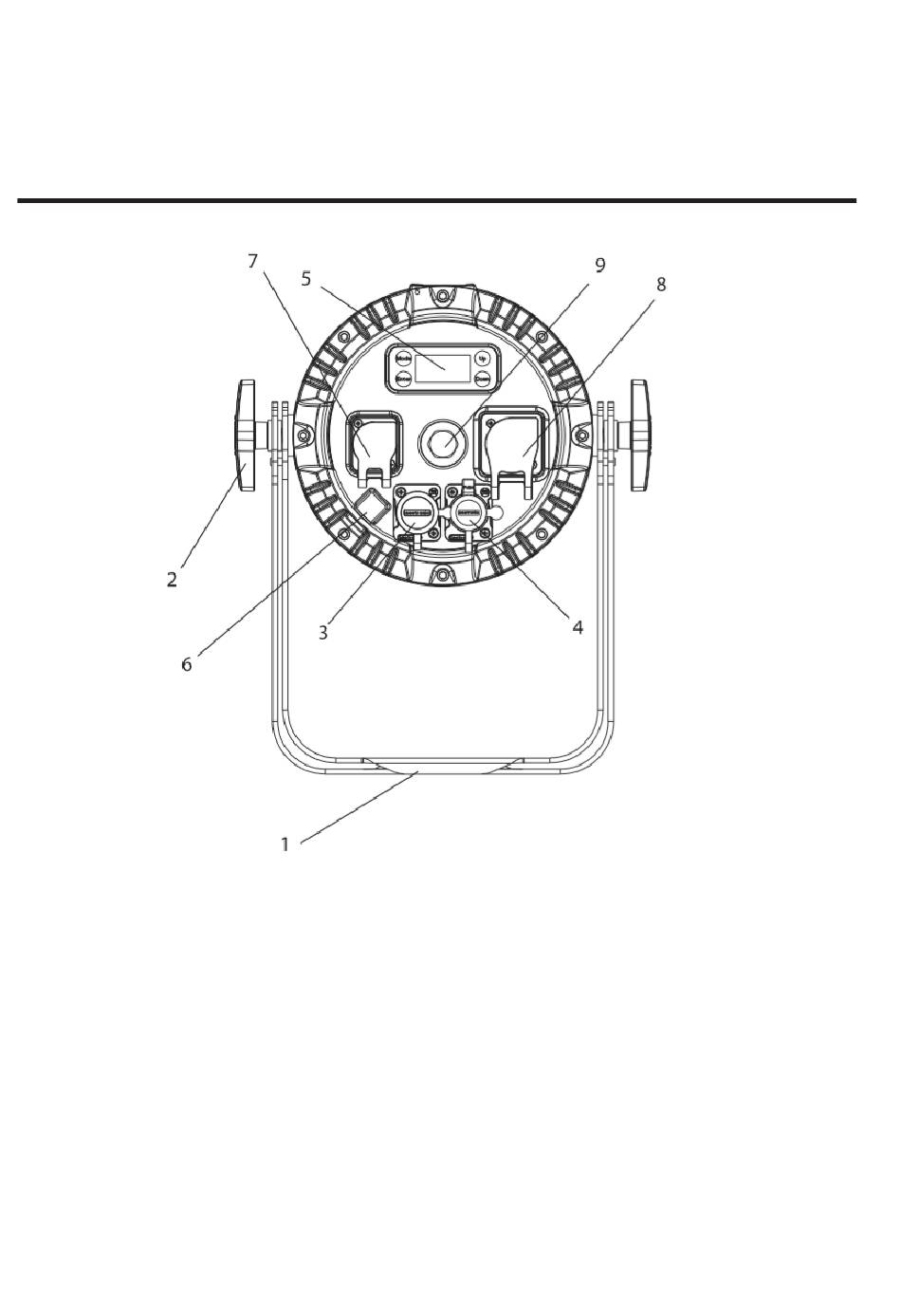

5. OPERATING ELEMENTS AND CONNECTIONS

1. MOUNTING BRACKET
2. LOCKING KNOB for the mounting bracket.
3. DMX IN (5-pin IP65 XLR) 1: ground, 2: DMX-, 3:
DMX+, 4 N/C, 5 N/C.
4. DMX OUT (5-pin IP65 XLR) 1: ground, 2 DMX-, 3:
DMX+, 4 N/C, 5 N/C.
5. CONTROL PANEL with display and 4 button
used to access the control panel functions and
manage them.
6. SAFETY ANCHOR POINT to attach safety cable.
7. POWER IN (IP65 PowerKon) for connection to
a socket (100-240V~/50-60Hz) via the supplied
mains cable.
8. POWER OUT (IP65 PowerKno) connect to supply
power to the next unit.
9. GORE VALVE (to prevent condensation).
