MHZ 11-8110 Installation And Operating Instructions Manual

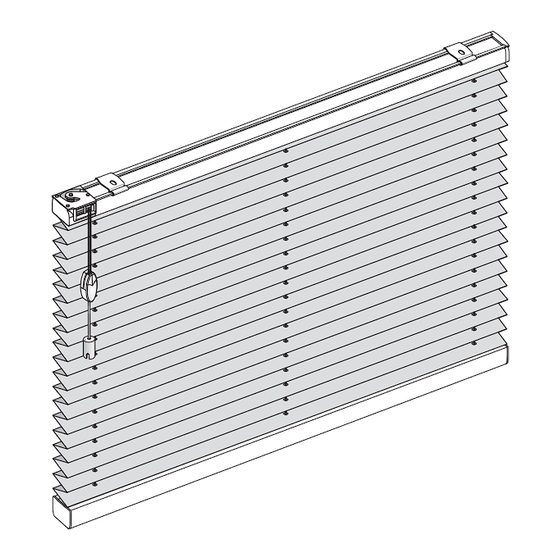

Pleated blinds with side guide

Installation and Operating Instructions

PLEATED BLINDS

11-8110

Clip bracket with rawbolt

or footplate

Attention: When using tools (ladders, drilling machines, etc.) for installation and maintenance of our products, always follow safety instructions

of the manufacturer.

* With safety tassel and cord hook for child safety (included in standard delivery), see p. 5

Subject to technical changes, Edition 11.2016

Wall bracket

with side guide

Please observe the required minimum distances from

our sales documents. Especially in case of pleated

blinds with DUETTE Fixé fabrics.

Bracket

Special accessories:

wedge or clip for slanting

glazing beads

Wall bracket

Table of Contents

Need help?

Do you have a question about the 11-8110 and is the answer not in the manual?

Page 1 Installation and Operating Instructions PLEATED BLINDS 11-8110 with side guide Special accessories: wedge or clip for slanting glazing beads Please observe the required minimum distances from our sales documents. Especially in case of pleated ® blinds with DUETTE Fixé fabrics.
Page 2 Pleated Blinds Bracket installation Glazing Frame Bracket Glazing bead (front) bead pre punch pre punch pre punch * With safety tassel and cord hook for child safety (included in standard delivery), see p. 5 Subject to technical changes, Edition 11.2016...
Page 3 Pleated Blinds Side guide installtion Glaslei Glazing Glasleiste bead entre 90° ø 4 mm 5 mm pretension Frame Brackets Glazing bead pre punch anti rotation lock pre punch 6 , 5 Tension is set by factory retension if necessary Subject to technical changes, Edition 11.2016...
Page 4 Pleated Blinds Operation Subject to technical changes, Edition 11.2016...
Page 5 Pleated Blinds Installation child safety tassel Installation cord hook Position Positioning Safety tassel for child safety Please note: After operation the pull cord and safety tassel must be wrapped around close trigger the cord hook. 60 mm > 6 kg verschließen The safety tassel for child safety comes pre-installed on the cord.
Page 6 Warning notice in accordance with DIN EN 13120 Export department MHZ Hachtel GmbH & Co. KG . P.O. Box 80 05 20 . D-70505 Stuttgart . Germany Phone 0711/97 51-0 . Fax 0711/ 97 51-4 11 50 . www.mhz.de · export@mhz. de...
