Summary of Contents for Blizzard AtmosFEAR Big Bad Lo Fo

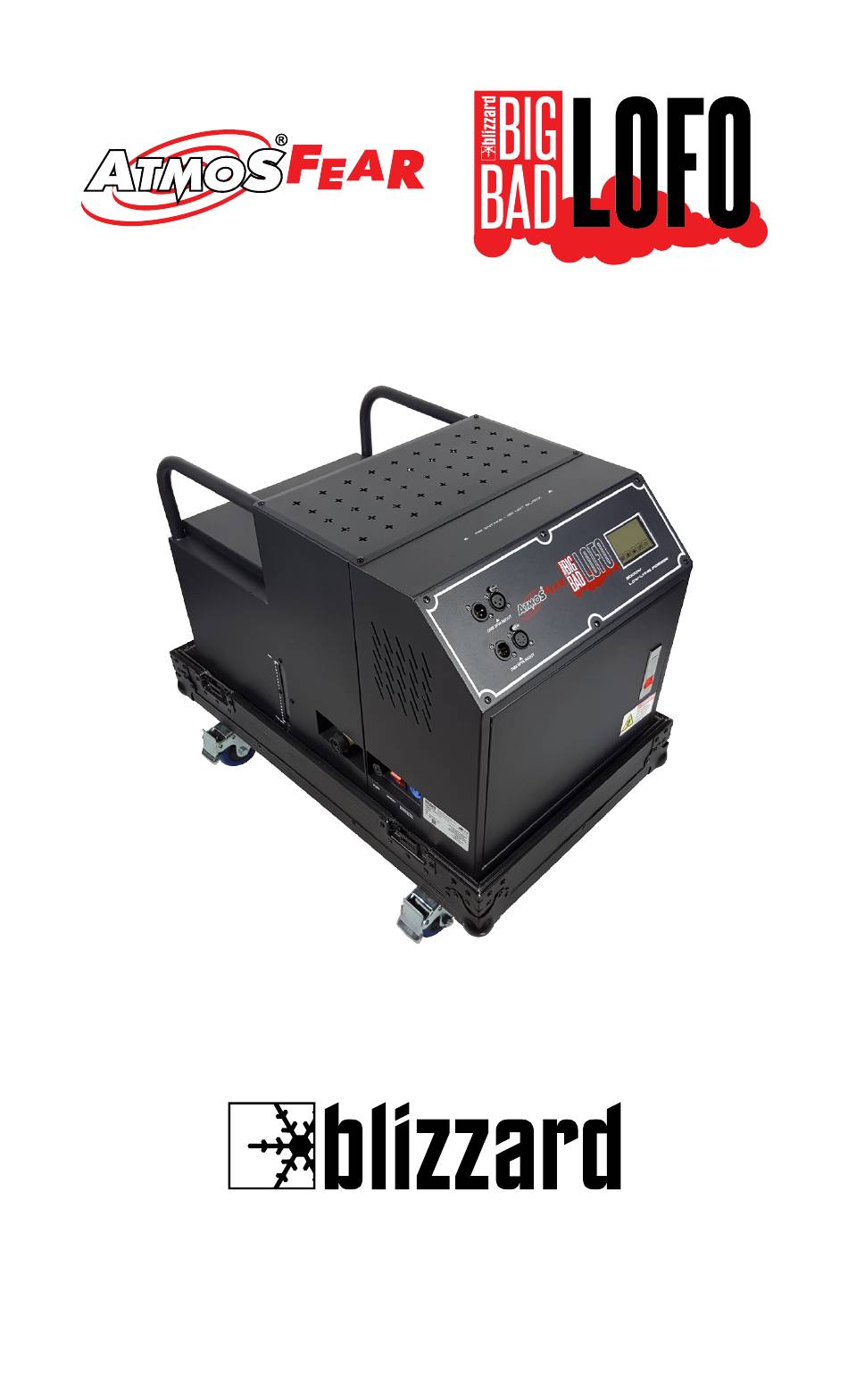

  • Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2018...
  • Page 2: Getting Started

    Disclaimer: The information and specifications contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time.
  • Page 3: Safety Instructions

    In the unlikely event your unit may require service, please visit our support website at: www. blizzardlighting.com/support. Page 3 Big Bad Lo Fo Manual - Rev. A (c) 2018 Blizzard Lighting, LLC...
  • Page 4: What It Does

    Fog emission off 128 <--> 255 Fog emission on 000 <--> 255 Fan speed (0% <--> 100%) 000 <--> 255 Fog volume setting (0% <--> 100%) Page 4 Big Bad Lo Fo Manual - Rev. A (c) 2018 Blizzard Lighting, LLC...
  • Page 5: Initial Setup

    20in (50cm) open space around the machine. Step 2: Fill the fluid tank with quality water-based, non-toxic fog fluid. For best per- formance, we recommend using Blizzard Lighting’s own Steam™ fog fluid products. Step 3: Fill the water tank manually, or via the water inlet connection.
  • Page 6: Water Drainage

    Remote Control Start Fog Stop Fog Increase Fog Decrease Fog Output Output Page 6 Big Bad Lo Fo Manual - Rev. A (c) 2018 Blizzard Lighting, LLC...
  • Page 7: Fuse Replacement

    Step 3: Connect others in the chain from output to input as above. Place a DMX terminator on the output of the final unit to ensure best communication. Page 7 Big Bad Lo Fo Manual - Rev. A (c) 2018 Blizzard Lighting, LLC...
  • Page 8: Operating Adjustments

    From left to right: Remote / Fault of Sensor / Fault of Heater / Lack of Fluid *The above warning icons will only appear on the menu when there is a fault. Page 8 Big Bad Lo Fo Manual - Rev. A (c) 2018 Blizzard Lighting, LLC...
  • Page 9: Control Panel Menu Structure

    1. Press <MENU> repeatedly until Fan Speed flashes on the display. 2. Use <UP/DOWN> select a total speed percentage (1%–100%). 3. Press the <ENTER> button to confirm. Page 9 Big Bad Lo Fo Manual - Rev. A (c) 2018 Blizzard Lighting, LLC...
  • Page 10: Cleaning Instructions

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 10 Big Bad Lo Fo Manual - Rev. A (c) 2018 Blizzard Lighting, LLC...
  • Page 11: Tech Specs

    Fluid Consumption 1h/L Output Hose 2x10 FT Control Protocol USITT DMX-512 DMX Channels 3-channel Input 3/5-pin XLR Male Output 3/5-pin XLR Female Warranty 1-year limited warranty Page 11 Big Bad Lo Fo Manual - Rev. A (c) 2018 Blizzard Lighting, LLC...
  • Page 12 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
