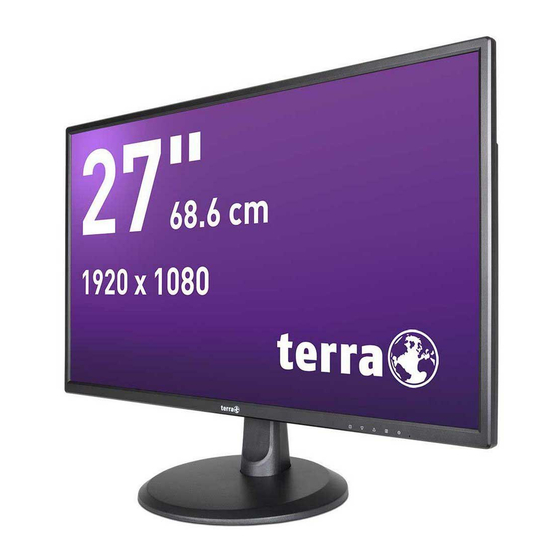

Wortmann TERRA LED 2747W User Manual

Lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

LCD/LED 2747W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TERRA LED 2747W and is the answer not in the manual?

Questions and answers

Related Manuals for Wortmann TERRA LED 2747W

Summary of Contents for Wortmann TERRA LED 2747W

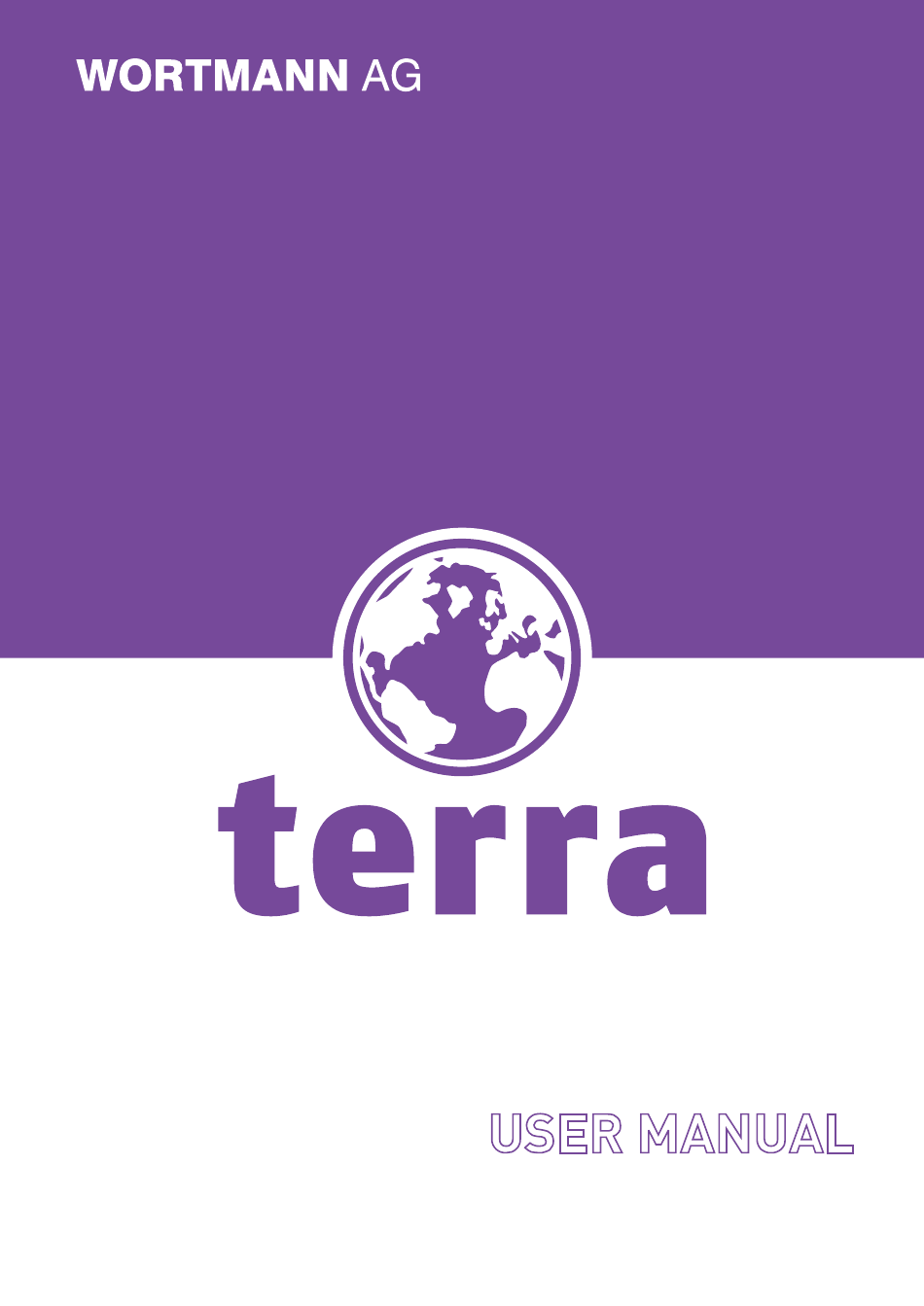

  • Page 1 LCD/LED 2747W...

  • Page 2: Table Of Contents

    Safety Precautions and Maintenance Basic setup Screen image setups Functions BRIGHTNESS IMAGE English COLOR TEMP. OSD SETTING RESET MISC Installing the LED Monitor Supporting Timing Modes Troubleshooting SPECIFICATIONS...

  • Page 3: Safety Precautions And Maintenance

    English Safety Precautions and Maintenance Read this manual carefully and retain for future reference 1. Unplug the monitor before cleaning it with a slightly damp cloth. 2. Wiping the screen with a dry cloth is recommendable, and only during the power has been switched off.

  • Page 4: Basic Setup

    English Basic setup a) Connect a DVI cable or HDMI cable to the PC (signal output) and to the monitor. Audio connector HDMI connector AC IN (C5) DVI connector b) The monitor has a wide power voltage range; it can be used on AC100-240V~ 60/50Hz power supply.

  • Page 5: Functions

    English Functions BRIGHTNESS Press button the main menu will appear as follows: Press △ / ▽ button to select BRIGHTNESS in the main menu, then press button to enter. BRIGHTNESS BRIGHTNESS CONTRAST PICTURE MODE STANDARD ：EXIT ：SELECT BRIGHTNESS Press △ / ▽ button to select BRIGHTNESS, then press button confirmation choice and press △...

  • Page 6: Color Temp

    English IMAGE ASPECT WIDE ：EXIT ：SELECT ASPECT Press △ / ▽ button to select ASPECT, then press button confirmation choice and press △ / ▽ button to select WIDE or 4:3. COLOR TEMP. Press △ / ▽ button to select COLOR TEMP. in the main menu, then press button to enter.

  • Page 7: Osd Setting

    English GREEN When you choose the USER Press △ / ▽ button to select GREEN, then press button to adjust the value of the three primary colors of green. BLUE When you choose the USER Press △ / ▽ button to select BLUE, then press button to adjust the value of the three primary colors of blue.

  • Page 8: Reset

    English OSD H. POS. Press △ / ▽ button to select OSD H. POS. then press button confirmation choice and Press △ button OSD toward the right direction. Press ▽ button OSD toward the left direction. OSD V. POS. Press △ / ▽ button to select OSD V. POS. then press button confirmation choice and Press △...

  • Page 9: Misc

    English MISC Press △ / ▽ button to select MISC in the main menu, press button to enter. MISC SIGNAL SOURCE HDMI VOLUME AUDIO INPUT DIGITAL 1920X1080 60Hz ：EXIT ：SELECT SIGNAL SOURCE Press △ / ▽ button to select SIGNAL SOURCE, then press button confirmation choice and press △...

  • Page 10: Installing The Led Monitor

    English OSD UNLOCKED OSD LOCKED Then press [ 1 ] key long-term to unlock Press [ ] key long-term to lock the the OSD POWER UNLOCKED POWER LOCKED Then press [ ] key long-term to Press [ ] key long-term to lock the unlock the power button power button Installing the LED Monitor...

  • Page 11: Supporting Timing Modes

    English Supporting Timing Modes Standard Resolutions DVI-D HDMI √ √ 640x480@67Hz √ √ VESA 640x480@72Hz √ √ VESA 640x480@75Hz √ √ VESA 800x600@56Hz √ √ VESA 800x600@60Hz √ √ VESA 800x600@72Hz √ √ VESA 800x600@75Hz √ √ VESA 1024x768@60Hz √ √...

  • Page 12: Troubleshooting

    English Troubleshooting 1. NO Image on Screen a) Check if the power button has been switched on. b) Verify the brightness and contrast of the monitor is within the normal setting. c) Check the power indicator is orange. If so this indicates that the monitor is not receiving the input signal.

  • Page 13: Specifications

    English SPECIFICATIONS: Dimension 27” Monitor type Brightness 300 cd/m² Color 16.7M Resolutions 1920X1080@60Hz Power requirement 100-240V ~ 60/50Hz Power consumption <22W DVI-D DVI Digital Input HDMI HDMI Ver1.4 Connector connector Audio Input 3.5mm stereo Jack Operation Temp:0°C ~ 40°C Humidity: Less than 80% Environment Storage Temp: -20°C ~ 60°C...
  • Page 14 Pour plus d'information sur le recyclage, veuillez contacter votre centre de recyclage agréé. Votre attitude quand au recyclage améliorera l'avenir de la planète et créera un environnement de vie de qualité pour les générations futures. Wortmann AG Bredenhop 20 D-32609 Hüllhorst Tel.
  • Page 15 License and to the absence of any warranty; and give any other recipients of the Program a copy of this WORTMANN AG License along with the Program.
  • Page 16 with a work based on the Program) on a volume of a storage or distribution medium does not 10. If you wish to incorporate parts of the Program into other free programs whose distribution bring the other work under the scope of this License. conditions are different, write to the author to ask for permission.
  • Page 17 www.wortmann.de...
