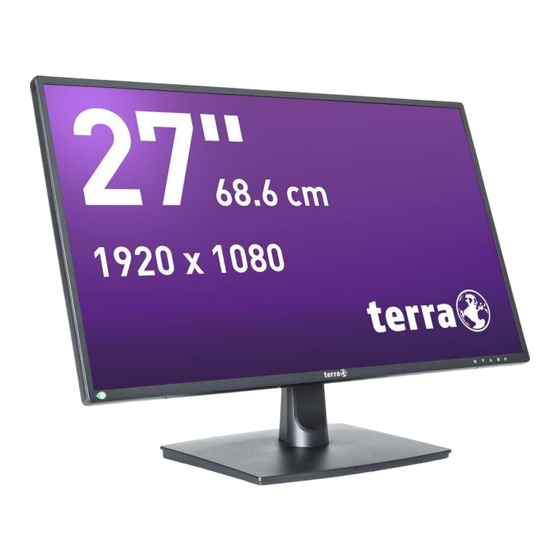

- Page 1 LCD/LED 2756W USER MANUAL + GERMAN + ENGLISH + FRENCH + SPANISH + ITALIAN + RUSSIAN + P O L I S H...
- Page 2 Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. This monitor has been tested and found compliant with the CE mark. These limits are designed to provide proper protection against harmful interference to a residential installation.
-
Page 3: Table Of Contents
Content Safety Precautions ....................... 1 First Setup ........................... 2 Quick Installation ......................... 3 Installing the LCD Monitor ....................4 Front View of the Product ....................5 Rear View of the Product ..................... 6 Using On Screen Display (OSD) Functions ................. 7 Supporting Timing Modes .................... -
Page 4: Safety Precautions
Pay attention to all cables connected to the monitor against stumble hazards. According to WEEE regulation, this monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information from our website to handle it. www.wortmann.de... -
Page 5: First Setup
First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories: AC Power cord ● DisplayPort cable Audio cable ● Quick start guide Warranty card ... -
Page 6: Quick Installation
Quick Installation 1. Connect Video cable (DisplayPort cable) Make sure both monitor and computer are powered OFF. Connect the DisplayPort cable from DisplayPort output of computer to the DisplayPort input of the monitor. Or connect HDMI cable *Optional Connect the HDMI cable from HDMI output of computer to the HDMI input of the monitor. -
Page 7: Installing The Lcd Monitor
Installing the LCD Monitor Installing the Stand Base 1. Place the monitor face down on a soft cloth or cushion on a table. 2. Install the stand base to the monitor. Disconnecting the Stand Base 1. Place the monitor face down on a soft cloth or cushion on a table. 2. -
Page 8: Front View Of The Product
Front View of the Product ❶ ❷ ❸ ❹ ❺ ❻ OSD Menu On/Off ❶ Scroll Down/ Decrease ❷ Scroll Up/ Increase ❸ Confirm Select ❹ Power ON/OFF ❺ LED Indicator ❻... -
Page 9: Rear View Of The Product
Rear View of the Product ❶ ❷ ❸ ❹ ❺ ❻ Power input ❶ DisplayPort input ❷ DVI input ❸ HDMI input ❹ Audio input ❺ Earphone output Note: Adjustment of the volume control to other settings than the ❻ center position may increase the ear-/ headphones output voltage and therefore the sound pressure level. -
Page 10: Using On Screen Display (Osd) Functions
Using On Screen Display (OSD) Functions Display main menu Exit from OSD menu Manual adjust mode select for DVI, HDMI, DISPLAYPORT mode Confirm the Select Select the desired item when in OSD menu ▼ When not in OSD menu, directly enters Contrast/Brightness menu Select the desired item when in OSD menu ▲... - Page 11 Brightness: To adjust the luminance of the video. ▲: increase brightness, ▼: decrease brightness. DCR: To detect the distribution of the visual signals inputs, and create an optimized contrast. Brightness and ECO Mode adjustment disabled when DCR is active. Press 2 key to adjust the DCR On or Off. ECO Mode: Allows the user to turn the ECO Mode On or Off.
- Page 12 Manual Image Adjust: To manually adjust the Sharpness and Video Mode Adjustment. Sharpness: To adjust the clarity of a non-Full HD Resolution (1920x1080) signal with ▼ or ▲ button. Video Mode Adjustment: To select the video mode from 4:3 or Full Screen. ...
-
Page 13: Supporting Timing Modes
Supporting Timing Modes 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA... -
Page 14: Technical Information
Technical Information Technical Specification LCD Panel 68.58 cm (27″) VESA DPMS compatible Power Management Off Mode, ≤ 0.3 W Full HD 1920 x 1080 max. Displayable Resolution Vertical Frequency 60Hz max. Pixel Dimension 0.3114 x 0.3114 mm 16.7M LCD Display Color Active Display Area 597.888 mm x 336.312 mm Operating: 0°C ~ + 40°C... -
Page 15: Care And Maintenance
Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place any heavy things on top of your monitor. ... - Page 16 Pour plus d'information sur le recyclage, veuillez contacter votre centre de recyclage agréé. Votre attitude quand au recyclage améliorera l'avenir de la planète et créera un environnement de vie de qualité pour les générations futures. Wortmann AG Bredenhop 20 D-32609 Hüllhorst Tel.
- Page 17 License and to the absence of any warranty; and give any other recipients of the Program a copy of this WORTMANN AG License along with the Program.
- Page 18 with a work based on the Program) on a volume of a storage or distribution medium does not 10. If you wish to incorporate parts of the Program into other free programs whose distribution bring the other work under the scope of this License. conditions are different, write to the author to ask for permission.
