- Page 2 Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Contents Safety Precautions ................1 First Setup ..................2 Quick Installation ................2 Front View of the Product ..............3 Rear View of the Product ..............3 Using On Screen Display (OSD) Functions........4 Supporting Timing Modes ..............7 Technical Information................8 Care and Maintenance ............... -
Page 4: Safety Precautions
Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. -
Page 5: First Setup
First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories : Power cable Audio cable D-Sub cable (15 pin) User’s guide Warranty Card Quick Installation 1. Connect power cord Connect the power cord to a properly grounded AC outlet, then to the monitor. 2. -
Page 6: Front View Of The Product

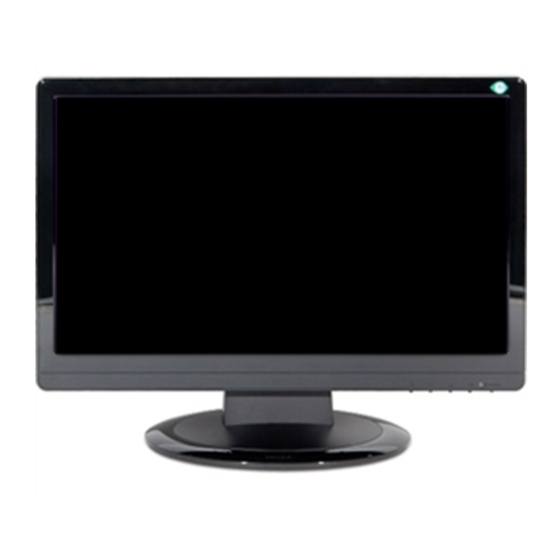

Front View of the Product OSD Menu On/Off CONFIRM SELECTION OSD SCROLL DOWN/DECREASE POWER ON/OFF SCROLL UP/INCREASE LED INDICATOR Rear View of the Product POWER INPUT VGA INPUT (D-SUB 15 PIN) ... -
Page 7: Using On Screen Display (Osd) Functions
Using On Screen Display (OSD) Functions Display main menu. Exit from OSD menu. Auto adjust the image when not in OSD menu. Confirm the selection. ▲ Select the desired item when in OSD menu. Select the desired item when in OSD menu. ▼... - Page 8 Short Cuts Function from the button(s) Auto Image Adjust : To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen. Contrast : To adjust the foreground white level of screen image. ▲ ▼ : increase contrast, : decrease contrast.
- Page 9 Fine Tune : To adjust the delay time of data and clock. ▲ ▼ Press to adjust to your preference. Sharpness : To adjust the clarity of a non-WXSGA+ (1366x768) signal ▼ ▲ with button. Aspect Ratio: To select 4:3/16:9 image size. Setup Menu : To set up Language Select, OSD Position, OSD Time Out, and OSD Background.
-
Page 10: Supporting Timing Modes
Supporting Timing Modes VESA 720 x 400 @ 70Hz VESA 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA 800 x 600 @ 75Hz 832 x 624 @ 75Hz... -
Page 11: Technical Information
Technical Information Technical Specification LCD Display 18.5” TFT Power Management Off Mode, <0.5W Pixel size 0.3x 0.3 mm Display Colours 16.7M (6bits + Hi FRC) Tilt 0°~20° Active Display Area 409.8 mm x 230.4 mm Operating: 0°C ~ +40°C Temperature Storage: -20°C ~ + 60°C Compliance CE, WEEE... -
Page 12: Care And Maintenance
Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place any heavy things on top of your monitor. Make certain your monitor is installed in a clean and moisture-free area. - Page 13 Votre attitude quand au recyclage améliorera l'avenir de la planète et créera un environnement de vie de qualité pour les générations futures. Wortmann AG Bredenhop 20 D-32609 Hüllhorst Tel. +49 (0) 5744 / 944-0 Fax +49 (0) 5744 / 944-444 www.wortmann.de...
