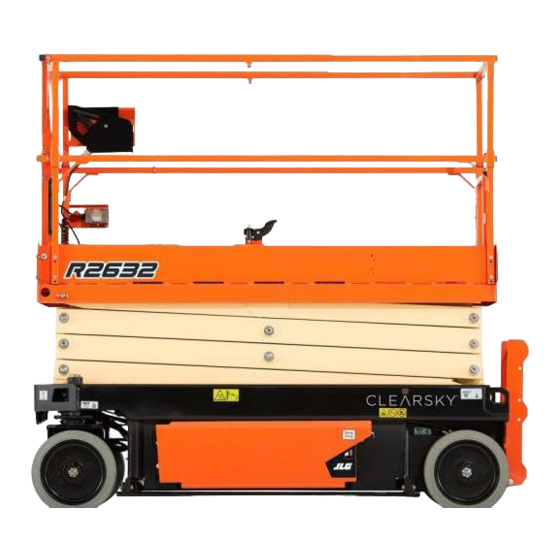

JLG 2632R Operation And Safety Manual
  1. Manuals
  2. Brands
  3. JLG Manuals
  4. Scissor Lifts
  5. 2632R
  6. Operation and safety manual

JLG 2632R Operation And Safety Manual

Hide thumbs Also See for 2632R:
Table of Contents

Advertisement

Quick Links

Download this manual
Operation and Safety Manual
Original Instructions - Keep this manual with the machine at all times.
Models
2632R
3246R
3121787
AS/NZS
GB
ANSI
®
May 2, 2019 - Rev C
