Tally Dascom DL-820

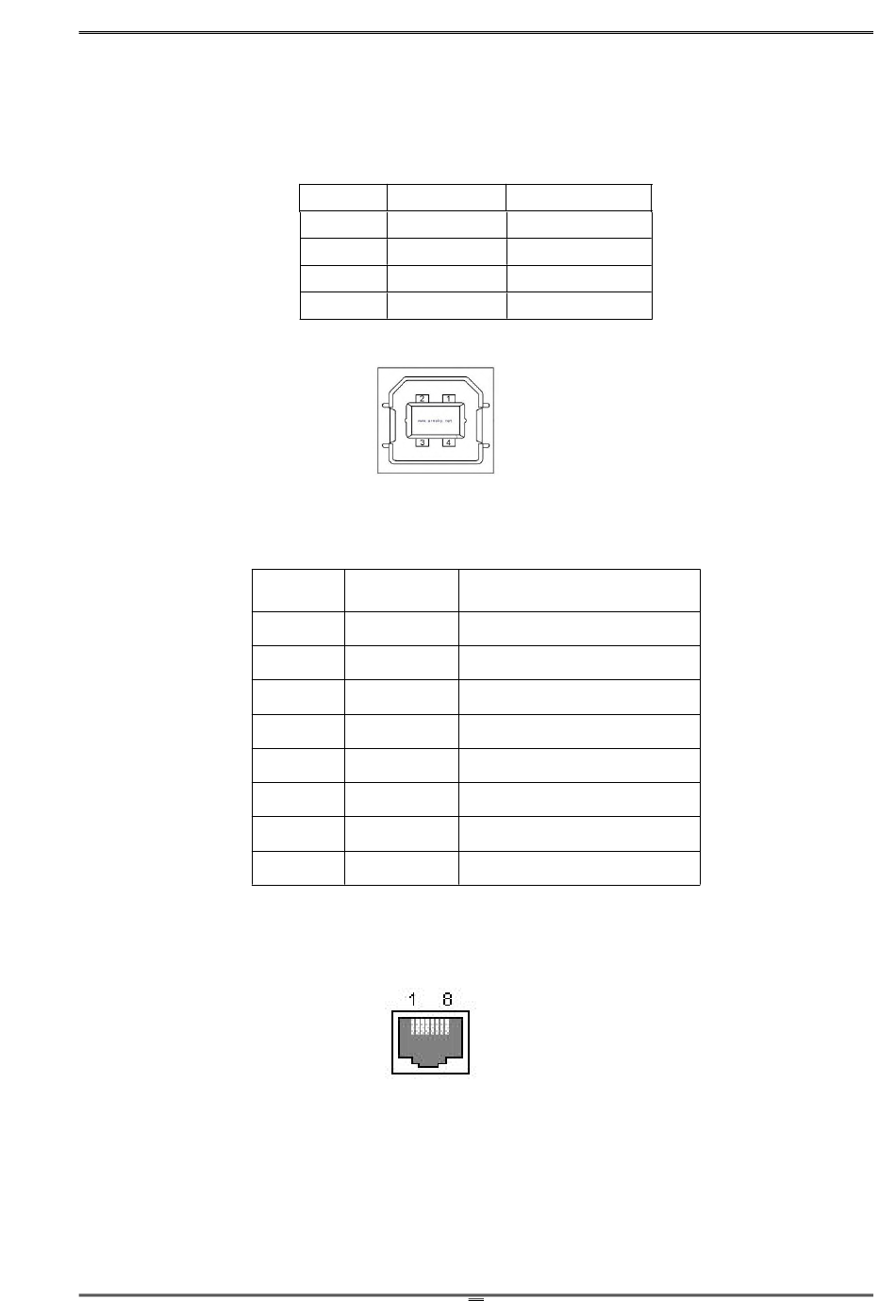

Chapter 6 Interface Specifications
6.1 USB
USB Pin Assignment：
USB B Female Connector:
6.2 Ethernet
Pin Assignment
RJ-45 Connector:
Pin
Signal Name
1
VBUS
2
D-
3
D+
4
GND
Signal
Pin
Name
1
TX+
2
TX-
3
RX+
4
n/c
5
n/c
6
RX-
7
n/c
8
n/c
Color
Red
White
Green
Black
Description
Transmit Data+
Transmit Data-
Receive Data+
Not connected
Not connected
Receive Data-
Not connected
Not connected
45
User Guide V1.0
