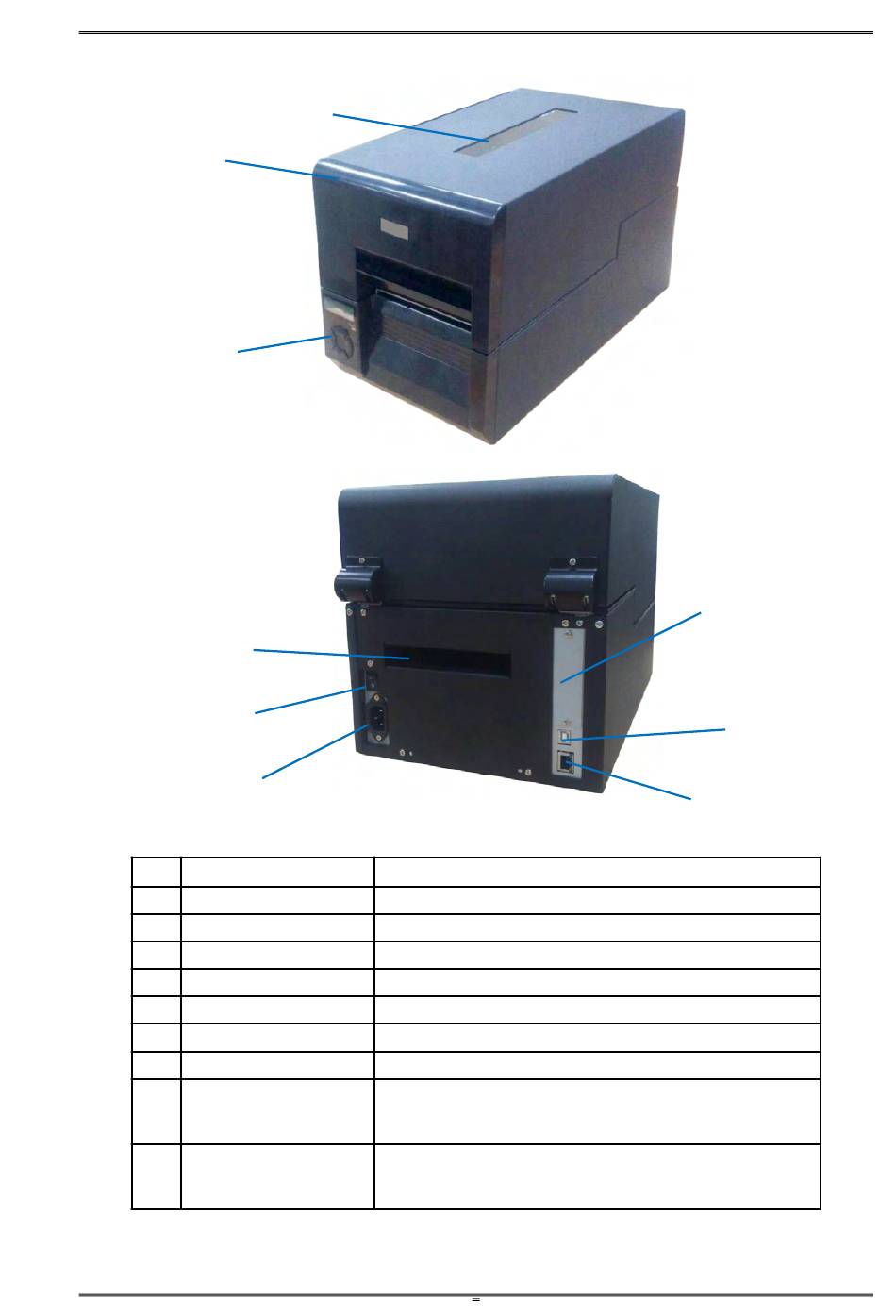

1.7 Key components

2
3
4
6
5
No. Part Names
1 Transparent Window
2 Top Cover
3 Control Panel
4 Rear Slot
5 Power Socket
6 Power Switch
7 USB Interface
8 LAN Interface
Optional interface:
9
parallel
1
Descriptions
Observe quantity of remained media.
Open to replace media or ribbon.
Configure the parameters and check the settings.
An opening to load fanfold media
Socket for detachable power cord.
Turn on and off the printer
USB connection to PC (ex-factory standard interface)
LAN connection to the server (ex-factory standard
interface)
Optional interface to the PC. (Ordered separately)
8
