Tally Dascom DL-820
4
5

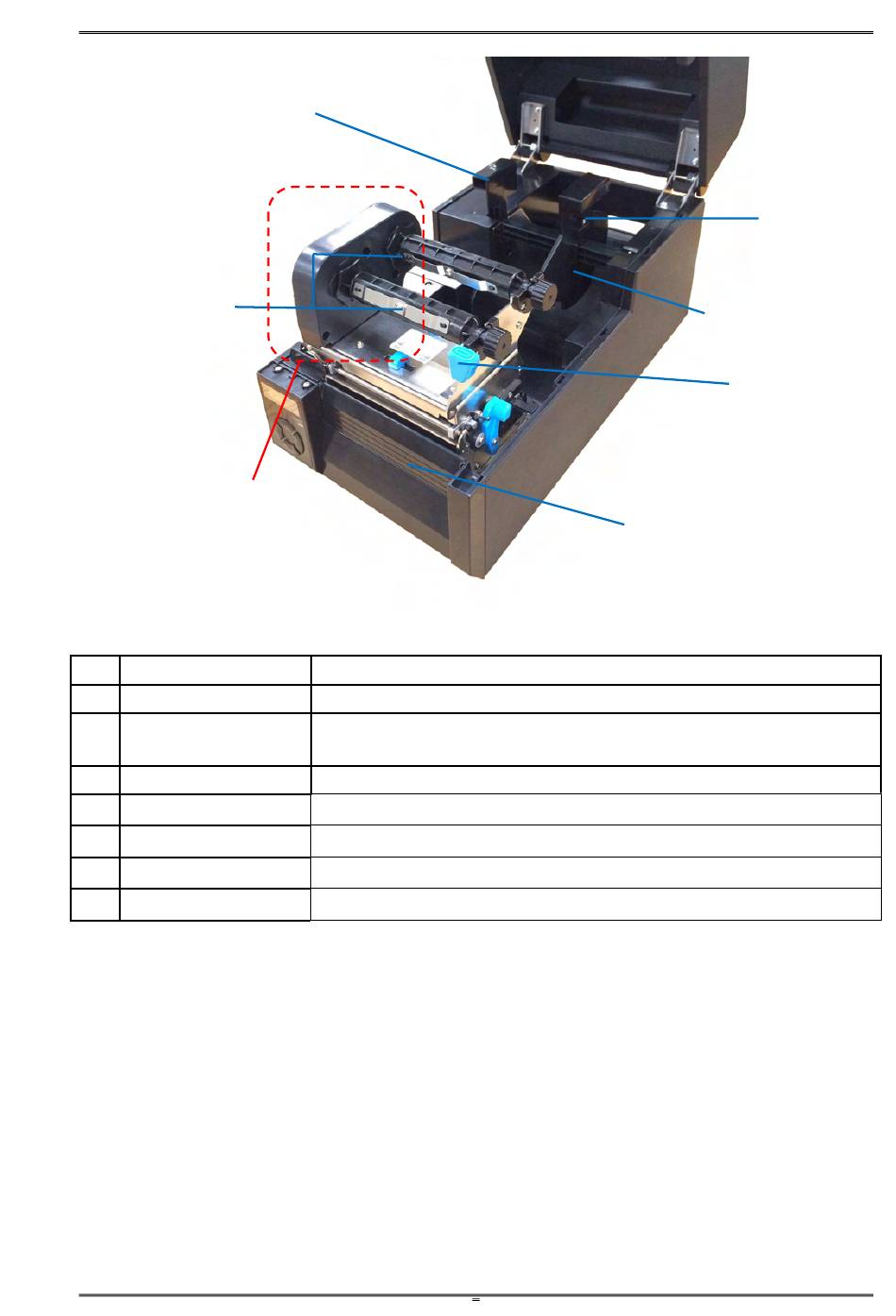

No. Part Names
1 Media Holder
2 Media Width Adjuster
3 Media Compartment
4 Ribbon Spindles
5 Ribbon Drive Module
6 Engage Handle
7 Front Cover
1
Descriptions
With the Media Width Adjuster, they hold the media roll in position.
Adjust it along the shaft of the Media Holder to match the width of the
media.
Generous space for media roll.
One to supply and the other to rewind the ribbon.
The mechanism to supply and rewind the ribbon.
Press it to latch the print head/ribbon module in place.
To be removed if optional cutter or label peeler is installed.
9
User Guide V1.0
2
3
6
7
