Unpacking the delivery and preparing the module for
installation
The drive module delivery includes several boxes. The cartons on top of the main module
box contain selected options (shrouds, etc., if ordered). The external control unit is in a
separate box inside the main module box. Complete the instructions below to remove the
cover plate and the control cable bundle from the drive, before you remove the drive
module from the packing carton.
1. Cut the straps and remove the upper carton box.
2. Remove the top of the lower carton box to get access to the control unit and its cabling
(still connected to the module).
3. Before you remove the module from the package, do these steps:

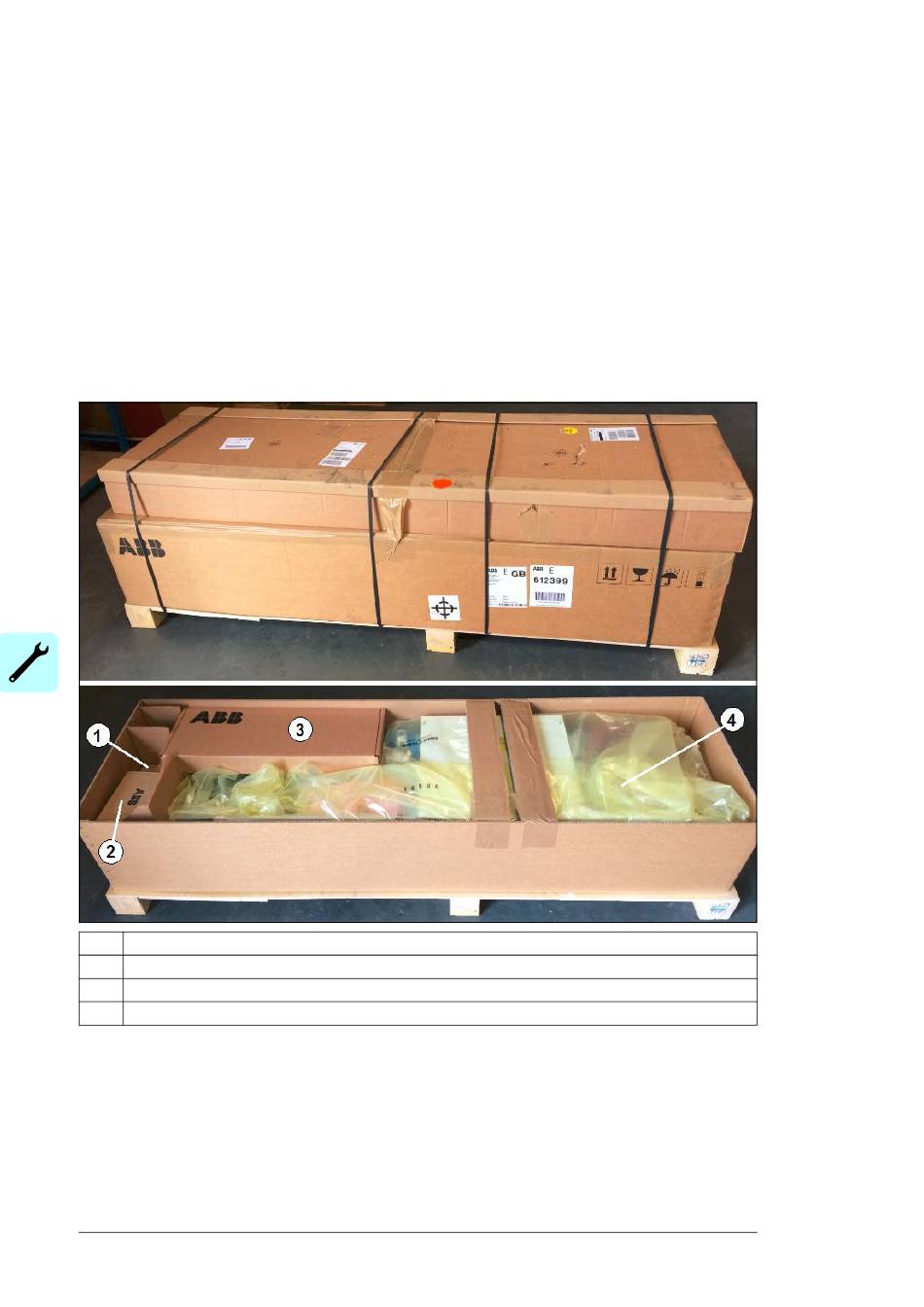

1 External control unit (+P906)
2 Control panel mounting platform (+J410)
3 Ramp
4 Control cables connected to the drive module
•
a) Remove the additional boxes and fold back the plastic to show the main drive
module. The control cables are delivered connected to the drive module for safe
