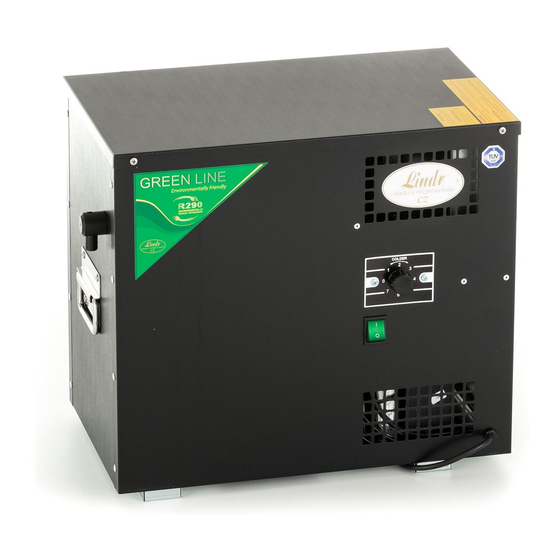

Summary of Contents for LINDR AS-80

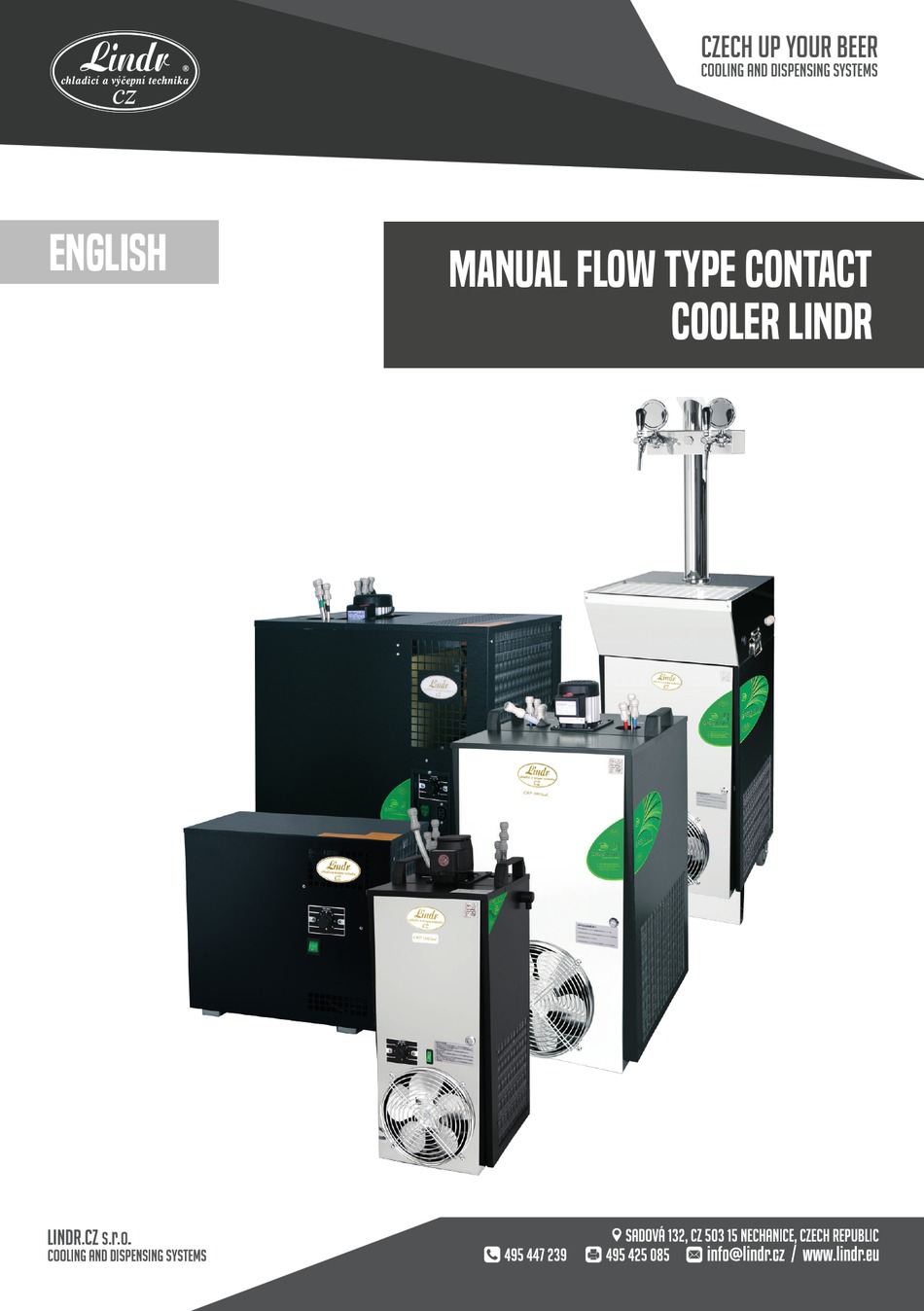

  • Page 1 CZECH UP YOUR BEER COOLING AND DISPENSING SYSTEMS english manual FLOW TYPE CONTACT COOLER LINDR...
  • Page 2 CAUTION: Before any intervention on the Introduction: device, eg cleaning and machine maintenance, Thank you for purchasing a Lindr product. ALWAYS disconnect the appliance from the This instruction manual is for models: AS - 40, AS - 80, AS - 110 GL, AS-110 INOX electrical supply: set the thermostat to the „O“...
  • Page 3 The cooling tank (No. 11) Service-spare parts, required revisions and MUST be filled with clean water without inspections are carried out by LINDR. chemical treatment until the overflow. The machine achieves optimal...
  • Page 4 Description of the device: 1. recirculation pump 8. cover of the electro panel 2. inlet of the beverage 9. evaporator 3. outlet of the cooled beverage 10. cooling coil 4. fan 11. plastic tank 5. suction propeller 12. motor compressor 6.
  • Page 5 AFTER THE CONNECTION CHECK IF ALL THE JOINTS ARE PROPERLY SEALED. Placement of the thermostat: Model AS has a mechanical thermostat located on the front of the cooler. See picture THERMOSTAT Model CWP See picture THERMOSTAT FLOW TYPE CONTACT COOLER LINDR ˇ...
  • Page 6 Temperature and setting: 0= switched off The temerature of cooled beverages is controlled by the mechanical thermostat between 2 °C - 8 °C, which monitors the temperature of water bath (position 1-5), ort he ice bank creation (4-45kg depending on the type of product) (position 6-7).
  • Page 7 TM Desana solution, and always after a minimum of fourteen days. Cleaning of the condenser: By pulling upwards you will remove the fan cover (No.6) from metal slides. fan cover direction of pulling FLOW TYPE CONTACT COOLER LINDR ˇ...
  • Page 8 fan cover Take off the fan cover (No. 6) condenser 3.1. Unscrew the fastening screws from the cooler on the side where the condenser is placed. (picture 3.1 and 3.2.) 3.2. First, pull out the loosen cover about 3 cm in a upward direction (picture 4.1.), then pull to the side (pic.
  • Page 9 Reduse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of household appliances in local outlets or the point of purchase. FLOW TYPE CONTACT COOLER LINDR ˇ...
  • Page 10 Connection A: AS - 40 (coil 2x) pressurizing CO2/ N2 1. Beverage inlet 10. Plastic fitting JG straight 12.7 x 8 mm 2. Beverage outlet (the beverage runs 11. Plastic fitting for pressure reducer through the python tubing No.11 JG F7 / 16 x 8 mm illustration) 12.
  • Page 11 10. Plastic fitting JG SS 9.5 x 8 mm (4x) 11. Plastic fitting JG straight 12.7 x 8 mm (2x) 12. Python 13. Plastic fitting for pressure reducer JG F7 / 16 x 8 mm FLOW TYPE CONTACT COOLER LINDR ˇ...
  • Page 12 Maintenance: Cleaning with water (using a cleaning adapter): After each use, rinse the beverage tube with Connect the cleaning adapter to the water pressured water (see Sanitation with water supply using the hose. below). For easier sanitation use a sanitary CAUTION! adapter according to the type of your keg coupler.
  • Page 13 Place the dispense tap in it´s original position (on the cooler) and perform the sanitation. Sanitizing ball will stops in the body of the dispense tap. Remove the ball ! Sanitizing ball FLOW TYPE CONTACT COOLER LINDR ˇ...
  • Page 14 problem cause how to fix it machine is too noisy the machine is in contact with move the object that touches the some other object machine in a way so that it´s not in contact with a cooling machine There is an other object in fan area remove the object from fan area machine is not functioning the power cord is not plugged in...
  • Page 15 FLOW TYPE CONTACT COOLER LINDR ˇ...
  • Page 16 FLOW TYPE CONTACT COOLER LINDR ˇ...
