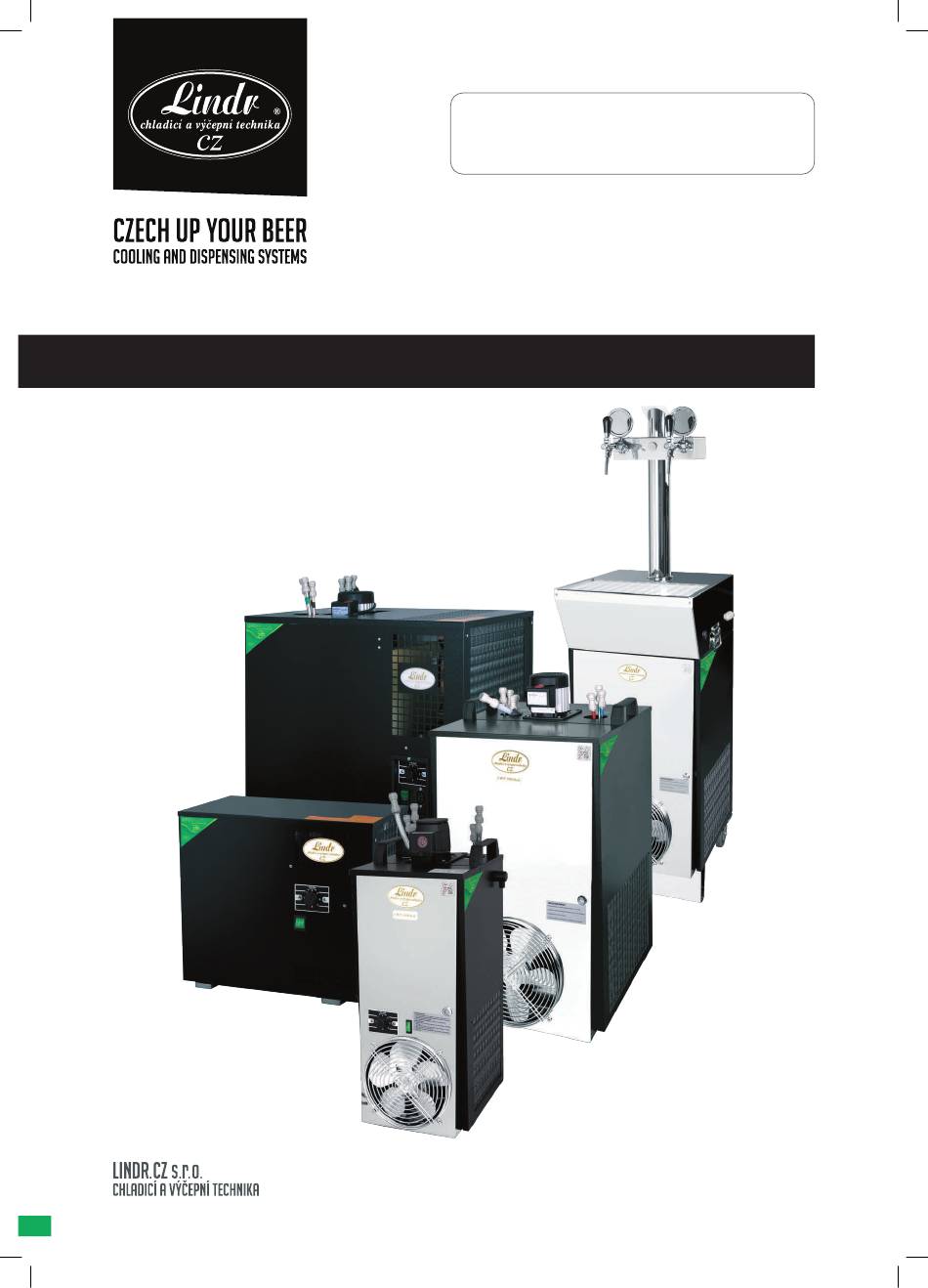

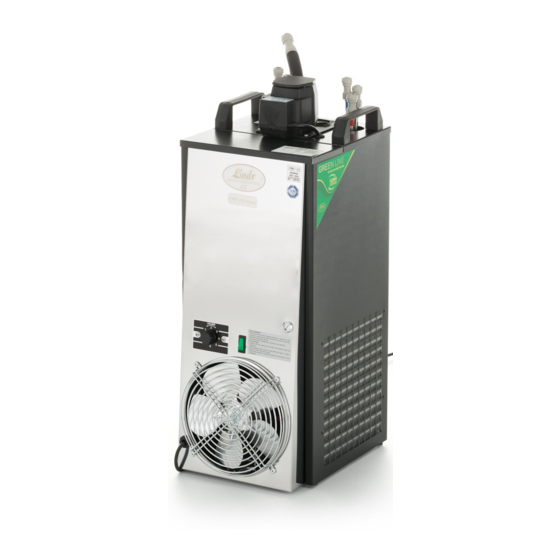

- Page 1 INSTRUCTION MANUAL WATER COOLERS LINDR ENGLISH Number 017-2020 REV00 Valid 2020-08-01...
- Page 2 Sadová 132 503 15 Nechanice, Czech Republic mob.: + 420 775 715 494 tel. : +420 495 447 239 e-mail: info@lindr.cz web: www.lindr.cz, www.lindr.eu SYMBOLS AND MARKINGS USED IN THE MANUAL: WARNING: NOTE: Not following instructions may cause injury or This symbol indicates information and re- damage the device.
-
Page 3: Table Of Contents
Contents: Introduction ........Description of the cooler ........Machine plate . -
Page 4: Introduction
1. INTRODUCTION: ered impermissible and therefore dangerous. The supplier is not liable for damage caused Thank you for purchasing this LINDR product. by incorrect use. 2. DESCRIPTION OF THE COOLER: DO NOT USE THE DEVICE FOR PURPOSES OTHER THAN THOSE STATED BY THE MANU-... -
Page 5: Installation And Placement
WARNING: Never place tools or other ob- ject into the fan. WARNING: After unpacking, place the coo- ler so that heat created by the cooling unit can WARNING: Never touch electrical compo- be vented sufficiently. nents with wet or damp hands. WARNING: Do not place objects that could WARNING: To ensure the cooling unit prevent air circulation on top of the cooler. - Page 6 Clerances, mm (inch) Rear Right Side Left Side Front (7,87) (7,87) (7,87) (20) (7,87) obrázek obrázek...
-
Page 7: Electrical Connection
6. ELECTRICAL CONNECTION: per handling, incorrect storage or by using the product in a way that is counter to the instructi- Connect the device to a power socket in ac- on manual or the product‘s design as defined cordance with specifications on the machine by the manufacturer. - Page 8 9.2 Model series AS 80, 110, 160, 200: 1. Overflow 7. Cooling coil 2. Inlet of the beverage 8. Condenser 3. Recirculation pump 9. Motor compressor 4. Outlet of the cooled beverage 10. Thermostat 5. Plastic tank 11. Main switch 6.
-
Page 9: Pouring Fluid Into The Tank
9.4 Model series CWP 200 mobile, CWP 300 mobile, CWP 300/K profi mobile: 1. Dispense tower 6. Plastic tank 2. Thermostat 7. Fan 3. Main switch 8. Condenser 4. Inlet of the beverage 9. Motor compressor 5. CO2 inlet figure figure 10. -
Page 10: Beverage Supply Connection And Pressurisation
WARNING: Before starting, fill the tank with clean water up to the overflow. Do not use any chemicals, as this could damage the cooling system. An ecological antifreeze mixture based on propylene glycol can be used for cooling to temperatures below freezing. WARNING: Check the connection of the pump outlet, if it is not connected, water will spray from the pump outlet after switching on the device. - Page 11 11.2 Connection and Pressurisation AS - 80 (coil 2x), C02/ N2 1. Beverage inlet 8. CO2 pressure reducing valve 2. Beverage outlet 9. Beverage 3. Plug for agitator pump 10. JG SS 9.5 x 8 mm (2x) speed fitting 4. Keg coupler (A-system, S-system, M-sys- 11.
- Page 12 11.3 Connection and Pressurisation CWP-200 (coil 4x), C02/ N2 1. Beverage inlet 8. CO2 pressure reducing valve 2. Beverage outlet 9. Beverage 3. Thermostat 10. JG SS 9.5 x 8 mm (4x) speed fitting 4. Keg coupler (A-system, S-system, M-sys- 11.
-
Page 13: Putting Into Operation
WARNING: Check that all joints are sufficiently leak-tight after connection. ATTENTION: For AS models where a stirrer pump is installed, be sure to connect the pump cable to the socket on the cooler. The pump with stirrer ensures an even temperature in the entire water bath and cools the beverage up to the tap. -
Page 14: How To Work With Speed Fittings
13. HOW TO WORK WITH SPEED FITTINGS: 13.1 Speed Fitting Installation: 14 A figure Grasp the speed fitting and insert the hose all the way inside the speed fitting body (ca. 20 mm). The end of the hose must be straight so that it plugs fully into the coupling. -
Page 15: Temperature And Adjustment
15. TEMPERATURE AND ADJUSTMENT: The temperature of the cooled beverage is controlled by a mechanical thermostat in temperature range of 2 °C to 8 °C. The thermostat has a numerical scale of 1-7. 15 C 15 A 15 B figure figure figure 0 = OFF... -
Page 16: Keg Coupler Assembly
17. KEG COUPLER ASSEMBLY: 17.1 Outlet for Keg Pressurisation: Variant of connection with the use of a bushing; the hose is fitted onto the bushing and affixed with a clip. 16 E figure 16 A 16 b figure figure 16 c 16 d figure figure... -
Page 17: Keg Tapping And Untapping
17.2 Outlet for Beverage: Screw an F 5/8“ x 3/8“ (9,5 mm) speed fitting onto the keg coupler. 5/8“-3/8“(9,5mm) 5/8“ - 5/16“ (8mm) 18. KEG TAPPING AND UNTAPPING: WARNING: Make 18.1 Keg Tapping: sure the adapter is clean Procedure for tapping a keg using an S-system keg coupler: before tapping the keg! S-system keg coupler 17 A... - Page 18 18 A 18 B figure figure 18 C figure 18.2 Keg Untapping: Procedure for untapping a keg using an S-system keg coupler: 18 D 18 E figure figure 18 F figure...
- Page 19 18.3 Keg Tapping: Procedure for tapping a keg using an A-system keg coupler: WARNING: Make sure the adapter is clean before tapping the keg! A-system keg coupler 19 A 19 B figure figure 19 C 19 D figure figure 18.4 Keg Untapping: Procedure for untapping a keg using an A-system keg coupler: 19 E 19 F...
-
Page 20: Table Of Malfunctions
19. TABLE OF MALFUNCTIONS Malfunction Cause Removal beverage does not flow keg tapped incorrectly check that the keg coupler lever is pushed down device with built-in compressor - turn on the switch water from sanitation froze turn off the device; then wait until the beverage starts flowing again (may take a few minutes, or hours!) compensator is closed move the compensator lever on the tap... -
Page 21: Spare Parts
Ordering Components ALWAYS USE ORIGINAL COMPONENTS. The manufacturer or supplier bear no responsibility for non-original components or components not recommended by the manufacturer. 20. SPARE PARTS When ordering spare parts, always provide the following: • product type • production year •... -
Page 22: Maintenance
22. MAINTENANCE engineering qualifications. The condenser Flush the beverage tubing of the cooler after must be checked for cleanliness every month. each use with pressurised water (see Sanita- Any dirt found must be cleaned with com- tion by Water). To make flushing easier, use a pressed air or wiped off.
