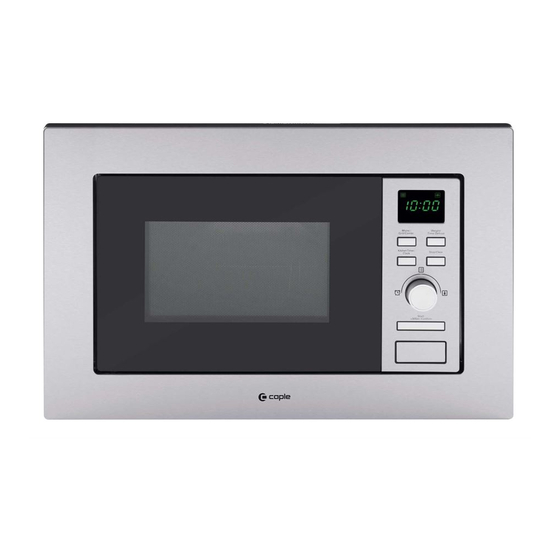

Instruction manual for microwave and grill
Model code: CM120
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM120 and is the answer not in the manual?

Questions and answers

Related Manuals for Caple CM120

Summary of Contents for Caple CM120

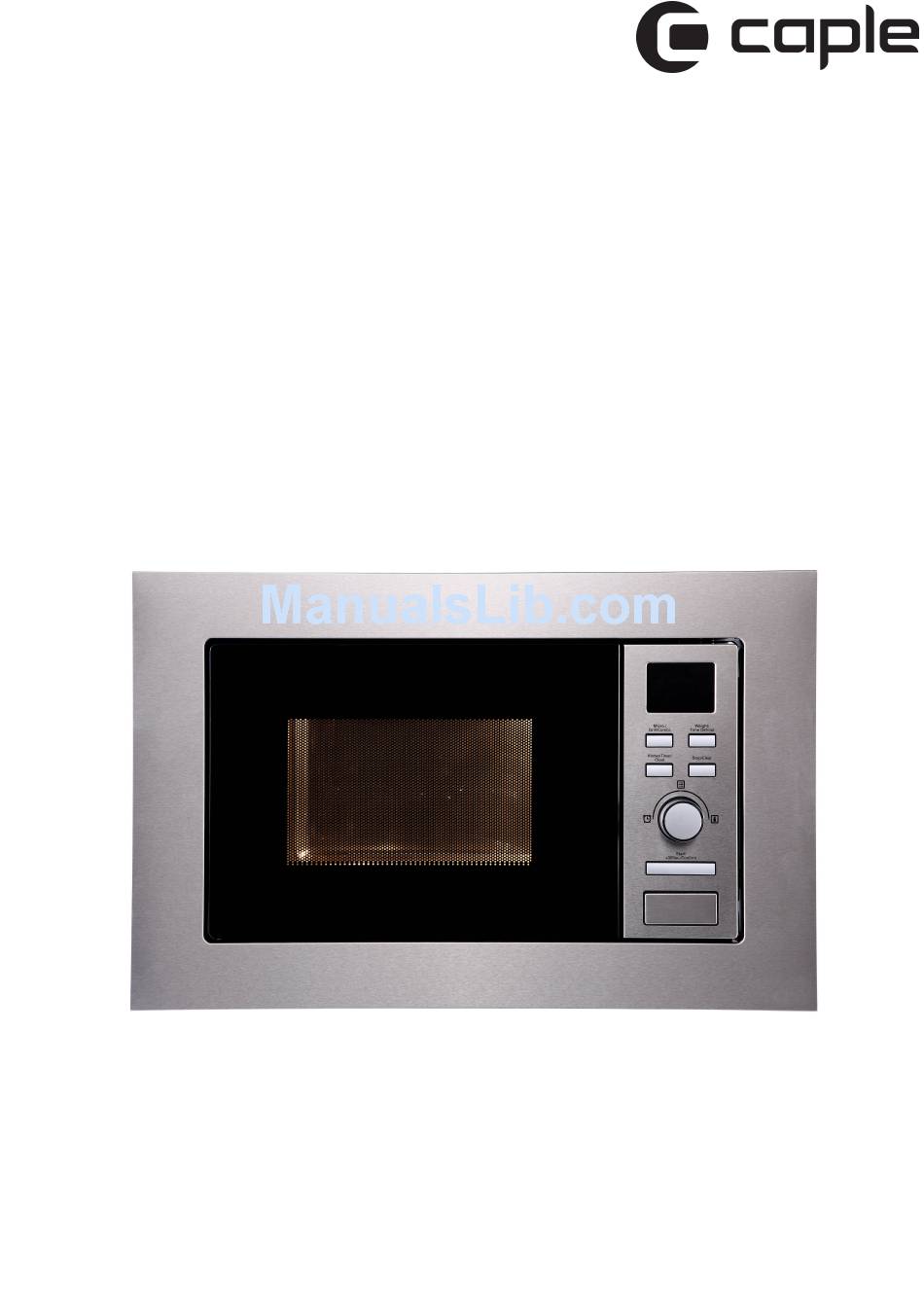

  • Page 1 Instruction manual for microwave and grill Model code: CM120 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
  • Page 2 Read this instruction manual carefully before using your microwave. If you follow the instructions, your appliance will provide you with many years of good service. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE...

  • Page 3: Product Specification

    If the appliance is not maintained in a good state of cleanliness, its surface could degrade and affect the lifespan of the microwave, this could also lead to a dangerous situation. Product specification CM120 Model: Rated Voltage: 230V ~ 50Hz...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, injury to persons WARNING or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 13. Install or locate this oven only in 1.

  • Page 5: Read Carefully And Keep For Future Reference

    23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 6: Grounding Installation

    Consult a qualified electrician or Caple which may result in the shattering of the service engineer if the grounding glass.

  • Page 7: Materials You Can Use In A Microwave Oven

    UTENSILS See the instructions on "Materials you can use in a microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not CAUTION safe to use for microwaving. If in doubt, you can test the Personal injury hazard utensil in question following the procedure below.

  • Page 8: Materials To Be Avoided In A Microwave Oven

    Materials to be avoided in a microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. a metal handle Metal or metal- Metal shields the food from microwave energy. Metal trim may trimmed utensils cause arcing.

  • Page 9: Turntable Installation

    All food and containers of food are always placed on the glass turntable for cooking. d. If glass turntable or turntable ring assembly cracks or Turntable shaft breaks, contact your nearest authorized Caple service center. Turntable ring assembly Installation and connection 1.This appliance is only intended for domestic use.

  • Page 10: Installation Instructions

    Installation Instructions Please read the manual carefully before installation ADJUSTABLE SCREW A SCREW B PLASTIC COVER Electrical connection NOTE: The microwave oven is fitted with a plug and must only be connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.
  • Page 11 A. Built-in furniture The cabinet the appliance is being installed into must have the rear panel behind the appliance removed to allow for the correct ventilation. The minimum installation height is 85cm. Do not cover any ventilation slots or air intake points. Dimensions (45) (45)

  • Page 12: Installing The Microwave

    B. Installing the microwave ADJUST SCREW A UPPER AIR TUNNEL ADJUST HEIGHT ADJUSTABLE SCREW A TRIM KIT TRIM-KIT 1. Fix adjustable screw A located on the upper air tunnel of the microwave, and then install the microwave into the cabinet. Adjust the height of adjustable screw A to keep 1mm gap between the screw A and the top plane of cabinet.
  • Page 13 Operation Instructions 1. Setting the clock When the microwave oven is switched on, the LED will display "0:00"and the alarm will ring once. 1) Press " Kitchen Timer/Clock " twice to select clock function, the hour figures will flash. 2) Turn " "...

  • Page 14: Grill Or Combination Cooking

    "Micro/Grill/Combi." Pad instructions Microwave Grill Display Order Power Power 100% P100 100% 3. Grill or combination cooking Press " " the LED will display"P100",and press " " Micro./Grill/Combi. Micro./Grill/Combi. or turn the " " to choose the power you want, and "G","C-1" or "C-2" Start/+30Sec./Confirm will display for each added press.
  • Page 15 4. Quick start In the standby mode, Press " Start/+30Sec./Confirm " to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes. 2) In microwave, grill cooking or time defrost mode, each press of "...
  • Page 16 8. Auto menu 1) Turn " " right to choose the menu, and "A-1" to "A-8" will display, which means auto reheat, vegetable, fish,meat, pasta, potato, pizza and soup. 2) Press " " to confirm. Start/+30Sec./Confirm 3) Turn " " to choose the default weight as the menu chart. Start/+30Sec./Confirm 4) Press "...

  • Page 17: Multi-Section Cooking

    9. Multi-section cooking At most 2 selections can be set for cooking. In multi-section cooking, if one selection is defrosting, then defrosting must be placed in the first selection. Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following: 1) Press "...

  • Page 18: Troubleshooting

    Troubleshooting You must not run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste.
  • Page 20 Caple Fourth Way Avonmouth Bristol BS11 8SW www.caple.co.uk...
