TP-Link TL-WPA8630P Manual

TL-WPA8630P KIT
* Images in the QIG may differ from actual products.
Hello, I'm here.
Follow me to extend your Wi-Fi network.
Internet
WAN LAN
Connect the adapter to a LAN
1
port of your router using an
Ethernet cable.
Plug the powerline devices into the wall sockets
2
near each other and on the same electrical circuit.
Powerline
Adapter TL-PA8010P
Pair the powerline devices.
A. Press the Pair button for 1 second.
The Power LED starts blinking.
* If the Power LED does not blink, press it again.

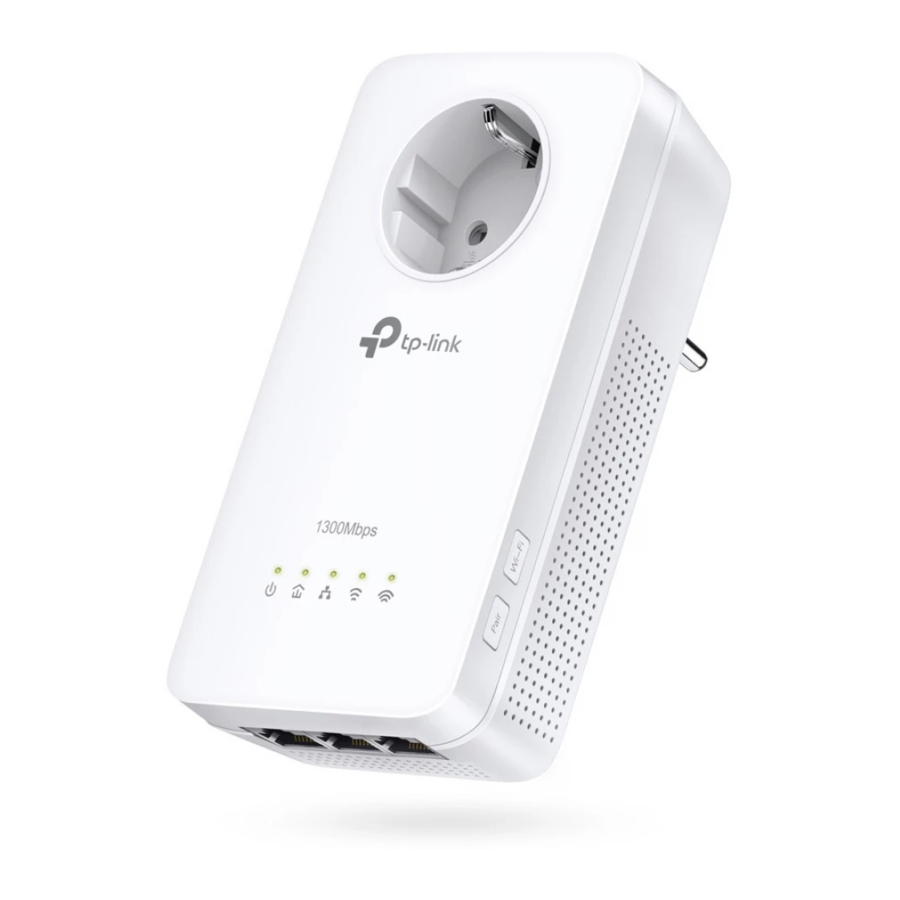

Extender TL-WPA8630P
B. Press the Pair button for 1 second.
The Power LED starts blinking.
When the Powerline LED is on
and stable, it's done.
Tips:
You can add more powerline devices to the
existing powerline network by pairing these
devices.
