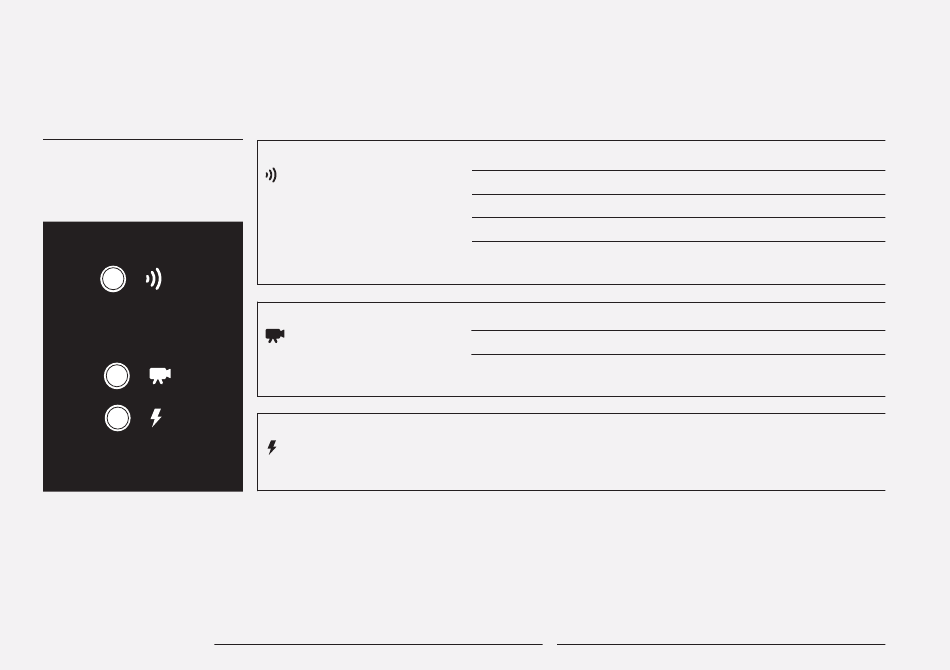

TRANSMITTER LED STATUS

TRANSMITTER
LED STATUS
NETWORK LED CONNECTION
VIDEO LED CONNECTION
LOW BATTERY LED
PARALINX TOMAHAWK
Solid When a connection to Rx is established
Slow blinking Device is in listen mode
Normal blinking During link setup mode.
Normal blinking During registration (Reg button was pressed)
Fast blinking System Error.
(With Video LED)
Solid Video link established and locked in
Normal blinking Video source is not supported
Fast blinking System Error.
(With Network LED)
Solid Low Battery,when voltage is less then 7v
