Operating instructions Aliva-257 Top
2.4

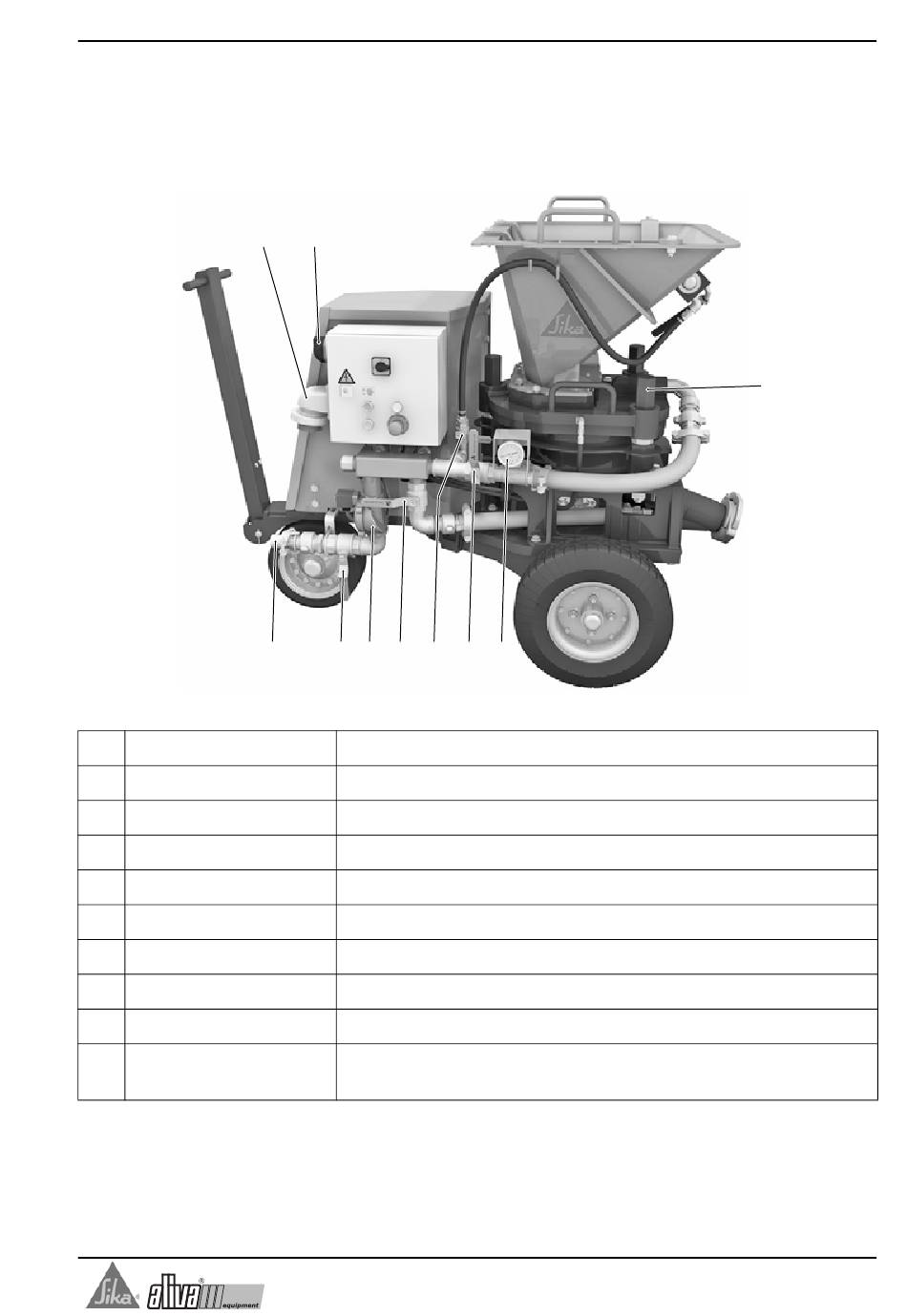

Operating parts and connections

2.4.1
1 Socket
2 Socket
3 Clamp
4 Manometer
5 Ball valve 1¼"
6 Ball valve ¾"
7 Ball valve 1¼"
8 Solenoid valve
9 Ball valve 1½"
10 Compressed air
connection

Overview

1 2
9 8 7
10
• Power connection attachment unit plug
• Remote control
• Bottom air pressure manometer
• Top air
• Jouncer ON / OFF vibration intensity
• Bottom air
• Opens, closes the flow of compressed air
• Compressed air feed OPEN / CLOSED
• Connection to compressor, P max 7 bar
(thread ø 1½" / hose ø 38)
Version 1.0
6 5 4
2 Description of unit
3
257.005
13
