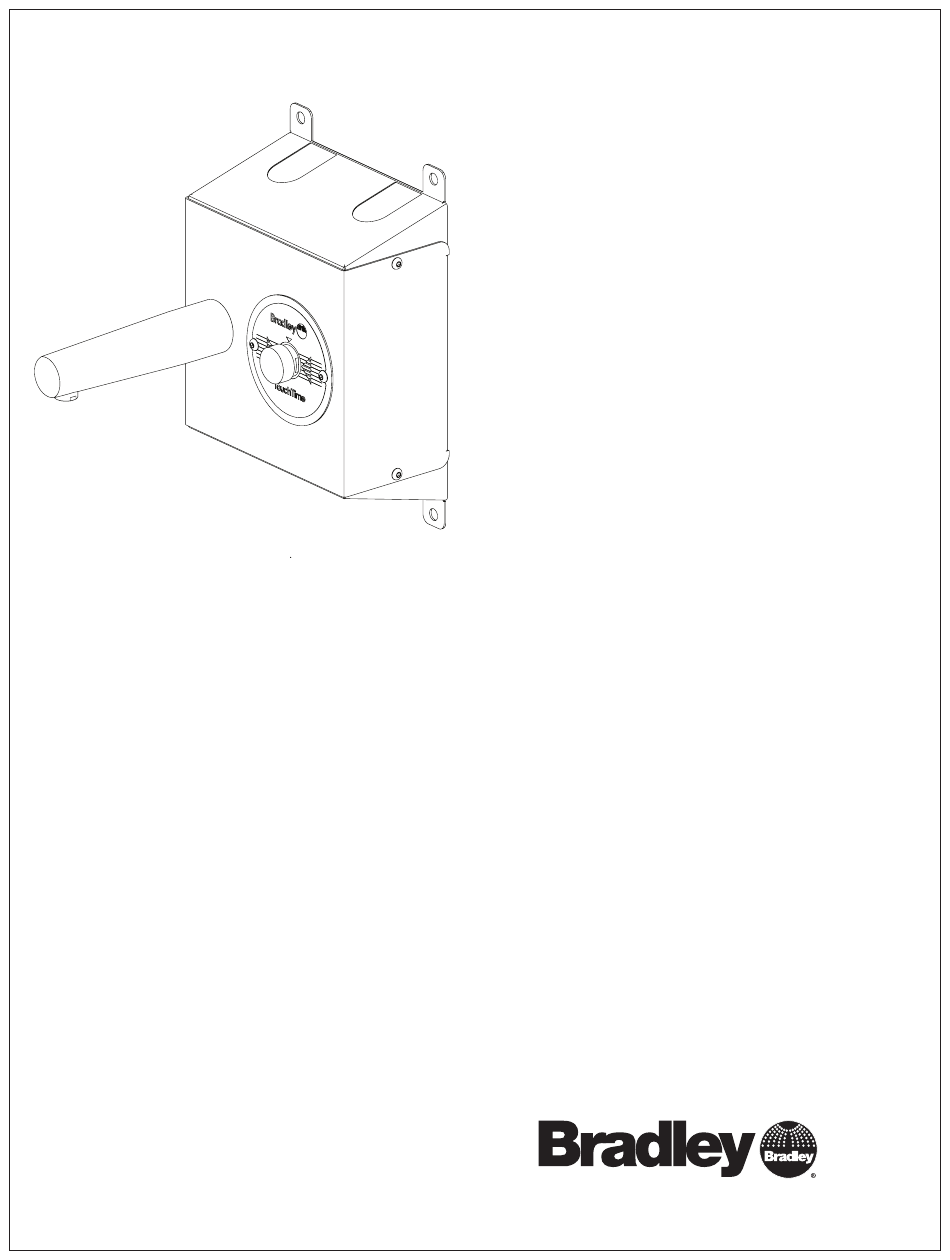

Bradley ABP-1WCA Installation

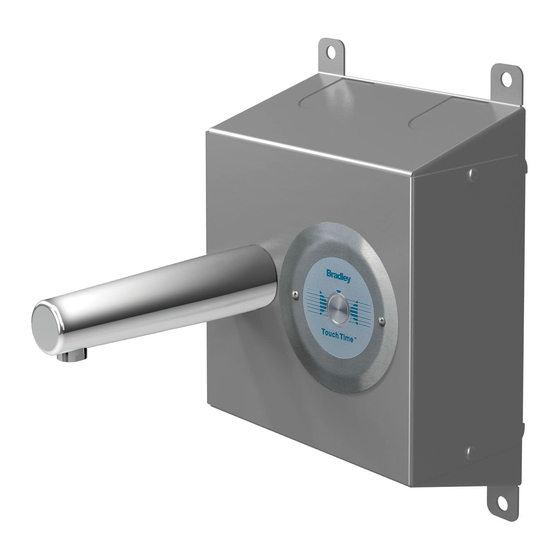

Surface mount ablution system

Download this manual

Make sure that all water supply lines have been flushed and then completely turned off before beginning

installation. Debris in supply lines can cause valves to malfunction.

Read this entire installation manual to ensure proper installation. When finished with the installation, file

this manual with the owner or maintenance department. Compliance and conformity to local codes and

ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding packaging

material. If any parts are missing, do not begin installation until you obtain the missing parts.

Product warranties may be found under "Products" on our web site at www.bradleycorp.com.

215-1813 Rev. C; ECN 16-03-002

Page 1 of 4 1/11/2016

Installation

ABP-1WCA Surface Mount

Ablution System

Air Metering Valve AST

TouchTime™ (TT)

Single Valve(SV & SVL)

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 4

WARNING

IMPORTANT

P.O. Box 309, Menomonee Falls, WI USA 53052-0309

800 BRADLEY (800 272 3539)

bradleycorp.com

+1 262 251 6000

Need help?

Do you have a question about the ABP-1WCA and is the answer not in the manual?

Page 1 Product warranties may be found under “Products” on our web site at www.bradleycorp.com. 215-1813 Rev. C; ECN 16-03-002 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2016 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 4 1/11/2016 bradleycorp.com...
Page 2 • 1/2"-20 wall anchors to mount ablution panel to wall • 110/210 VAC power source for 24 VAC Class II transformer (for TouchTime models only) ™ • 24 VAC Class II transformer, available from Bradley (for TouchTime models only) ™ PRPK Transformer...
Page 3 (127mm) 6-1/2" 5-1/2" (166mm) (137mm) 10-3/4" (273mm) 7-1/4" 6-1/4" (184mm) (157mm) Spout/Head (SPSS type water exit) 7-1/4" (184mm) Supply 1-7/8" (recommended location (48mm) Spout/Head 2-1/2" 3-5/8" (SX type water exit) (64mm) (92mm) Bradley • 215-1813 Rev. C; ECN 16-03-002 1/11/2016...
Page 4 . It is emphasized that all products should be used in strict accordance with package instructions . Bradley • 215-1813 Rev. C; ECN 16-03-002 1/11/2016...
