INTERMEZZO 1.2s
8) Connect the subwoofer amplifier to an AC power source; turn the unit ON. Measure the DC voltage at
the "CD±" wires; it should be 10-20 volts.
9) If it is 25 volts or greater, turn the amplifier OFF, disconnect from the power source, and replace:

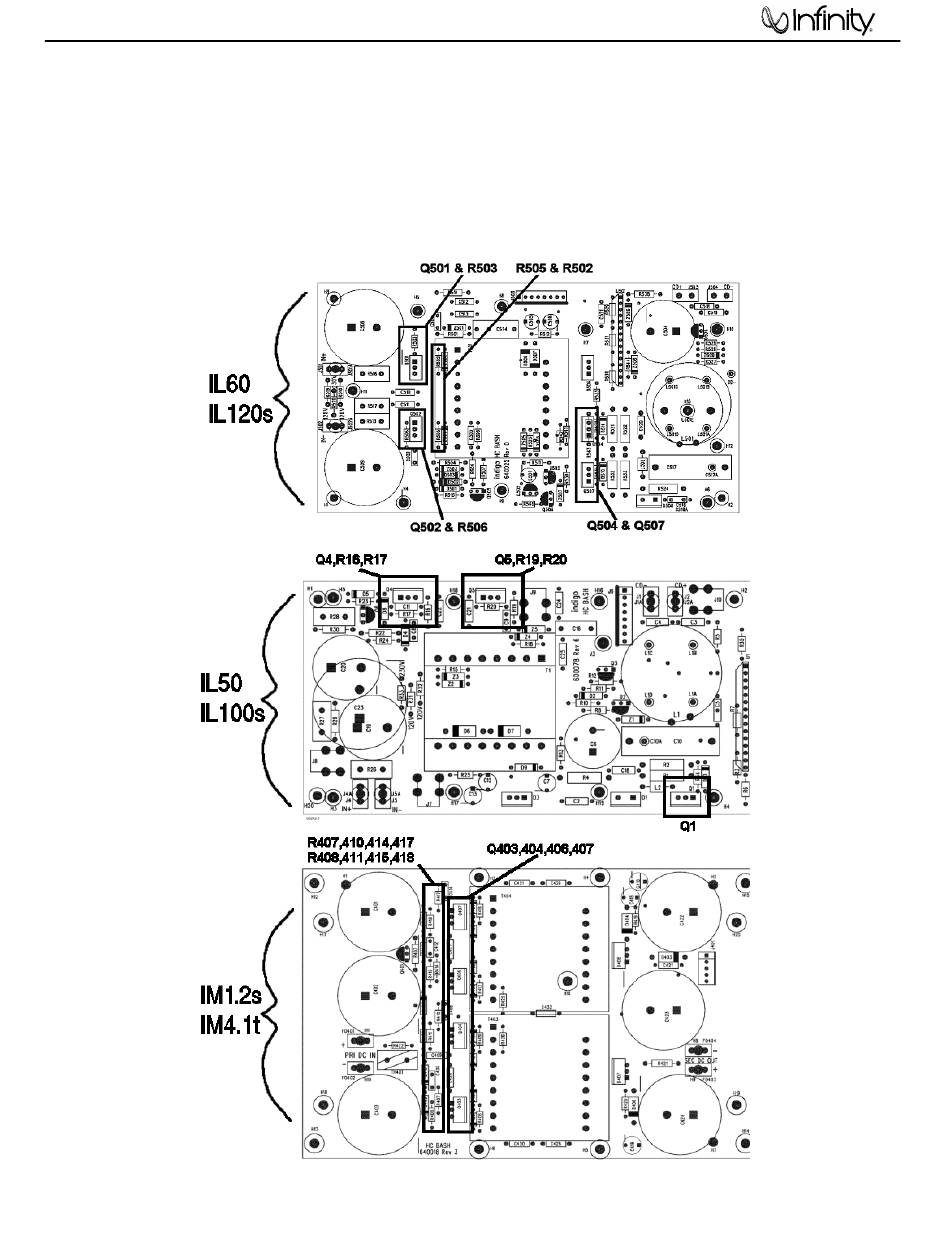

IL120S, IL60: Q504,Q507 IRF640 on the Power Supply PCB, Infinity part# QM0015.
IL50, IL100s: Q1 IRF540 on the Power Supply PCB, Infinity part# QM0020.
10) If the voltage is normal, turn the amplifier OFF, disconnect from the power source, and reconnect the
"CD±" leads.
11) Finish reassembling the amplifier, remount the heatsink, replace the amplifier in the cabinet and test
the subwoofer.
