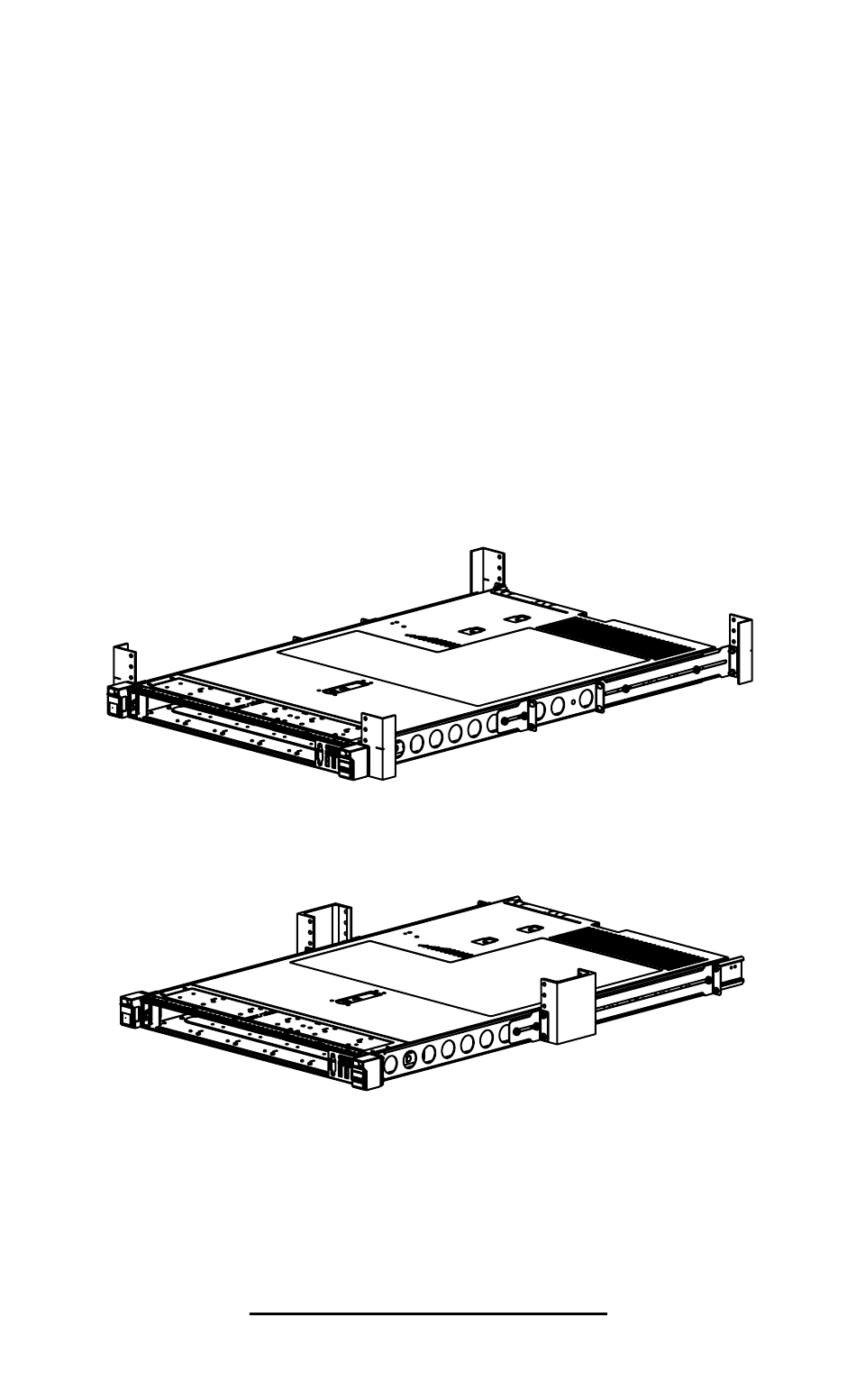

- Page 1 Patent(s) Pending 4Post and 2Post Sliding Rails for Lenovo/IBM M5 4Post Page 2 2Post Center Page 4 Installation Instructions Kit P/N: 122-4818...
-
Page 2: Table Of Contents
Kit Contents Kit Contents: Mounting Hardware: (2) Outer Rail (Left & Right) (8) 8-32 x .500 Pan Head Screw (2) Inner Rail (Left & Right) (2) Retainer Plate (2) Rear Bracket (2) Latch Plate (Left & Right) (2) Mounting Plate Rear Bracket Hardware: Rear Mount 8x: (4) 8-32 x .312 Flat Head Screw... -
Page 3: 4Post Installation Instructions
4Post Installation Instructions Step 3 Attach the Rails to the Rack: Attach the Front and Rear of the rails to the 4Post rack as shown below using supplied 8-32 Pan Head Screws on each side. Repeat for the other side. Right side shown, Left side parts are labeled "L". Tighten the front and rear Pan Head Screws on the right side rail. -
Page 4: Inner Rail To The Server. Repeat For The Other Side
2Post Center Installation Instructions Step 1 Rail Attachment: Attach the Inner Rail to the chassis by aligning the Shoulder Lugs with the keyholes in the Inner Rail and slide until the retaining clip has secured the Inner Rail to the server. Repeat for the other side. Inner Rail (Labeled "R") Step 2... - Page 5 2Post Center Installation Instructions Step 4 Attach Retainer Bracket: Attach Retainer Bracket to the front of the outer rail as shown below using the supplied 8-32 Pan Head Screws. Repeat for the other side. Outer Rail (Labeled "R") Retaining Plate (Labeled "R") (4) 8-32 x .500 Pan Head Screws Step 5...
- Page 6 Page 6...
- Page 7 Page 7...
- Page 8 Warranty Statement Innovation First, Inc. warrants our products against defects in material and workmanship for a period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to repairing or replacing, at our option, any defective product. 4818...
