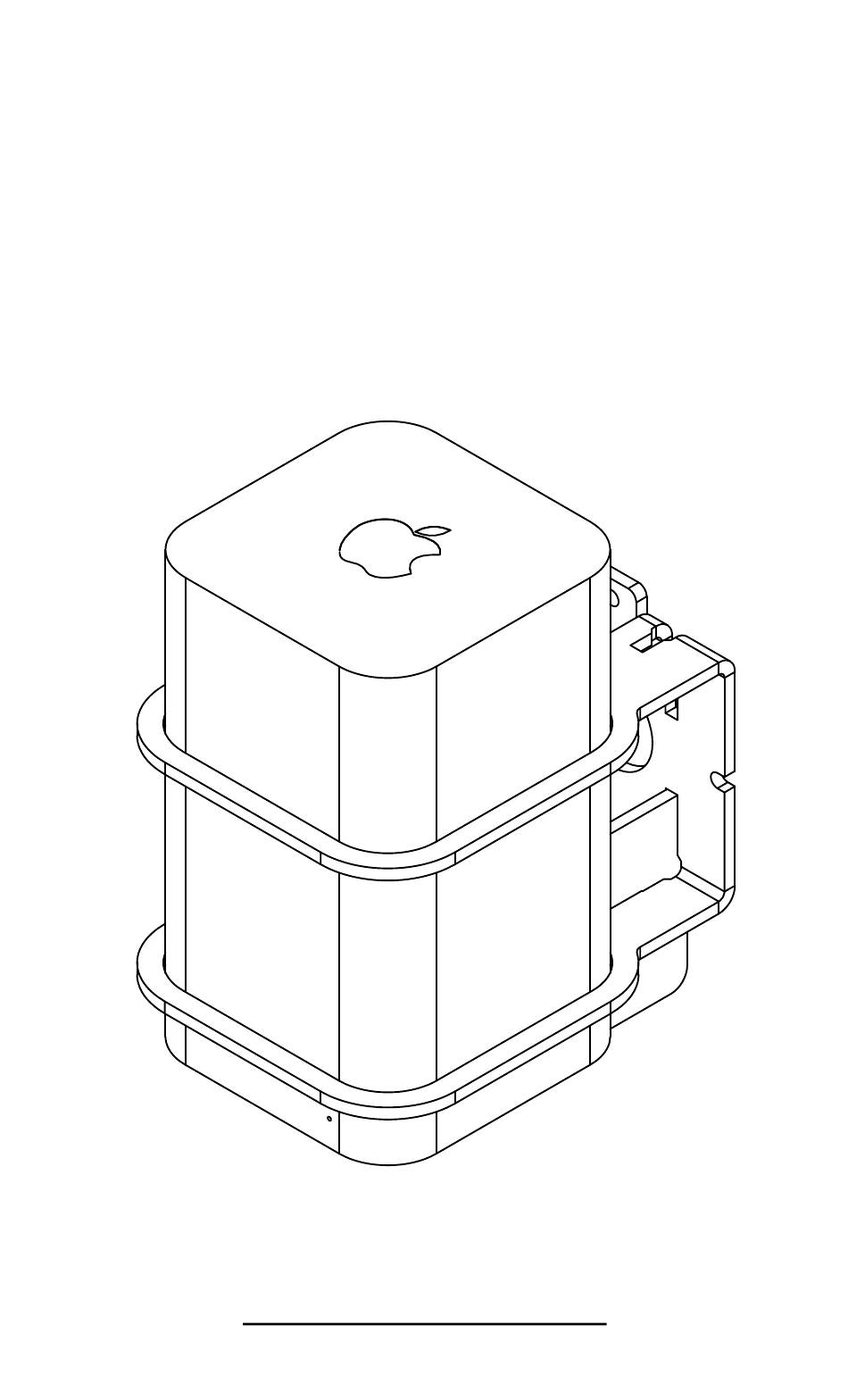

- Page 1 Patent(s) Pending Apple Airport Extreme Wall Mount Installation Instructions Kit P/N: 104-5191...
-
Page 2: Kit Contents
Kit Contents Kit Contents: Mounting Hardware: (1) Wall Bracket (2) Pan Head Screw (2) Support Bracket (2) Drywall Anchor Wall Mount Installation Instructions Step 1 Determine Location: Select appropriate location on wall. Consider cable routing and length. Step 2 Mark Hole Postion: Hold Wall Bracket in position and mark 2 hole positions with pencil. -
Page 3: Installation Instructions
Installation Instructions Step 4 Install Support Brackets: Insert the Support Brackets into the Wall Bracket as shown. Support Brackets Wall Bracket Step 5 Attach to Wall: Attach the Wall Bracket to the wall using 2 Pan Head Screws and Drywall Anchors installed in Step 3 as shown. Drywall Anchors Wall Bracket (2) Pan Head Screws... - Page 4 Installation Instructions Step 6 Install Equipment: Insert the Apple Airport Extreme into the Wallmount bracket as shown. Warranty Statement Innovation First, Inc. warrants our products against defects in material and workmanship for a period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to repairing or replacing, at our option, any defective product.
