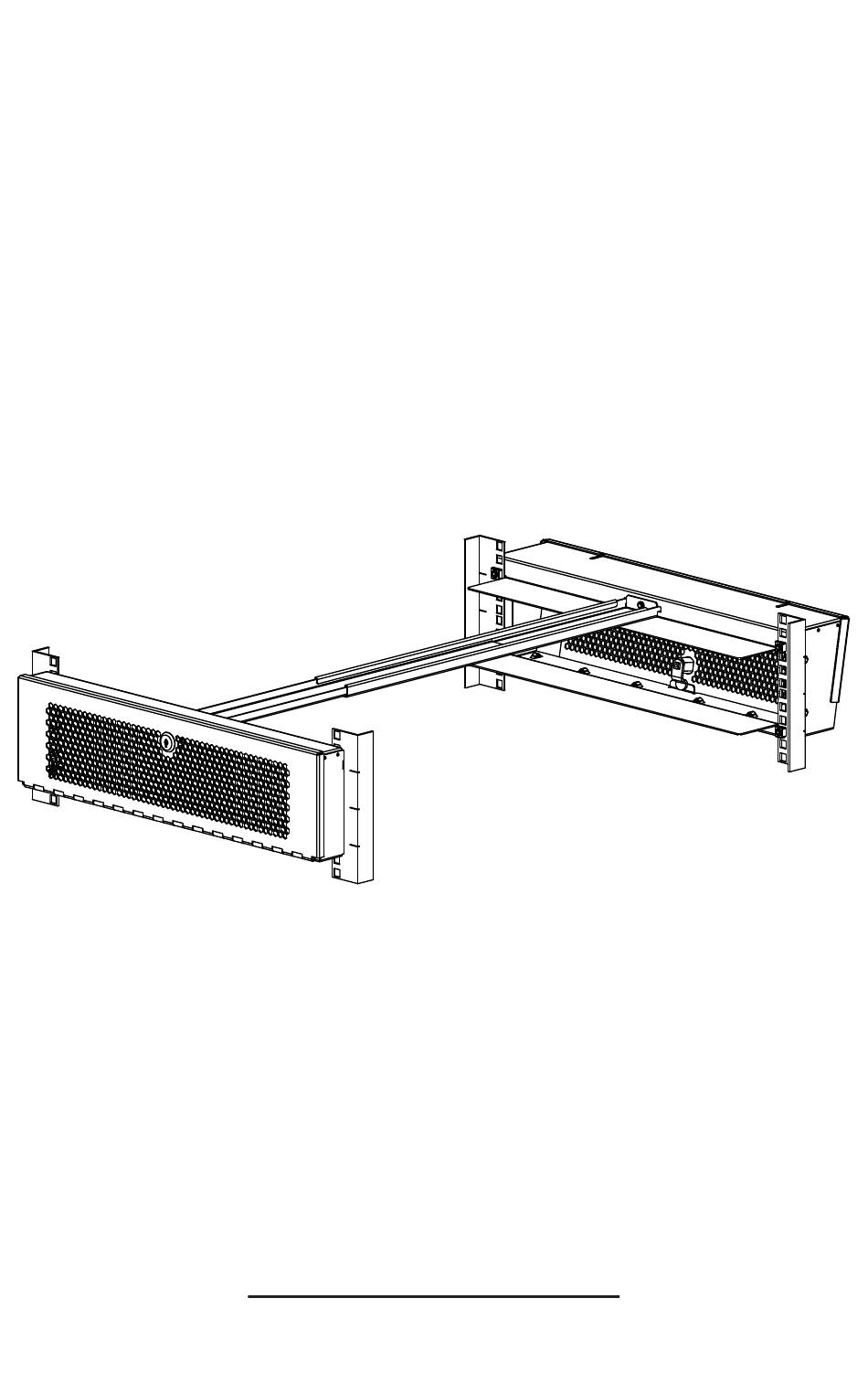

- Page 1 Patent(s) Pending 4 Post 2U Secure Server Unit Installation Instructions Kit P/N: 124-2247...
-
Page 2: Kit Contents
Kit Contents (1) Front Housing Assembly Hardware Kit: (1) Rear Housing (4) 8-32 x .188” Truss Head Screws (1) Rear Cover (2) 10-32 x .250” Truss Head Screws (1) Secure Sliding Bar (2) Secure Brackets Mounting Hardware Kit: (8) 12-24 Cage Nuts (8) 12-24 x .500”... - Page 3 Installation Instructions Step 3. Install Front Housing: Install Front Housing as shown at the front of the rack using (4) 12-24 x .500” Pan Head Screws. Front Housing (4) 12-24 x .500" Pan Head Screws Step 4. Install Rear Housing: Install Rear Housing as shown at the rear of the rack using (4) 12-24 x .500”...
- Page 4 Installation Instructions Step 5. Install Secure Sliding Bar: Install Secure Sliding Bar as shown using (2) 10-32 x .250” Truss Head Screws. Ensure that tabs are through square holes on both the Front and Rear Housings. Note: You may have to go through the inside of the Secure Server Housing if servers are installed above and below.
- Page 5 Installation Instructions Step 7. Install Locks: Install Locks on the Front Housing and the Rear Cover. Ensure that you use the bent pawl instead of the straight that is supplied in the lock kit. Install the pawl so that it is bent toward the Perf. Note: For some units locks may have been pre-installed.
- Page 6 Installation Instructions Step 8. Install the equipment using two people: With one person on each side of the equipment, slide the equipment all the way into the rails or slides installed previously. Equipment Step 9. Install Rear Cover: Install the Rear Cover onto the Rear Housing as shown by inserting the pins on the Rear Cover into the slots on the Rear Housing.
