Summary of Contents for Hafco BP-430
-
Page 1: Instruction Manual

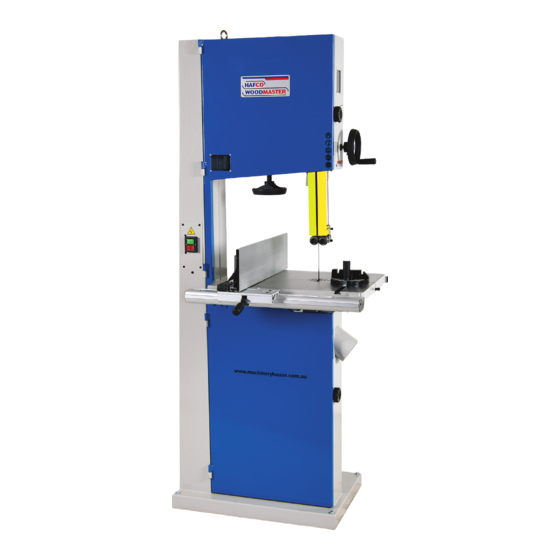

Instructions Manual for BP-430 (W433) 04/11/2019 INSTRUCTION MANUAL BP-430 Wood Band Saw 415mm throat x 310mm Height Capacity W433... - Page 2 Instructions Manual for BP-430 (W433) 04/11/2019 WOOD BANDSAW MODEL: BP-430 (W433) OPERATION MANUAL AND PARTS LIST...
-
Page 3: Table Of Contents
Instructions Manual for BP-430 (W433) 04/11/2019 TABLE OF CONTENT SPECIFICATIONS WARNINGS SAFETY INSTRUCTION FOR MACHINERY IDENTIFICATION FRONT SIDE OF BAND SAW REAR OF BAND SAW OPERATING INSTRUCTION LIFTING AND PLACING ASSEMBLING ADJUSTING 90 DEGREE TABLE STOP ASSEMBLING RIP FENCE CHANGING BLADES... -
Page 4: Specifications
Instructions Manual for BP-430 (W433) 04/11/2019 1. SPECIFICATIONS Horse Power Cutting Height 12"(300mm) Max. Cutting Width 16-1/4"(410mm) Max. Cutting (with Rip Fence) 14-5/8"(370mm) Saw Blade (L) 131.5"/3340mm Saw Blade (W) 1/8" to 1" (Standard 1/2") Saw Blade Speed (1,000/ 490 m/min.) (3,300/1,600SFPM) Table Size 17”... -
Page 5: Warnings
Instructions Manual for BP-430 (W433) 04/11/2019 2. WARNINGS − − Misuse of this machine can cause ser rious injury. Never leave machine ru unning while you are away from it. − − Always shut off the mac chine when not in use. -
Page 6: Safety Instruction For Machinery
Instructions Manual for BP-430 (W433) 04/11/2019 GENERAL ELECTRICAL CAUTIONS Caution: This saw should be grounded in accordance with the National For circuits which are far away from the electrical Electrical Code and local codes and ordinances. This work should service box, the wire size must be increased in order to deliver be done by a qualified electrician. -
Page 7: Identification
Instructions Manual for BP-430 (W433) 04/11/2019 4. IDENTIFICATION Throughout this document, we make reference to various systems Where detailed illustrations for various subsystems will be helpful, and components on the saw. The two illustrations on these pages will you will find these illustrations accompanying the specific teat for provide you with an overall frame of reference for the location and each subsystem and its components. -
Page 8: Rear Of Band Saw
Instructions Manual for BP-430 (W433) 04/11/2019 REAR OF BAND SAW... -
Page 9: Operating Instruction
Instructions Manual for BP-430 (W433) 04/11/2019 OPERATING INSTRUCTION LIFTING AND PLACING On the day that the machine arrives, make sure that a crane or forklift with sufficient capacity is available to Eye Bolt unload the machine from the vehicle. Ensure access to the chosen site is clear and that doors... -
Page 10: Adjusting 90 Degree Table Stop
Instructions Manual for BP-430 (W433) 04/11/2019 ADJUSTING 90 DEGREE TABLE STOP 1. Unplug power cord. Loosen the lock knobs (see Figure 5) and tilting table left until it rests against table stop bolt M8. (A, Fig. 6) Figure 5 2. Use a protector placed on the table and against the Figure 6 blade (Fig. -
Page 11: Adjusting The Tension Of Blade
Instructions Manual for BP-430 (W433) 04/11/2019 ADJUSTING THE TENSION OF BLADE Blade tension is set by a spring loaded tension mechanism on the upper wheel. Check the level of the tension device before cutting. The tension for various blade widths as indicated on the window of upper wheel cover. -
Page 12: Miter Gauge Adjustment
Instructions Manual for BP-430 (W433) 04/11/2019 MITER GAUGE ADJUSTMENT 1. Place the miter gauge in the table slot. 2. Loosen the clamp screw on the miter gauge. 3. Adjust the desired angle of cutting on the miter gauge. 4. Tighten the clamp screw. (see Figure 16) - Page 13 Instructions Manual for BP-430 (W433) 04/11/2019 6. STEPS FOR THE TABLE PARALEEL ADJUSTMENT Insert table pin into table groove. (see Figure 1) Table Pin Figure 1 Use a ruler gauge and put it on the table. Adjust the position of the table pin...
-
Page 14: Parts List
Instructions Manual for BP-430 (W433) 04/11/2019 6.PARTS LIST MODEL NO.W433... - Page 15 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 16 Instructions Manual for BP-430 (W433) 04/11/2019 ITEM PART NO DESCRIPTION SIZE Q`TY WF040808 FLAT WASHER M4xψ8 NH040700 SP040200 PAN HEAD SCREW M4x8 995101 RING 136161 MACHINE BODY NF050800 IC135042 SWITCH CORD WF061310 FLAT WASHER M6xψ13 IC135001 POWER CORD 3P+G NH061000...
- Page 17 Instructions Manual for BP-430 (W433) 04/11/2019 ITEM PART NO DESCRIPTION SIZE Q`TY 135002 HANDLE WHEEL 135003 ADJUSTING BOLT SF050200 PAN HEAD BOLT W/FLANGE M5x10 WE050000 STAR WASHER NH040700 NH050900 135070 SWITCH PLATE SR089400 HEX SOCKET BOLT M8x16 WF083030 FLAT WASHER M8xψ30...
- Page 18 Instructions Manual for BP-430 (W433) 04/11/2019 ITEM PART NO DESCRIPTION SIZE Q`TY 135020 KNOB SCREW M10x53 135028 LOCATE HANDLE 135030 135038 LOCATE BLOCK 620021 KNOB 620020 LEVER ROD NH121900 135036 SHAFT M8x20 SJ080400 HEX SOCKET BOTTOM HEAD SCREW WS080000 SPRING WASHER...
- Page 19 Instructions Manual for BP-430 (W433) 04/11/2019 ITEM PART NO DESCRIPTION SIZE Q`TY WF083030 FLAT WASHER M8x30 SR100700 HEX SOCKET BOLT M10x35 NH101700 102 AB135021C TRUNNION SUPPORT BRACKET(ASM) 103 WS100000 SPRING WASHER 104 WF102325 FLAT WASHER M10xψ23 112 WF081820 FLAT WASHER M8xψ18...
- Page 20 Instructions Manual for BP-430 (W433) 04/11/2019 ITEM PART NO DESCRIPTION SIZE Q`TY 176 135067 BUSHING 179 612112 BUSHING 180 WF081818 FLAT WASHER M8xψ18...
- Page 21 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 22 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 23 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 24 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 25 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 26 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 27 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 28 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 29 Instructions Manual for BP-430 (W433) 04/11/2019...
- Page 30 Instructions Manual for BP-430 (W433) 04/11/2019 General Machinery Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Read the entire Manual before starting 14. Use correct amperage extension cords. machinery. Machinery may cause serious injury if Undersized extension cords overheat and lose not correctly used.
- Page 31 Instructions Manual for BP-430 (W433) 04/11/2019 Wood Bandsaw Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Maintenance. 11. Work area hazards. Make sure the bandsaw is turned Keep the area around the off and disconnect from the main power supply bandsaw clean from oil, tools, chips.
- Page 32 Instructions Manual for BP-430 (W433) 04/11/2019...
