Page 1: Instruction Manual
Instruction Manual for BS-13LS (B031) 30/03/2016 INSTRUCTION MANUAL BS-13LS Semi-Automatic Swivel Head Metal Cutting Band Saw (415V) 510 x 210mm (W x H) Rectangle B031... - Page 2 Instruction Manual for BS-13LS (B031) 30/03/2016 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reprodrctive harm. Some examples of these chemical are: ‧Lead from lead-based paints.
-
Page 3: Table Of Contents
Instruction Manual for BS-13LS (B031) 30/03/2016 Table Of Contents Page No 1 Overall Aspect ………………………………………………………………… 2 2 Safety Rules For All Tools ……………………………………………………. 3 3 Specification …………………………………………………………………… 5 4 Features ……………………………………………………………………..…. 5 5 Transportation & Install ……………………………………………………… 6 6 Minimum Room Space For Machine Operation …………………………….. 7 7 Make Proper Tooth Selection …………………………………………………. -
Page 4: Overall Aspect

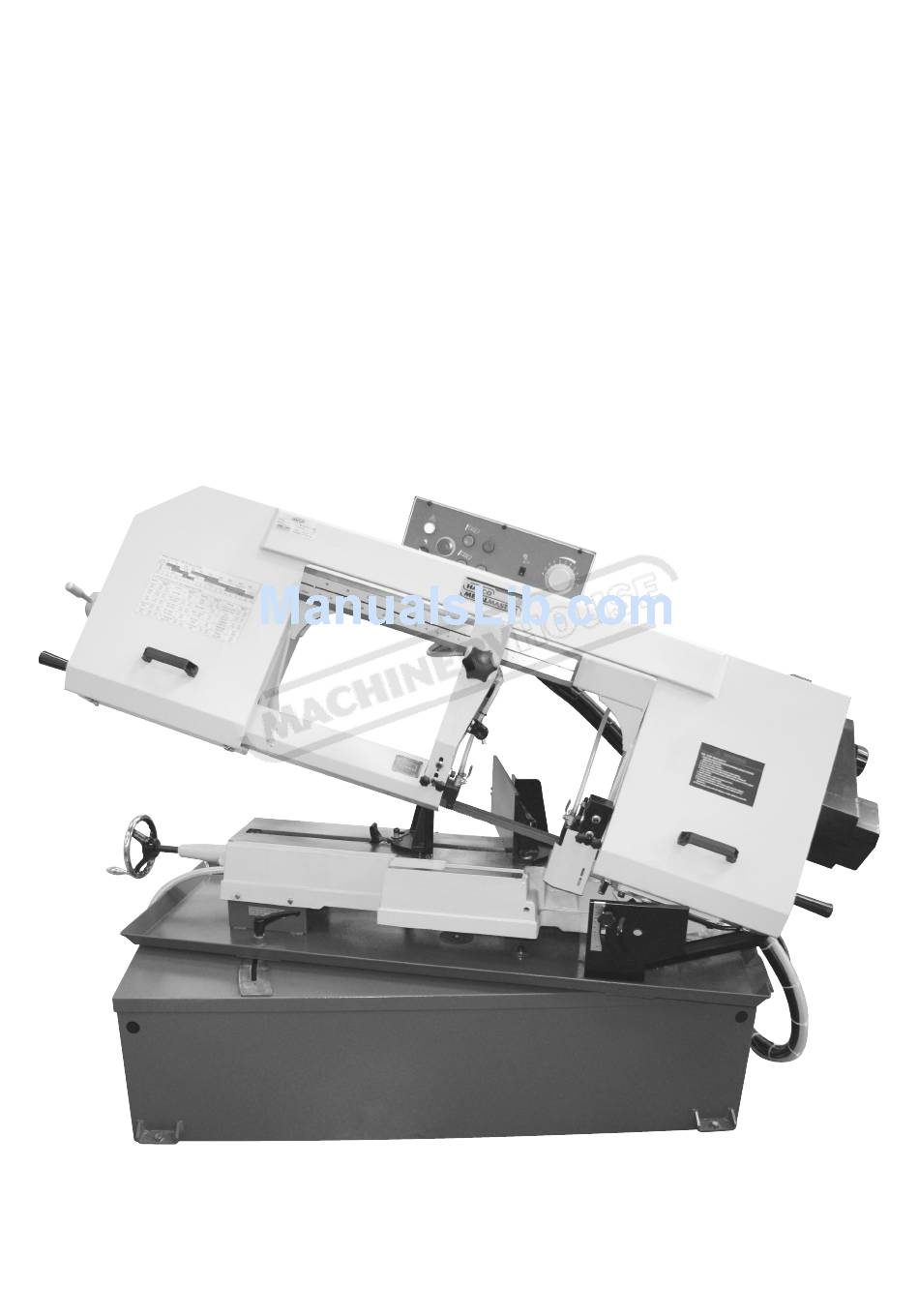

Instruction Manual for BS-13LS (B031) 30/03/2016 1.Overall Aspect Control Panel Cover Hand Wheel Motor Pulley Cover Handle Vise Hand Wheel Control Box Water Plate Base Support Rod Vise Jaw Bracket... -
Page 5: Safety Rules For All Tools
Instruction Manual for BS-13LS (B031) 30/03/2016 WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY As with all machinery there are certain hazards involved with operation and use of the machine. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. - Page 6 Instruction Manual for BS-13LS (B031) 30/03/2016 The use of improper accessories may cause hazards. (7). AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in power cord. (8). DIRECTIONOF FEED. Feed work into a blade or cutter against the direction of rotation of the blade or cutter only.
-
Page 7: Specification
Instruction Manual for BS-13LS (B031) 30/03/2016 F. SPECTIFIED USAGE: This machine is used only for general metals cutting within the range of cutting capacity. G. NOISE: A weighted sound pressure level : 80 dB. H. SAFETY DEVICE: Interlock switch on cutting area as soon as the cover of cutting area is open, machine will stop at once witch the function of this switch. -
Page 8: Transportation & Install
Instruction Manual for BS-13LS (B031) 30/03/2016 5.TRANSPORTATATION & INSTALLATION: 5-1.Unpacking 1. Transportation to desired location before unpacking, please use-lifting jack. (Fig. B) 2. Transportation after unpacking, please use heavy duty fiber belt to lift up the machine. Fig. B ALLWAYS KEEP PROPER FOOTING & BALANCE WHILE MOVING THIS MACHINE. -
Page 9: Minimum Room Space For Machine Operation
Instruction Manual for BS-13LS (B031) 30/03/2016 5-4.CLEAIG & LURICATING (1) Your machine has been coated with a heavy grease to protect it in shipping. This coating should be completely removed before operating the machine. Commercial degreaser, kerosene or similar solvent may be used to remove the grease from the machine, but avoid getting solvent on belts or other rubber parts. -
Page 10: Bi-Metal Speeds And Feeds
Instruction Manual for BS-13LS (B031) 30/03/2016 Locate the diameter of your work-piece on the chart. Select the tooth pitch on the ring marked with the round shape which aligns with the size of stock you are cutting. EXAMPLE: 4" (100mm) round, use a 3/4 Vari-Tooth. - Page 11 Instruction Manual for BS-13LS (B031) 30/03/2016 1030 Carbon 1008,1015,1020,1025 Steel 1035 1018,1021,1022 1026,1513 A36(SHAPES),1040 1042,1541 1044,1045 1060 1095 Ni-Cr-Mo 8615,8620,8622 Alloy Steel 4340,E4340,8630 8640 E9310 Tool Steel A-10 H-11,H-12,H-13 Stainless Steel 410,502 440C 304,324 304L 316,316L TELLTALE CHIPS Chips are the best indicators of correct feed force. Monitor chip information and adjust feed accordingly.
-
Page 12: Use Of Main Machine Parts
Instruction Manual for BS-13LS (B031) 30/03/2016 9.USE OF MAIN MACHINE PARTS 9-1.POWER SYSTEM AND CONTROL PANEL The electrical rating of your band saw is either with 230 volt-single phase, or 400 volt-3 phase, magnetic control. Before connecting your machine to an electrical power system, be sure the motor shaft is running in the correct direction. - Page 13 Instruction Manual for BS-13LS (B031) 30/03/2016 7. When discontinued cutting or reset cutting is necessary during operation,close the cylinder feeding valve,then push the stop button(F) 8. Press emergency button(E) to shut-off the motor when in emergent situation Before next operation release (E) to get power.
- Page 14 Instruction Manual for BS-13LS (B031) 30/03/2016 9-5.ADJUSTING BLADE TENSION AND BLADE TRACKING To tension the blade, turn the blade tension handle (A) (fig. 7) clockwise. A pointer and tension scale (B) is located underneath the wheel. The scale is graduated to indicate blade tension of 20,000, 30.000 and 35,000 pounds per square inch (psi).
- Page 15 Instruction Manual for BS-13LS (B031) 30/03/2016 2. The saw blade (A) should also ride between and lightly touch the two blade guide roller bearings (E) and (F) (fig. 9) The front bearing (E) (fig. 9) is mounted on an eccentric, and can easily be adjusted to suit blade thickness by loosening set screw (G) and turning shaft (E).
- Page 16 Instruction Manual for BS-13LS (B031) 30/03/2016 When change angle-cutting. Please follow bellow steps: 1.release the handle H (fig 15) and A (fig 16) to required angle and fix the handles. 2 Release (A) (B) of Fig.14 adjust to required angle the fix it.
- Page 17 Instruction Manual for BS-13LS (B031) 30/03/2016 3. Release blade tension (F) (fig 18) by turning the blade tension hand-wheel counterclockwise. 5. Remove the blade from both wheels and out of each blade guide. But remove side (B) saw blade. When totally released, then remove the side (A).
-
Page 18: Maintaining
Instruction Manual for BS-13LS (B031) 30/03/2016 9-14. HOW TO USING CLEAN EQUIPMENT After finished cutting, you can clean the chip by using clean equipment. Adjust the screw (A) (on the end of spray) to control the volume of coolant fluid. -
Page 19: Trouble Shooting
Instruction Manual for BS-13LS (B031) 30/03/2016 11. TROUBLE SHOOTING Symptom Possible Cause(s) Corrective Action Machine can not be started 1. Power is not plugged; the power light on 1. Check the motor specification; connect the power with correct control panel is not on. - Page 20 Instruction Manual for BS-13LS (B031) 30/03/2016 remove chips. Motor running too hot 1. Blade tension too high. 1. Reduce tension on blade. 2. Drive belt tension too high. 2. Reduce tension on drive belt. 3. Blade is too coarse for work 3.
-
Page 21: Circuit Diagram
Instruction Manual for BS-13LS (B031) 30/03/2016 12.CIRCUIT DIAGRAM... - Page 22 Instruction Manual for BS-13LS (B031) 30/03/2016...
-
Page 23: Parts Lists
Instruction Manual for BS-13LS (B031) 30/03/2016 16. PARTS LISTS... - Page 24 Instruction Manual for BS-13LS (B031) 30/03/2016...
- Page 25 Instruction Manual for BS-13LS (B031) 30/03/2016...
- Page 26 Instruction Manual for BS-13LS (B031) 30/03/2016 PARTS LIST MODEL NO. 335SRVA CODE_NO PART_NO DESCRIPTION SPECIFICATION NOTE 103301RA Fluid Collected Plate 1.00 103301R 1.00 Stand 103302 1.00 Base HS050 M8-1.25Px40L 8.00 Hex. Head Screw W016 5/16"x23x2mm 16.00 Washer HN005 8.00 Hex. Nut...
- Page 27 Instruction Manual for BS-13LS (B031) 30/03/2016 PARTS LIST MODEL NO. 335SRVA CODE_NO PART_NO DESCRIPTION SPECIFICATION NOTE 103328 1.00 Bushing OPTION HP023 ∮5X45L 2.00 103259 2.00 HW105 6.00 Spring Washer HS246 M8x40L 6.00 Hex. Socket Head Screw HW003 2.00 Washer HW006 1.00...
- Page 28 Instruction Manual for BS-13LS (B031) 30/03/2016 PARTS LIST MODEL NO. 335SRVA CODE_NO PART_NO DESCRIPTION SPECIFICATION NOTE 85-3 HSC01 2.00 C-Retainer Ring 103028AS 2.00 Eccentric Shaft Assembly 86-1 103028A 2.00 Eccentric Shaft 86-2 CA609ZZ 609ZZ 6.00 Bearing 86-3 HSC01 2.00 C-Retainer Ring 103026 2.00...
- Page 29 Instruction Manual for BS-13LS (B031) 30/03/2016 PARTS LIST MODEL NO. 335SRVA CODE_NO PART_NO DESCRIPTION SPECIFICATION NOTE 103317 1.00 Pivot Pin HS519 M5x10L 6.00 Cross Round Head Screw 105053N 1.00 Control Box 105058N 1.00 Control Plate HW004 2.00 Washer HS527 M6x10L 2.00...
- Page 30 Instruction Manual for BS-13LS (B031) 30/03/2016 PARTS LIST MODEL NO. 335SRVA CODE_NO PART_NO DESCRIPTION SPECIFICATION NOTE 103127 M6x10L 4.00 Plum Screw HS258 M10x20L 3.00 Hex. Socket Head Screw HS519 M5X8L 1.00 Cross Round Head Screw 189037 1.00 Distance Set Rod 103151 1.00...
- Page 31 Instruction Manual for BS-13LS (B031) 30/03/2016 PARTS LIST MODEL NO. 335SRVA CODE_NO PART_NO DESCRIPTION SPECIFICATION NOTE 256-8 HW005 2.00 Washer HS032 M6x10L 1.00 Hex. Head Screw HN004 1.00 Hex. Nut 191106A 1.00 Filter MB13304CR HP1/8/400/50 /3 1.00 Cooling Pump HS033 M6x15L 4.00...
- Page 32 Instruction Manual for BS-13LS (B031) 30/03/2016 PARTS LIST MODEL NO. 335SRVA CODE_NO PART_NO DESCRIPTION SPECIFICATION NOTE HN006 1.00 Hex. Nut HS219 M5x15L 2.00 Hex. Socket Head Screw 103322 1.00 Lower Adjusting Support 103088 1.00 Gap Ring 103125S 1.00 Spray Assembly...
- Page 33 Instruction Manual for BS-13LS (B031) 30/03/2016 PARTS LIST MODEL NO. 335SRVA CODE_NO PART_NO DESCRIPTION SPECIFICATION NOTE 105056 Blade Cover 1.00 HS228 M6x10L 2.00 Hex. Socket Head Screw 105057 1.00 Limit Switch Support HS519 M5x10L 2.00 Cross Round Head Screw W004 1/4"x19xt1.5mm...
- Page 34 Instruction Manual for BS-13LS (B031) 30/03/2016 MANUFACTURER: ADDRESS: SERIAL No.: PLEASE WRITE DOWN THE SERIAL NO. ON THIS BLOCK FROM THE NAME PLATE AFTER YOU RECEIVE THIS MACHINE.
