Part#
Description
1-A
Chimney Cap (x1)
2-A
Chimney Stack (x1)
3-A
Cooking Grids (x3)
4-A
Main Barrel (x1)
5-A
Main Barrel Handle (x1)
6-A
Main Barrel Door (x1)
7-A
Thermometer (x1)
8-A
Main Barrel Door Handle (x1)
9-A
Power Cord Bracket (x1)
10-A
Hopper Lid (x1)
11-A
Hopper (x1)
12-A
Flame Diffuser Plate (x1)
13-A
Grease Trough (x1)
14-A
Grease Trough Gasket (x1)
15-A
Main Barrel Door Latch (x1)
16-A
Heat Tent (x1)
17-A
Grease Pan (x1)
18-A
Support Leg (x2)
19-A
Stationary Support Leg (x2)
20-A
Wheel (x2)
21-A
Grease Bucket (x1)
22-A
Meat Probe (x1)
A-A
Wheel Axle Pin (x2)
B-A
Wheel Washer (x2)
C-A
Screw (x27)
D-A
Screw (x7)
E-A
Screw (x4)
F-A
Wheel Cotter Pin (x2)
G-A
Washer (x27)
H-A
Locking Washer (x27)
I-A
Washer (x7)
J-A
Locking Washer (x7)
NOTE: Due to ongoing product development, parts are subject to change without notice.
24

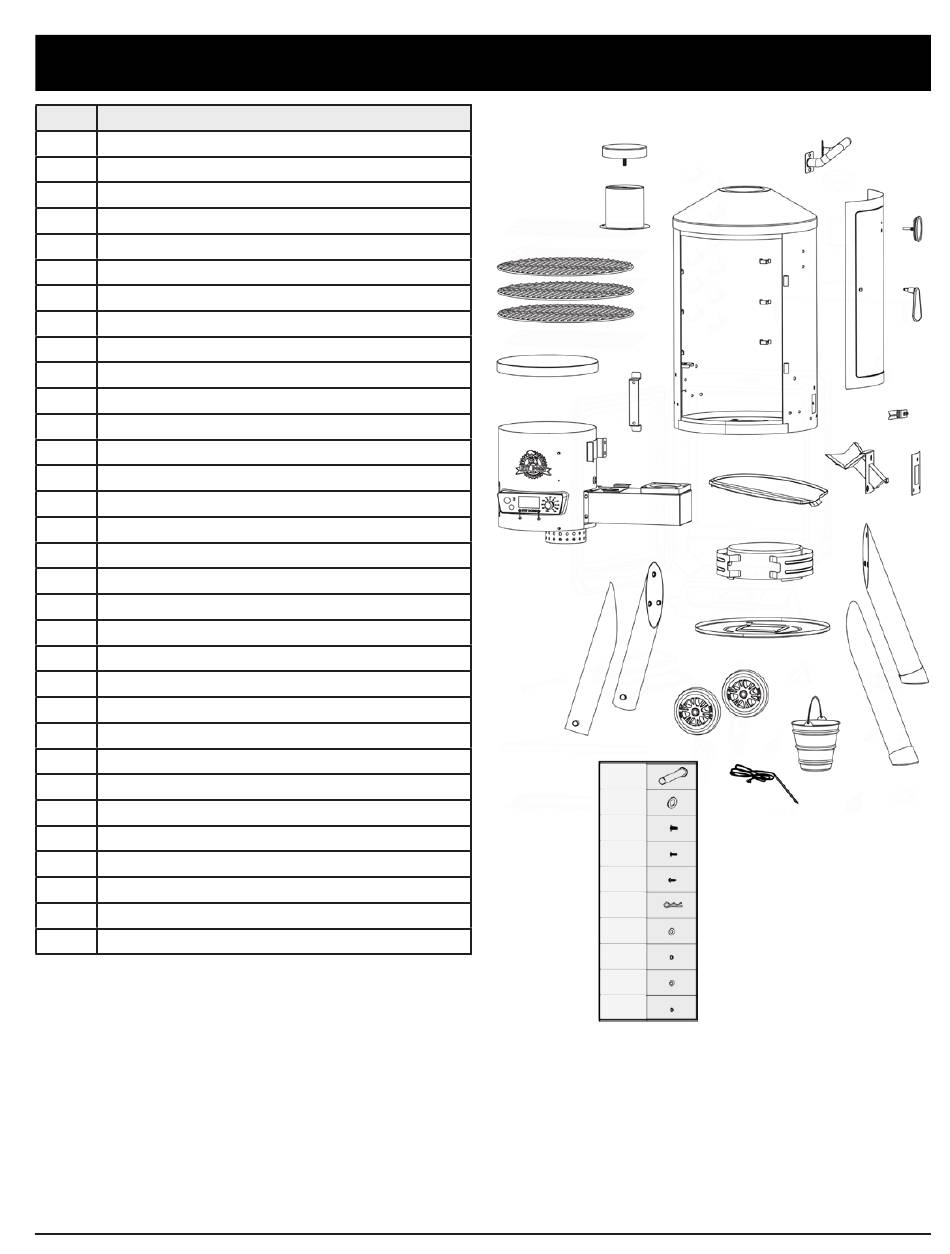

REPLACEMENT PARTS
1-A
4-A
2-A
3-A
10-A
9-A
11-A
18-A
20-A
18-2
18-1
A-A
B-A
C-A
D-A
E-A
F-A
G-A
H-A
I-A
J-A
5-A
6-A
7-A
8-A
15-A
13-A
14-A
12-A
16-A
19-A
17-A
19-2
21-A
22-A
19-1
