SPLIT CASE PUMP MODULE
Assembly
For O-ring Seal
1. Position O-ring (11) in end cap seal (9) and position in end cap (1) as shown in Figure 7.5.
For Teflon Seal
1. Position O-ring (11) in end cap seal (9) and position in end cap (1) with O-ring against end cap (1).
2. Position end cap (1) on split case pump fabrication (3) and finger tighten by turning in a clockwise direction.
3. Finish tightening using spanner wrench supplied.
7.5.5.3 Key (Figure 7.5 Item 6)
Disassembly
1. Remove the Pump Module from the Motor/Base Module as described in section 7.5.5.1.
2. Remove two 8 - 32 x .25" long socket head cap screws (10) securing key (6) to split case pump fabrication (3).
3. Remove key (6).
Assembly
1. Position key (6) on split case pump fabrication (3) and secure with two 8 - 32 x .25" long socket head cap screws (10).
2. Install the Pump Module on the swing plate as described in section 7.4.
8
15 July, 2019
3
4
12
5
3
7
6

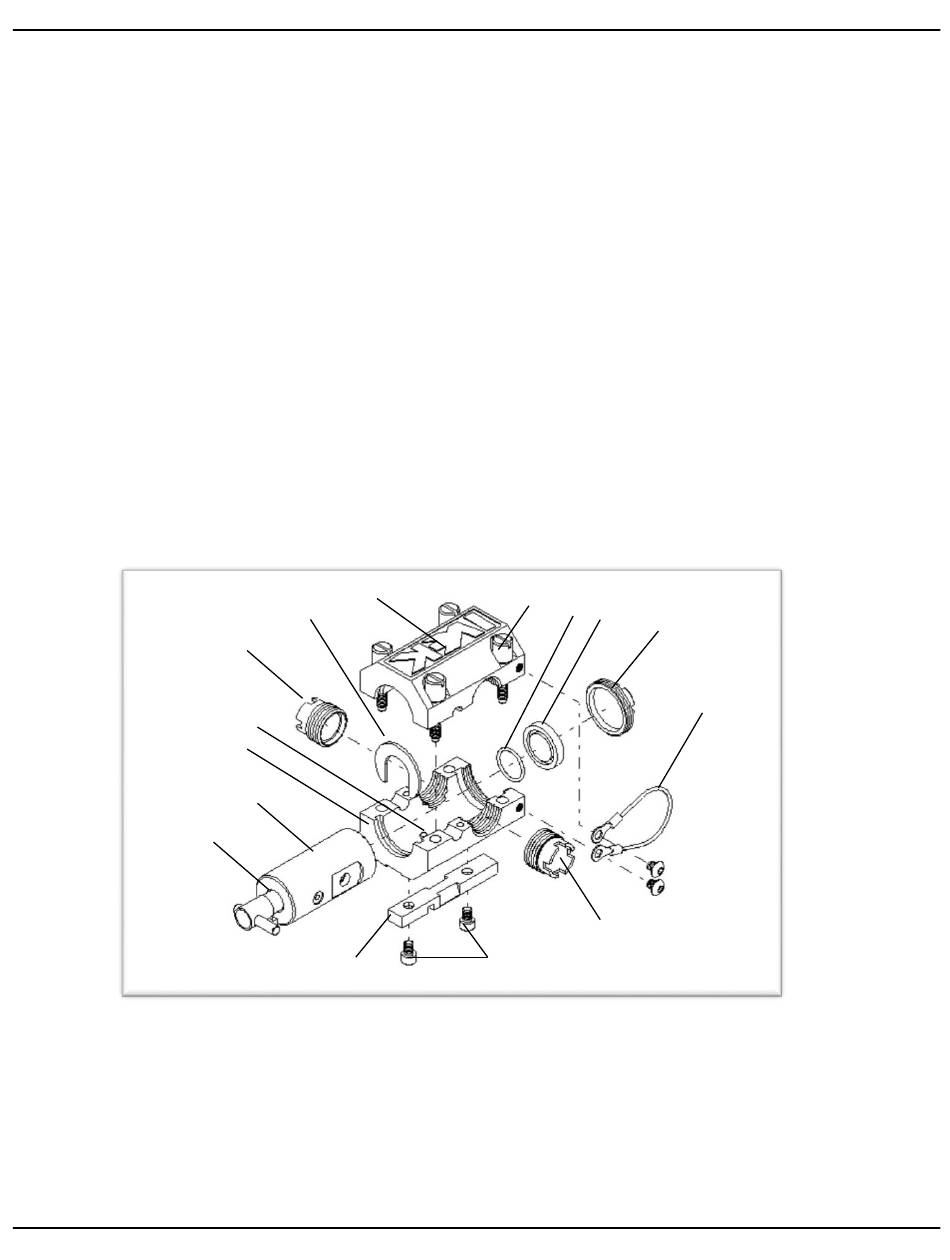

Figure 7.5 Split Case Pump Module
