SPLIT CASE PUMP MODULE
Lubricate the drive pin with IVEK Spindle Bearing Lubricant (IVEK part number 052046) prior to assembly. Failure
to lubricate the drive pin may result in damage to the Pump Module and Motor/Base Module.
1. Rotate the spindle on the Motor/Base Module so the spherical bearing is at the 3 O'clock position.
2. Extend the piston, which is housed in the Pump Module, approximately 2/3 of the way out of the cylinder.
3. Slide the drive pin, which is pressed into the piston end cap, into the center bore of the spherical bearing.
4. Position the Pump Module on the swing plate with the locating pin of the swing plate inserted into the slot of the
Pump Module mounting key.
5. Secure the Pump Module to the swing plate by tightening the two #10 socket head cap screws on the swing plate.
Figure 7.3 shows the inlet orientation of the Pump Module on both the Single Ended and Double Ended
Motor/Base Modules.
7.4

OPTIONS

IVEK Corporation offers a variety of options to best meet the customers' needs. Following is a list and description of available
options for the Pump Module. Refer to the Title Section of this manual for the list of options provided with this system.
7.4.1

Special Piston/Cylinder Bore Clearances or Modifications

For certain applications, special clearances are required for the piston/cylinder bore. IVEK Corporation determines these
clearances by performing application tests using the application fluid. Contact IVEK Corporation for more information.
For certain applications, special machined modifications are required for the piston/cylinder. IVEK Corporation determines these
modifications by performing application tests using the application fluid. Contact IVEK Corporation for more information.
Note connector
position
Inlet
15 July, 2019
NOTE
Inlet

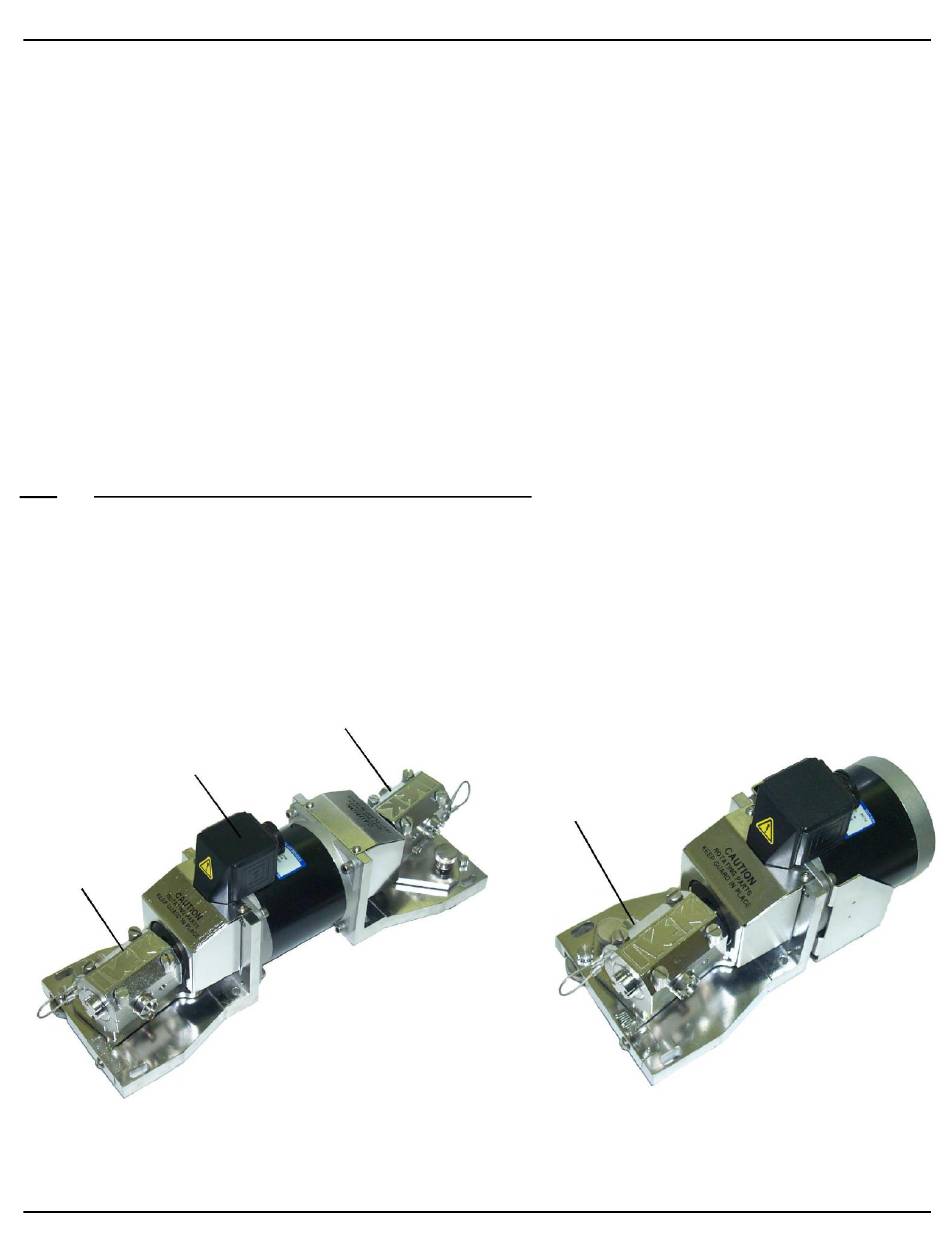

Figure 7.3 Split Case Pump Module Orientation
IVEK Corp.
Inlet
Page 7-4
P07R002P
