Summary of Contents for Xiaomi Mijia M187

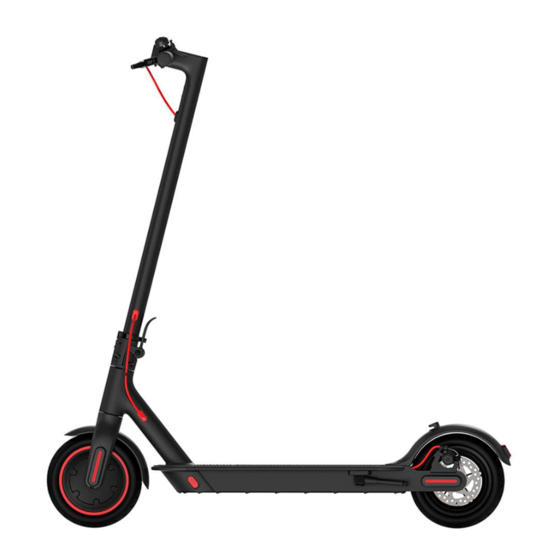

- Page 1 User Manual Foldable Electric Scooter...
-
Page 2: Table Of Contents
Thanks for choosing our product.Have fun with this electric scooter. Contents 1. The Device& Accessories .........02 2. Functions .............03 3. Assembling .............04 4. Charging ..............05 5. Driving Instructions..........05 6. Safety Recommendations ........07 7. Folding & Transportation ........12 8. Daily Maintenance and Storage.......13 9. -
Page 3: The Device& Accessories
1. The Device& Accessories Vehicle Accessories -------------------------------------------------------------------------------------- Fitting for wheels swap Screws x 2 Hex Wrench Charging Adapter... -
Page 4: Functions
Functions Mode Indicators The control panel has 4 LEDs, indicating a level of charge.During consumption of a battery, status indicators are lit, then flashes and final off one by another. If all 4 LEDs are lit, a battery level is 100%-86%;... -
Page 5: Assembling
3. Assembling the device 1).fix the steering rod and 2).Set handle bars vertical; open the parking bridge Using hex wrench in the packing 4. Testing the power switch after finish box to tighten the screws assembling on handle bar Power Button Press power button to turn on the vehicle. - Page 6 4.Charging scooter Open the cover connect the charger close the cover 5.Learning driving Please wear helmet and knee 1 .Power on and check the battery led pads when practice light...
- Page 7 2,.Stand on pedal with one leg, hit the ground with the other leg 3,.Step on the other leg when the scooter is moving, then press the accelerate button (only accelerate when the scooter speed is beyond 5km/h) 4.loose the accelerate button when slow down. Energy recovery systems will open itself to slow down.
-
Page 8: Safety Instructions
6 Safety Instructions It is not recommended driving on the rain It is recommend to slightly bend knees to better adjust to a rough road.If travelling rough road,stick speed (5-10km/h) Entering into any room, elevator, etc. Be careful not be injured by a door frame. Please not add speed when descending a hill... - Page 9 While walking with a scooter, do not press a speed knob When driving it is recommended to go around various obstacles on a road Please do not hang backpacks and When driving is forbidden to place one foot other heavy objects on handle bars on the running board or on the ground...
- Page 10 Preventing dangerous driving It is forbidden to leave a scooter on It is forbidden to sharply turn a a scooter wheel at high roadway for a residential area with a large motor vehicles or ride flow of passers-by in at a high speed It is forbidden to drive through puddles, Never rider a scooter more than or to which exceeds depth of 2cm.
- Page 11 Do not tread the back of the fender Do not touch the disc brake Do not driving leaving your hands Do not riding electric scooter up, down steps or jump over obstacles...
- Page 12 Satety Recommendations 1) Electric scooter - it is only a device for entertainment, not vehicle.But once you driving to public area, the electric scooter brings certian risks for your safety .For the sake of your safety and others safety, you must strictly follow the instructions, outlined in this driving manual .
- Page 13 6) Please do inspect scooter carefully before each use.If you find shattered parts ,battery life has decreased obviously, tires leak air or there are signs of excessive wear, uncharacteristic sounds when turning or other abnormal symptoms, please discontinue use of the scooter immediately , don't drive it reluctantly.
- Page 14 7.Fold and Transportation Fold Make sure scooter be off , hold the front pole , loosen a lock lever and lower a steering rack . Adding a steering rack in a horizontal position and secure it by inserting a hook through a special ring , which is located on the rear wheel mudguard .
- Page 15 8.Care and Storage Clean and store Electric Scooter If you find any stains on electric scooter housing, use a soft,damp cloth to wipe the vehicle;You can use toothpaste and a toothbrush to clean the scooter from stains, and then wipe it clean with a damp cloth. If you find scratched on parts , made of plastic, use sandpaper or other grinding materials for their polishing .
- Page 16 the device,to prevent an occurrence of an accident or fire of the vehicle; 4)Improper disposal of used batteries and accumulators is the cause of severe environmental pollution.Please,dispose of batteries in accordance with local laws.Please do not dispose of batteries together with food waste.Protecting the environment together! 5)After each use of the device,charge the battery to prolong its service life.
- Page 17 Adjusting a brake disc If a brake is very tight:using M5 hex wrench and scroll counterclockwise screws of brake disc tensioner pulley,slightly shorten a length of a tail brake cable,then tighten a tensioner pulley.If you think that brake is very free,loosen a tension pulley,pull a brake cable to slightly increase a length of its tail.Tighten a tension pulley.
-
Page 18: Charging
9.Parameters Operating parameters Name M187 parameters Pro Edition Dimensions Length x Width x 106 x 42 x 48 Height[1] (cm) Folded:Length 106 x 42 x48 Width x Height(cm) weight Gross weight 12kg 12.5kg Conditions Max load 16-50 Height(cm) 120-200 Main Parameters Max speed(km/h) Possibility in average condition [2] (km) - Page 19 Rated power(Wh) Smart battery Stress,insufficient voltage,short management system circuit,auto sleep/wake up,overheating protection,control of battery using Motor Parameters Rated power(W) Max power(w) power adaptor Rated power(W) parameters Rated input 100-240B voltage(VAC) Rated output voltage(VDC) Rated current(A) Certificate CCC,RoHs Charging time(h) Est . 3.5 Est.
-
Page 20: Presence Of Toxic And Harmful Substances
Presence of toxic and harmful substances Name Toxic and harmful substances elements Cr6+ PBDE Power adaptor Battery Connecti ng pipe Charging port Indicators Circuit board Motor Housing Date provided in accordance with provisions of SJ/T 11364. O:toxic and harmful substances in all components of the device are contained in an amount below the limit value,according to standard GB/T 26572-2011. -
Page 21: Warranty
12. Warranty Warranty service is carried out in accordance with the law on 《consumer rights》 and the 《Law on the quality of products.》The warranty service includes: Recommendation: use the packaging for safe transport of the device.We recommend keeping the original packaging within 15 days after receipt of goods. - Page 22 III. Non - warranty regulations 1. Authorized maintenance, misuse, collision, negligence, abuse, intake, accident. Improper use of non-product accessories, or tear up the modified label, anti-counterfeit mark. 2.The warranty period has expired; 3.Damage, caused by force majeure; 4.Failures, which do not correspond to the 《List of faults》of EcoRider service center;...
