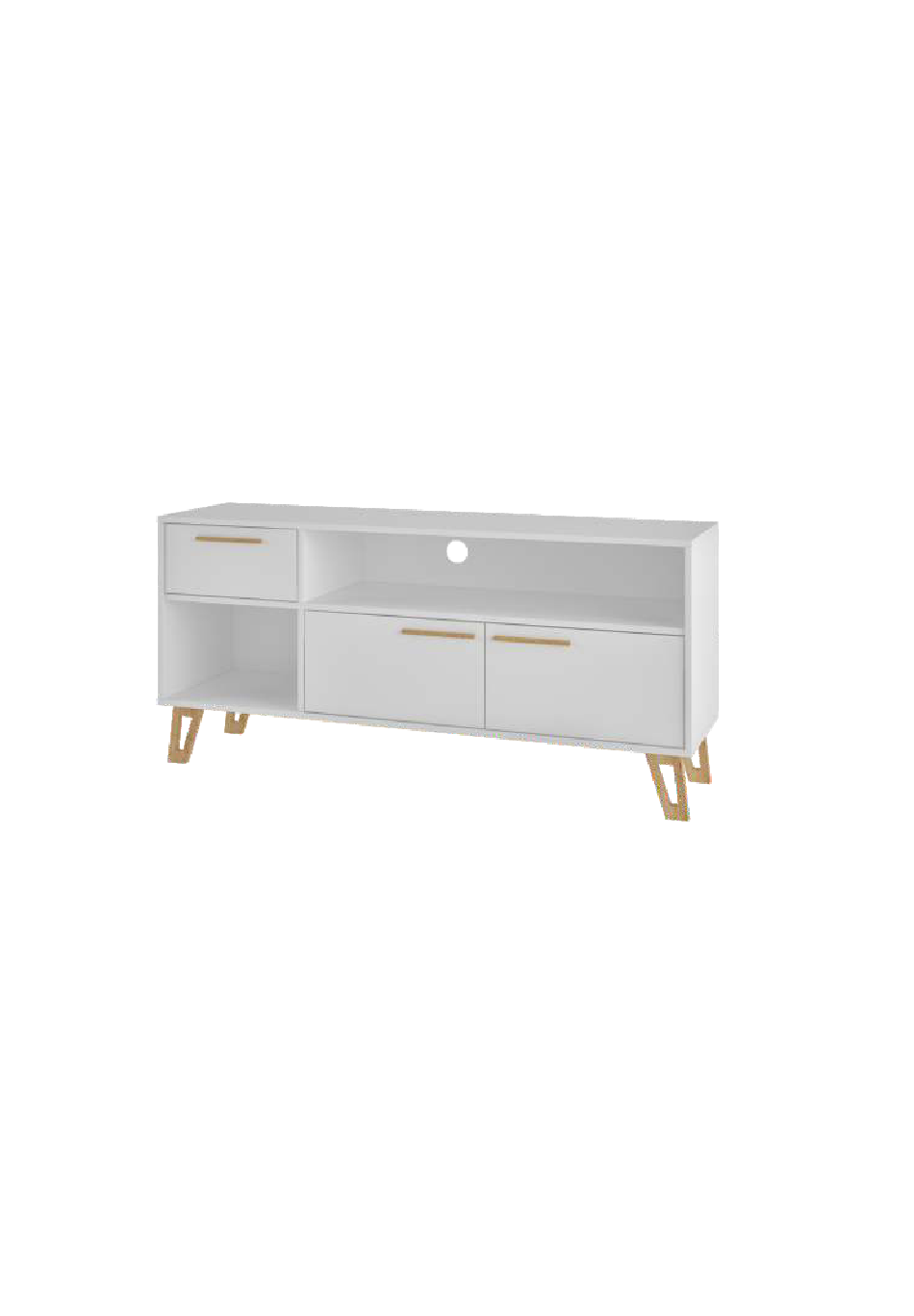

- Page 1 MANUAL DE MONTAGEM ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE COD BR: BR 378 COD US: 126AMC V : 00...
- Page 2 V : 00...
- Page 3 Sumário Summary Resumen Introdução Introduction Introducción Antes de começar Before starting Antes de comenzar Evite acidentes Avoid accidents Evitar accidentes Identificação das peças Identifying parts Identificación de las piezas Dimensões e ferramentas Dimensions and tools Dimensiones y herramientas Montagem do móvel Furniture assembly Montaje de la mueble Introdução...
- Page 4 Antes de começar Before starting Antes de comenzar Antes de começar a montagem prepare o ambiente, deixando-o completamente limpo e com bom espaço para iniciar o trabalho. Prepare the room before starting the assembly, leaving it completely clean and the area in good condition to start the work.
- Page 5 Dimensões e ferramentas Dimensions and tools Dimensiones y herramientas Dimensões: L: 1350 A:625 P:355 mm Dimensions: W: 53.14 H: 24.60 D: 13.97 inches Dimensiones: L: 1350 A: 625 P:355 mm USE ALCOHOL TO REMOVE PART NUMBERS V : 00...
- Page 6 COD BR: BM 90 COD US: 1249AMC PEÇA DESCRIÇÃO QUANT. PART DESCRIPTION PIEZA DESCRIPCIóN CANTIDAD BASE BASE BASE TOPO TAPA PRATELEIRA SHELF ESTANTE LATERAL ESQUERDA LEFT SIDE LATERAL IZQUIERDA LATERAL DIREITA RIGHT SIDE LATERAL DERECHA DIVISÓRIA MAIOR BIGGER DIVISION DIVISORIO MAYOR DIVISÓRIA MÉDIA MEDIUM DIVISION DIVISORIO MEDIO...
- Page 7 ACESSóRIOS INCLUÍDOS NA CAIXA 01 - HARDWARE INCLUDED IN BOX 01 - ACCESORIOS INCLUÍDOS EN LA CAJA 01 STICKER x 22 EF 000737 x 4 EF 000033 x 32 EF 000216 X 20 EF 000094 X 16 EF 000132 x 8 HANDLE X 3 EF 000112 X 6 EF 000044 X 4...
- Page 8 =3KG - 6.6 LB =5KG - 11 LB =10KG - 22 LB =16KG - 35 LB STEP 1 Fix hardware EF 000094, at pre-drilled holes indicated at piece 03. Insert hardware EF 000067 and EF 000033, at pre-drilled holes indicated at piece 03. EF 000067 EF 000094 V : 00...
- Page 9 STEP 2 Insert hardware EF 000094 into piece 02. STEP 3 Fix EF 000024 using the screw EF 000106. Insert hardware EF 000033 and EF 000094 into piece 05. STEP 4 Insert hardwares EF 000033 and EF 000696 into piece 06. Fix EF 000024 using the screw EF 000106.
- Page 10 STEP 5 Insert hardware EF 000094 into pieces 09,20 and 22. STEP 6 Fix EF 000044 using the screw EF 000106. Fix handle at the indicated place using hardware EF 000112. STEP 7 Insert hardware EF 000033 into piece 07,20,21 and 22. V : 00...
- Page 11 STEP 8 Insert hardware EF 000033 into piece 08. STEP 9 Insert hardwares EF 000033 and EF 000094 into piece 04. STEP 10 Connect pieces 20,22 and 21 fitting hardwares EF 000216 and EF 000094. After fitting, turn hardware EF 000216 to tighten. V : 00...
- Page 12 STEP 11 Fix piece 10 at part assembled trought the specific spaces in pieces 20 and 22. STEP 12 Fix piece 09 at part assembled previously. Turn hrdware EF 000216 until tighten. STEP 13 Fix handle at the indicated place using hardware EF 000112.
- Page 13 STEP 14 Use hardware EF 000737 to fix the feet at the furniture. STEP 15 Connect pieces 03,06,07 and 08, insert the hardware EF 000216 and turn until tighten. STEP 16 Connect pieces 04 and 05, insert the hardware EF 000216 and turn until tighten.
- Page 14 STEP 17 Fix piece 02 at the part assembled on step 16. STEP 18 Use hardware EF 0000132 to fix piece 01 at the part assembled on STEP 18. STEP 19 Use hardware EF 000168 to connect pieces 11 and 12 to the assembled furniture.
- Page 15 STEP 20 Fix piece 13 and 14 at the part assembled on step 19. Use the sticker to cover the apparent screws. V : 00...
- Page 16 V : 00...
