- Page 1 KIT FREE LC-LVC 24810470 KIT FREE LVC VAS/101 LVC/01 KIT FREE LC VAS/101 LC/01 www.Came.com English KIT FREE_LC-LVC 24810470 25-11-14_EN...
- Page 2 Components that qualify as recyclable waste feature the relevant symbol and the material’s abbreviation. CE Declaration - BPT S.p.A a Socio Unico declares that this device complies with directive 2004/108/EC. Original upon request. VAS/101 Installation The power supply unit must ALWAYS be installed horizontally.

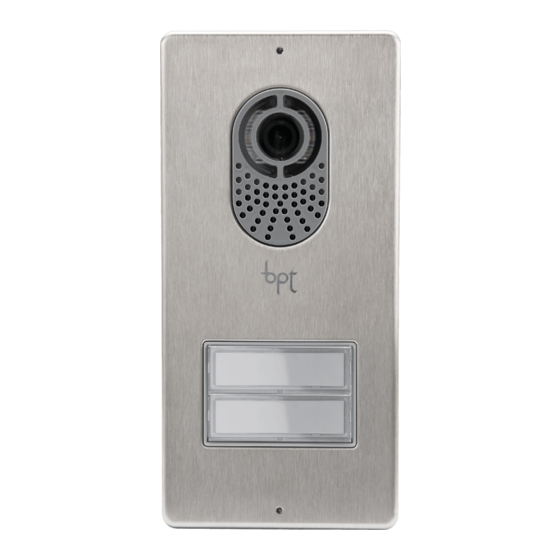

- Page 3 LC-01 LVC-01 Wall mounting Using the Allen screwdriver remove the cover . With the wall plugs provided fi x the entry panel at the desired height respecting the positioning of the lens of the surveillance camera Push through pipe , take off the terminal board cover make the connections.
- Page 4 Recessed installation (optional) Wall in the recessed box at the desired height, respecting the positioning of the lens of the surveillance camera . Push the pipe with the system conductors through one of the breaking points ( point A). When using the recessed box any possible deformations can be avoided by using the spacer provided ( point B).
- Page 5 Technical data Type LC/01-LVC/01 Power supply (VDC) 16-18 Absorption (mA) Consumption in stand-by mode (mA) Storage temperature (°C) -25 ÷ + 70 °C Operating temperature (°C) 0 ÷ +35 IP Degree Size of name cards (mm) 53x13x0,3 or 53x33x0,3 Camera LVC/01 Standard video PAL/NTSC...
- Page 6 Programming The entry panel is supplied already confi gured through a call put through to any receiver that has NEVER been programmed. It is possible, however, to add buttons or receivers as explained in the entry panel’s programming manual. Connection examples –...
- Page 7 KIT FREE_LC-LVC 24810470 25-11-14_EN...
- Page 8 KIT FREE_LC-LVC 24810470 25-11-14_EN...
