Bpt VAS/101 - Power Supply Installation Manual

Introduction

Attention.
Before installing the unit, carefully read the "WARNINGS FOR INSTALLATION" contained in the package.

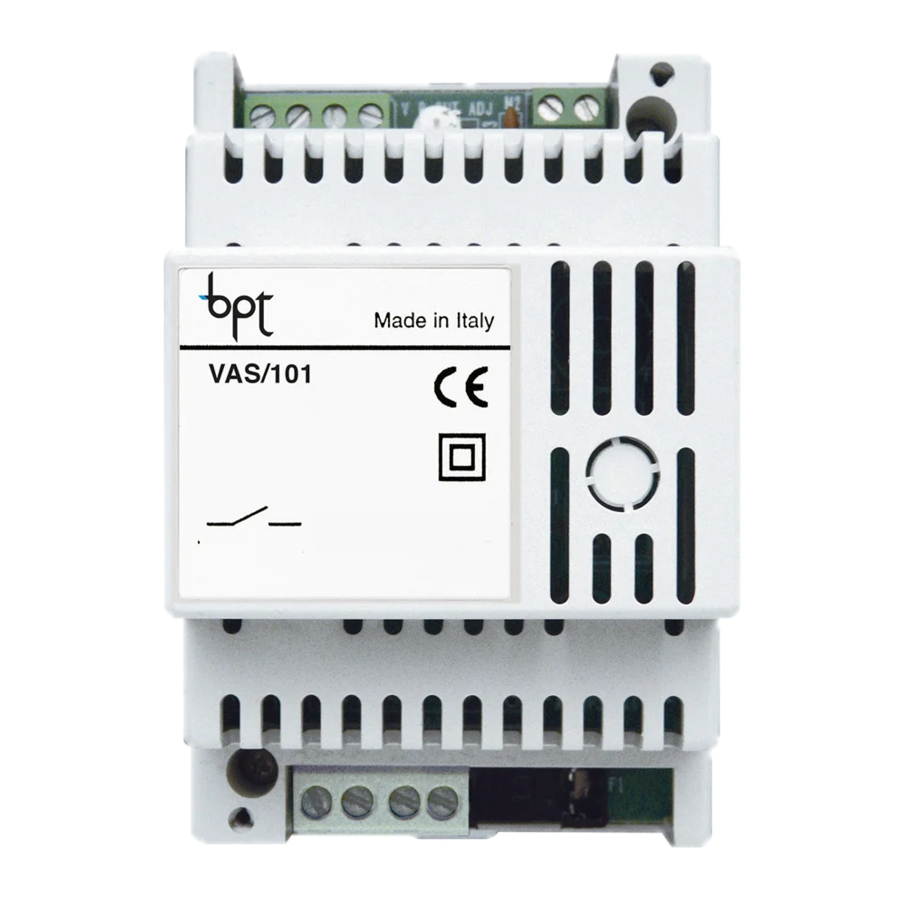

It consist of a card onto which there are the rectifier and the stabilizer.
It is capable of supplying 1 A at 18 V DC and is protected against overloading and short circuiting.
The VAS/101 can also be used as a supplementary power supply whenever the system requires it.
NOTE. When designing the installation calculate the number of power suppliers in relation to the total power consumption of all devices in the system.

Function of each terminal

Terminal block M1

Terminal block M2

Technical features

• Mains supply: 230V AC 50/60Hz. Selfresetting electric safety switch.
• Input current =200 mA_AC
• Dissipated power: 10W max.
• Nominal power supply: 18 VDC, 1A/0.5A, 1'/3'.
• Dimensions: 4 DIN units, low profile module, figure 1.
• Storage temperature: –25°C +70°C.
• Working temperature range: from 0°C to +35°C.
• IP Degree: IP 30.

The equipment can be installed without terminal covers into boxes provided with DIN rail (EN 50022).
Dimensions are shown below.

Or it can be wall-mounted using the DIN rail provided, applying as necessary the terminal covers and plugs provided.
Dimensions are shown below.

NOTE. The unit is protected against overloads and short-cicuits by a self-resetting thermal switch, inserted on the primary of the power supply transformer. Once the switch trips, operation is resumed automatically once the temperature of the transformer drops back below 85°C. Make sure the cause of the switch tripping is eliminated.

DISPOSAL

Do not litter the environment with packing material: make sure it is disposed of according to the regulations in force in the country where the product is used.
When the equipment reaches the end of its life cycle, take measures to ensure it is not discarded in the environment.
The equipment must be disposed of in compliance with the regulations in force, recycling its component parts wherever possible.
Components that qualify as recyclable waste feature the relevant symbol and the material's abbreviation.

BPT S.p. A.
Via Cornia, 1
33079 Sesto al Reghena/PN/Italy
http: www.bpt.it /e-mail: info@bpt.it
