Comparator output:
In the SLM mode, only the AP is selected as comparator band.
In the 1/1 OCT mode, only the AP or 1/1 octave band is selected as comparator band.

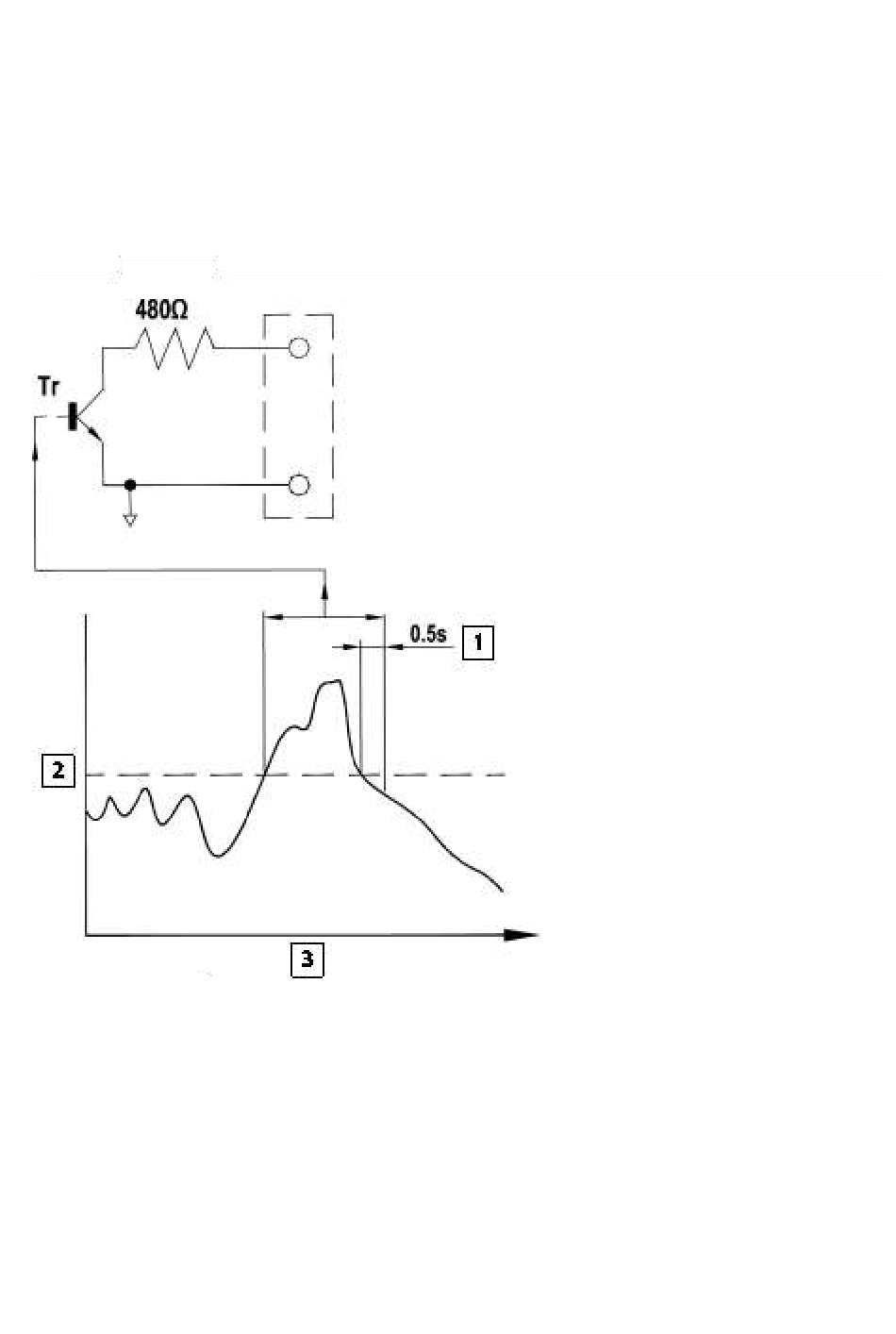

Comparator output: Open- collector output; band-level determination;
Max. applied voltage: 24VDC; Max. drive current: 50mADC
1.
Comparator signal output continues for 0.5 seconds after the signal crosses the threshold level
2. Comparator Level
3. Time
407790A-EN_V2.4 1/20
22
