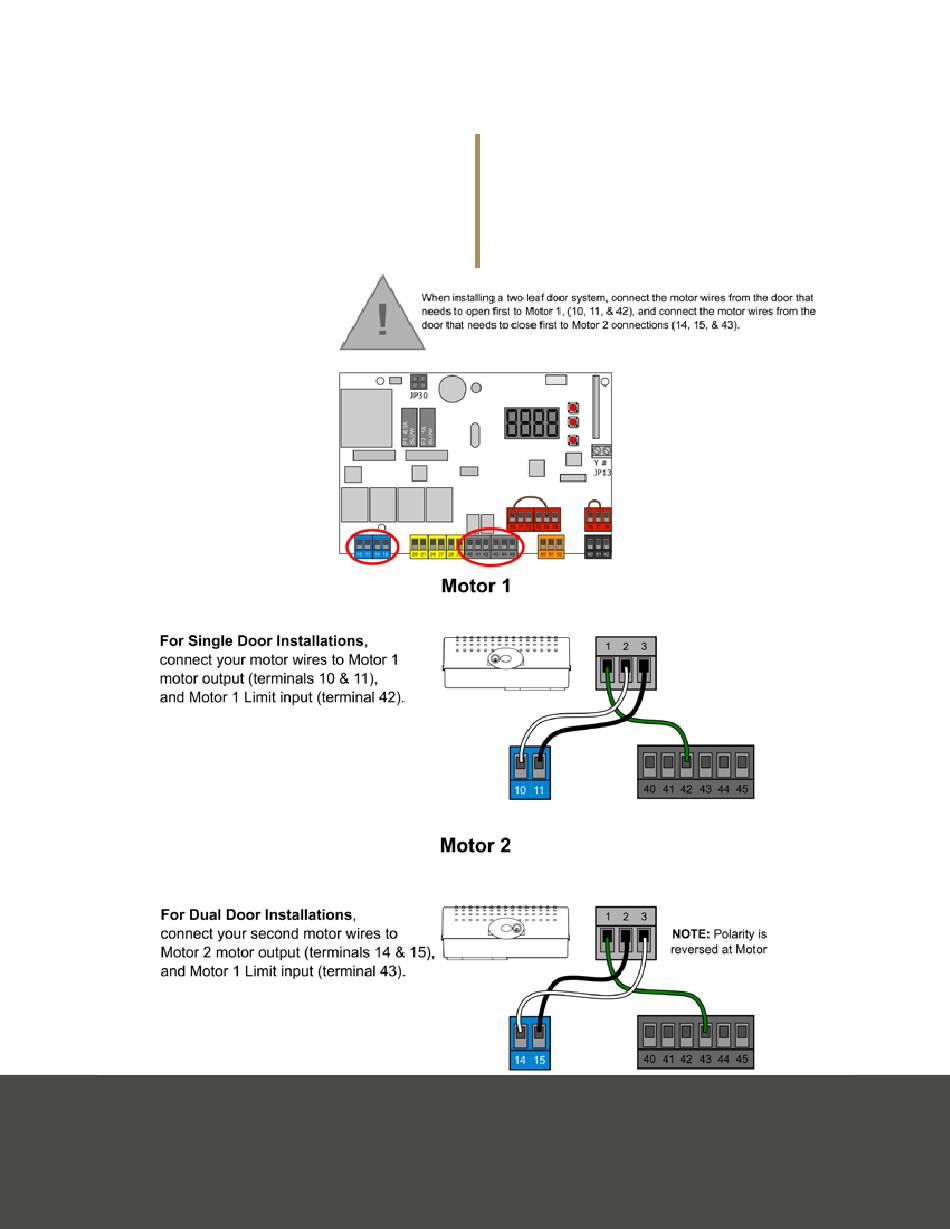

Wiring Simplified
Motor 1 is the door that will open first and close
last. For Single door application please only use
Motor 1 wiring. Connect Motor wires to motor
output terminal 10 and 11, and the
limit input at terminal 42.
Page 12
Wiring Simplified
Motor 2 is the door that will open last and close
first. For dual motor installations this will be your
second motor. Motor 2 output terminals are 14 and
15, and the limit input is terminal 43
