Mounting the Control
Unit
1. Locate the control housing containing the Thalia
UL panel.
2. At this time, plan where you would like to run the
wiring into the housing and predrill for stress-relief
connectors.
NOTE: Be careful not to damage the panel when
drilling into the housing! It is advisable to remove
the panel while drilling.
3. Mount the housing securely, using either screws
CONTROL UNIT SPECIFICA

Mounting the Control Unit

or drywall anchors
(not supplied).
Be careful not to
damage any wires
or components
of the board. (See
"Typical System
Overview" for
suggested location
of the housing).
TIONS

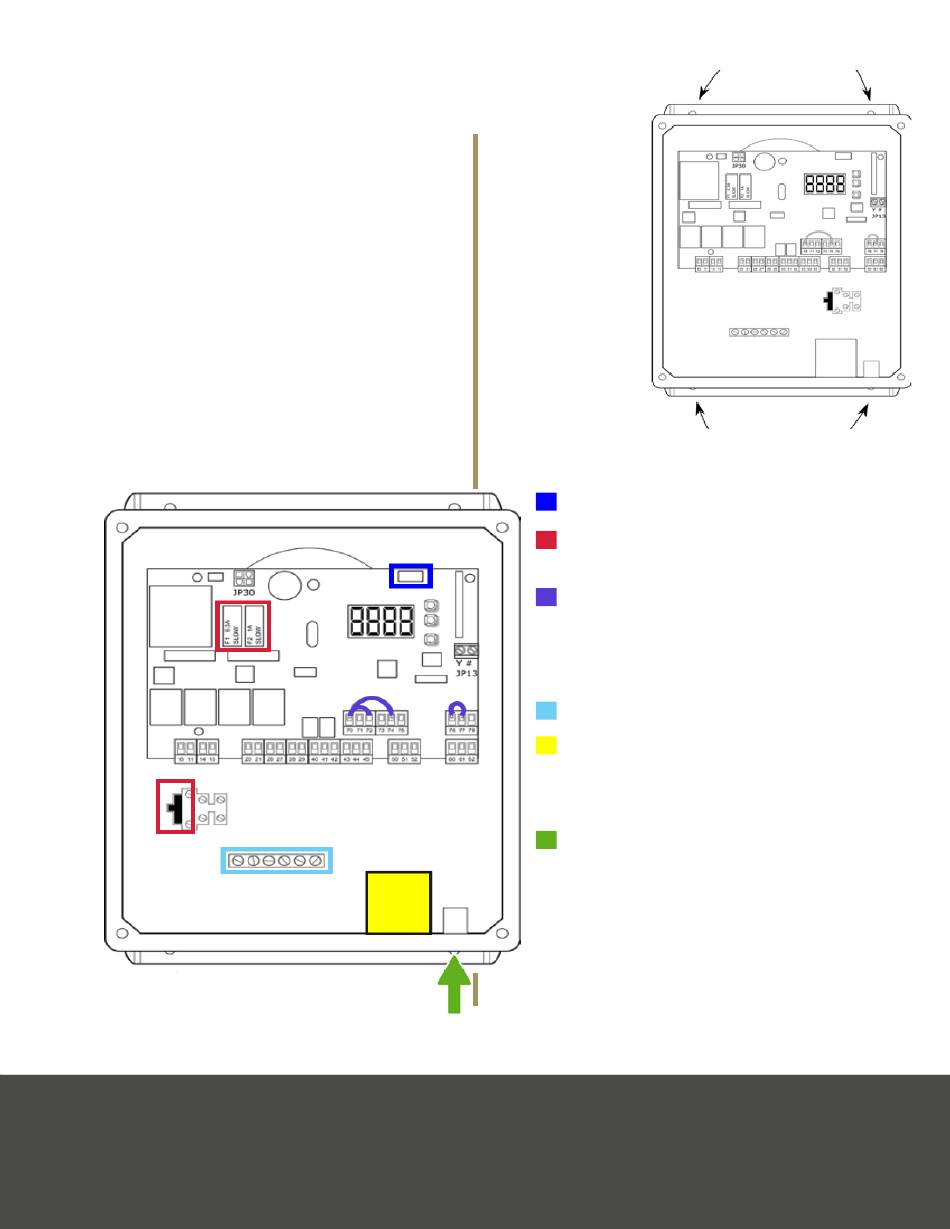

Specifications
Wifi Hub plug in location
Fuse locations (slow blow
only).
Jumper wires NOTE:
Once photo eyes are
wired in the jumper wire
from 70 + 72 MUST be
removed
Ground
UL alarm, NOTE: The
alarm will sound if the
force or photo eyes are
triggered twice in a row
Reset button. NOTE: If
the UL alarm is triggered
the unit will go into safety
mode, to reset the unit
you must press the button
on the underside of the
control unit.
Power fuse: 2
amp
Left control
board fuse:
630 amp
Right control
board fuse: 1
amp
