Summary of Contents for Hillyard Trident EX8

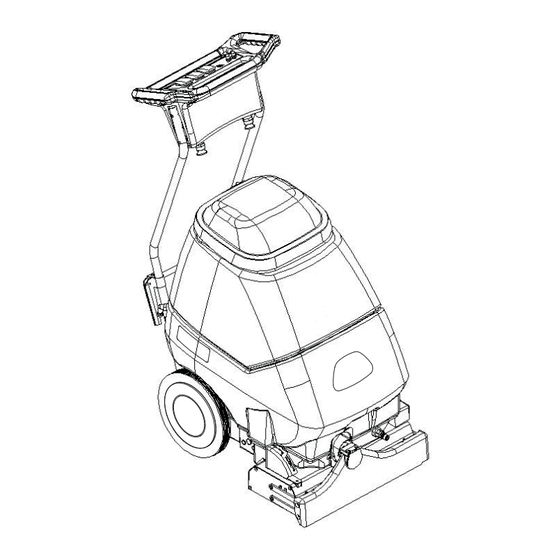

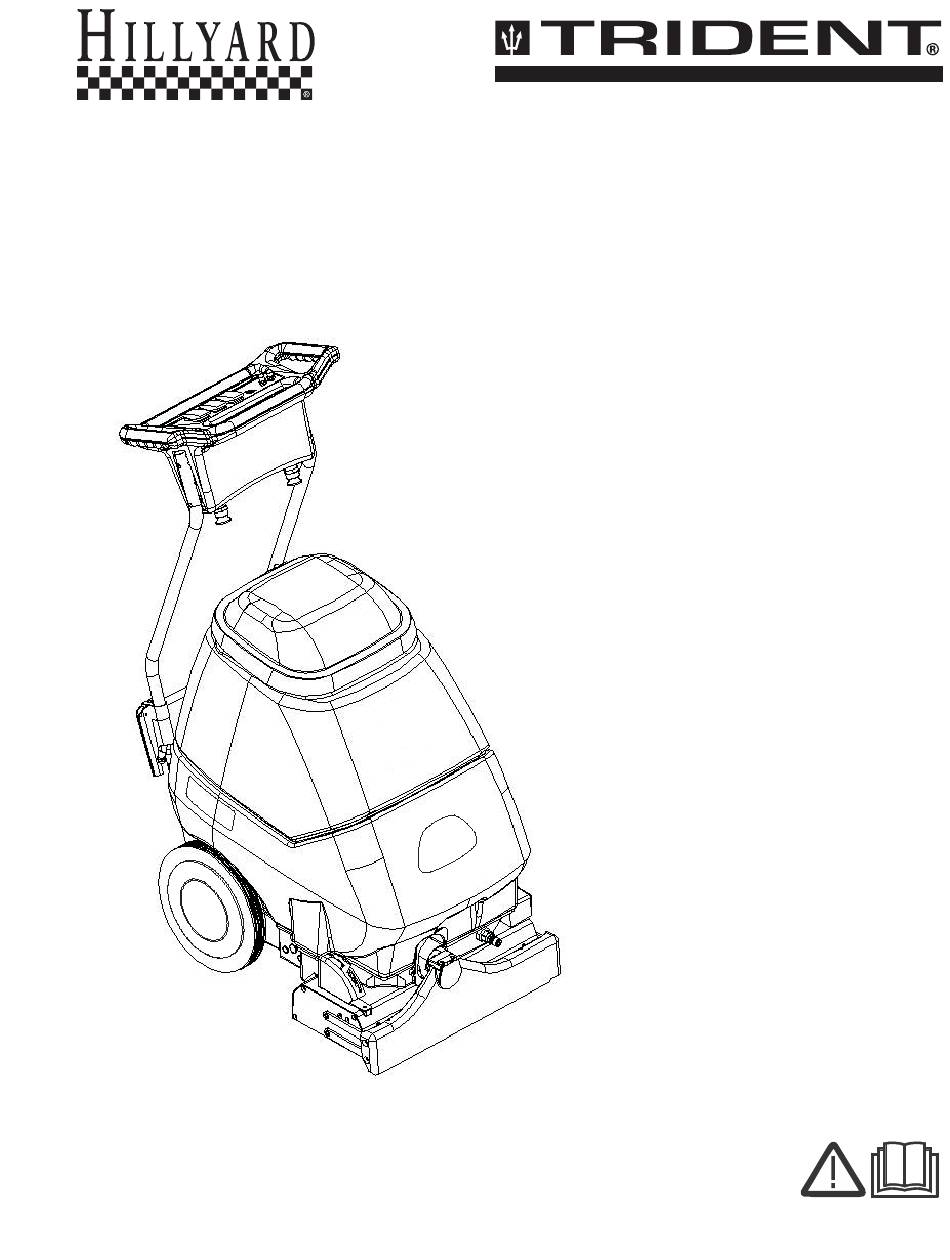

- Page 1 HILLYARD EX8 Carpet Extractor HIL56085 Operating Instructions (ENG) 86430340-A 10/02/18...
-
Page 2: Machine Data Label
The appliance is fitted with and a hand tool for cleaning upholstery and stairs. WARRANTY REGISTRATION Register through your Authorized Trident Dealer HIL56085 - Operators Manual - Trident EX8... -
Page 3: Table Of Contents
Solution Pump Replacement ....28 Troubleshooting Chart ..... . 29 HIL56085 - Operators Manual - Trident EX8... -
Page 4: How To Use This Manual
NOTE: The manual part number is located on the lower Phone Number: right corner of the front cover. Sales Representative: The model and serial number of your machine is located on the back of the machine. HIL56085 - Operators Manual - Trident EX8... -
Page 5: Safety
à la terre de votre prise murale. Ne modifiez pas la fiche fournie avec l'appareil : si elle ne correspond pas à la prise murale, faites installer une prise adéquate par un électricien qualifié. Utilisez-leuniquement sur des réceptacles protégés GFCI. HIL56085 - Operators Manual - Trident EX8... -
Page 6: Important Safety Instructions
Do not operate this machine near flammable fluids, dust or vapors. Maintenance and repairs must be done by qualified personnel. If foam or liquid comes out of machine, switch off immediately. READ AND SAVE THESE INSTRUCTIONS HIL56085 - Operators Manual - Trident EX8... - Page 7 L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié. Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement. CONSERVER CES INSTRUCTIONS HIL56085 - Operators Manual - Trident EX8...
-
Page 8: Hazard Intensity Level
In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. HIL56085 - Operators Manual - Trident EX8... - Page 9 LORS DE L’ENTRETIEN DE LA MACHINE Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées homologuées. HIL56085 - Operators Manual - Trident EX8...
-
Page 10: Safety Labels
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide. Warning Label 86242230 HIL56085 - Operators Manual - Trident EX8... - Page 11 Notes HIL56085 - Operators Manual - Trident EX8...
-
Page 12: Operations
(1) - 3 stage, 1 hp, 99 cfm (2.80 cubic meters/min.) Waterlift - 117” (297 cm) Brush (1) 15” (38.1 cm) Brush Speed 1000 rpm Solution Pump 100 PSI, Diaphragm style, Internal bypass Solution Capacity 8 gallons (30.3 ltr) Recovery Capacity 8 gallons (30.3 ltr) HIL56085 - Operators Manual - Trident EX8... - Page 13 à moins qu'ils aient été donnés la surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil. HIL56085 - Operators Manual - Trident EX8...
-
Page 14: Controls
Vacuum Motor Circuit Breaker. 15 amp. Breaker protecting vacuum motor Recovery Dump Hose. Facilitates draining dirty cleaning solution 11. Solution Dump Hose. Facilitates draining excess cleaning solution from solution tank. HIL56085 - Operators Manual - Trident EX8... -
Page 15: Components
5. Solution Tank. Used to hold cleaning solution. 6. Recovery Tank Dome. 7. Vacuum Shoe. 8. Brush Housing. 9. Front Lifting Handle. 10. Cleaning Solution Filter. 11. Solution Tank Fill Hose. HIL56085 - Operators Manual - Trident EX8... - Page 16 Operations Components 1. Solution Intake Cover. 2. Vacuum Intake Cover. 3. Float Shut-Off 4. Clean-Out Opening. 5. Pour Spout. 6. Lift Handle HIL56085 - Operators Manual - Trident EX8...
-
Page 17: Filling The Ex8
Non-Compatible Chemicals Alkalis Aldehydes Detergents Aromatic Hydrocarbons Hydroxides SP Butyls Soaps Carbon Tetrachloride Vinegar Clorox* Chlorinated Bleaches Chlorinated Hydrocarbons Lysol* Methyl Ethel Ketone (MEK) Perchorethylene (perc) Phenolics Trichlorethylene D-Limonene * Product Trademark Names HIL56085 - Operators Manual - Trident EX8... - Page 18 2. Remove the recovery tank from the machine. 3. Fill the Solution Tank with 8 gallons (30.3 ltr.) of water, that is no more than 140°F/60°C. 4. Add 8-16 oz. (237ml-473ml) of cleaning chemical. HIL56085 - Operators Manual - Trident EX8...
-
Page 19: Machine Operation
If circuit breaker trips raise brush to prevent damage to motor or carpet. 3. Turn on brush and vacuum motor switches ("ON"="I"). Turn on solution switch for continuous spray or set switch to intermittent to allow use of trigger switches. HIL56085 - Operators Manual - Trident EX8... -
Page 20: Cleaning Procedure
"on" position with one touch, and is typically used in large areas where long cleaning passes are made. Cleaning Procedure 1. Start at wall closest to power outlet. Pull straight back without pushing down on handle. HIL56085 - Operators Manual - Trident EX8... - Page 21 If you notice either condition, shut down the machine immediately. Empty recovery tank and/or add defoamer to recovery tank. 5. Use right side of machine for cleaning against walls. HIL56085 - Operators Manual - Trident EX8...
- Page 22 7. To speed drying, use an air moving fan. 8. Empty recovery tank by releasing dump hose. Use a hose with cold water to clean out the recovery tank. Drain solution tank after each use. RECOVERY DRAIN SOLUTION DRAIN HIL56085 - Operators Manual - Trident EX8...
-
Page 23: Accessory Tool Usage
3. Turn on vacuum motor switch and set solution switch to intermittent position. NOTE: Be sure brush switch is in off position and brush is in storage position. 4. Squeeze handle on accessory tool to begin cleaning. HIL56085 - Operators Manual - Trident EX8... -
Page 24: Maintenance
Check cables for fraying Check the spray bar (manifold) for damage; replace if broken or bent Check condition of vac shoe and frame for damage Check overall performance of machine Check vac motor carbon brushes HIL56085 - Operators Manual - Trident EX8... -
Page 25: Periodic Maintenance
To install brush, line up slots in brush core with pin in driver on drive belt side (operator's left) and push brush onto driver. Then snap bearing end (opposite end) of brush into retaining clip. HIL56085 - Operators Manual - Trident EX8... -
Page 26: Vacuum Motor Replacement
6. Remove the vacuum motor. 7. Reverse process to install vacuum motor. [9.5 mm] Periodically check the length of the carbon brushes. Replace both carbon brushes when either is less than 3/8" (9.5mm) long. HIL56085 - Operators Manual - Trident EX8... -
Page 27: Belt Replacement
6. Remove the (3) screws that fasten the side plate to the brush housing to remove belt. NOTE: All components associated with driving the brush will come out with the side plate. 7. Reverse process to install belt. HIL56085 - Operators Manual - Trident EX8... -
Page 28: Solution Pump Replacement
5. Remove the (2) screws that fasten the pump to the frame. 6. Reverse process to install pump PUMP REPLACEMENT KITS SHURFLO 100 PSI 86026390 86161980 Switch Asm Diaphragm Bypass Valve Asm Pump Head Replacement 86235100 86258830 8251040 HIL56085 - Operators Manual - Trident EX8... -
Page 29: Troubleshooting Chart
Call for service. Brush Does Not Spin Brush switch off. Turn on brush switch. Brush circuit breaker tripped. Reset circuit breaker. Brush belt broken. Replace as necessary. Faulty brush motor. Call for service. HIL56085 - Operators Manual - Trident EX8...
