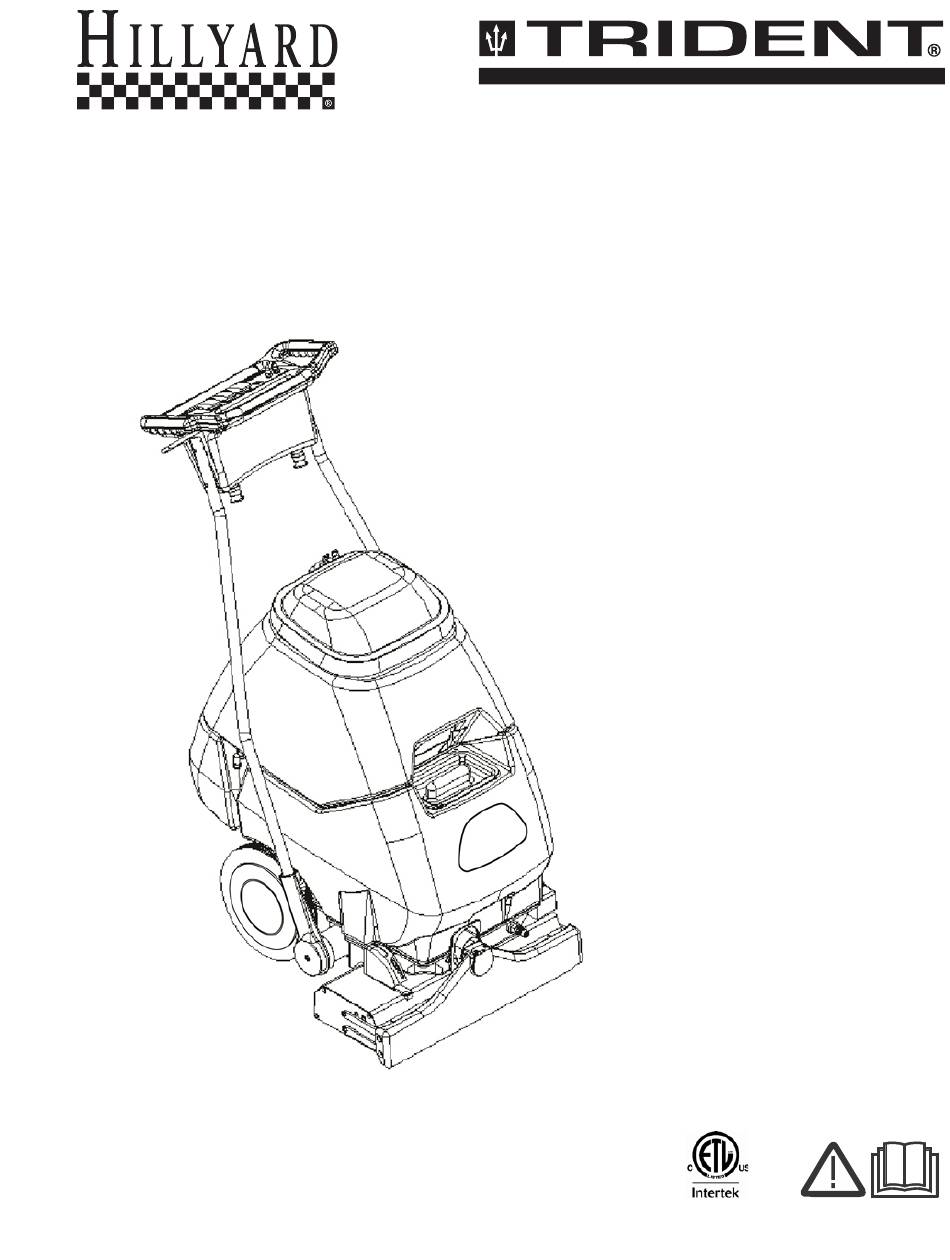

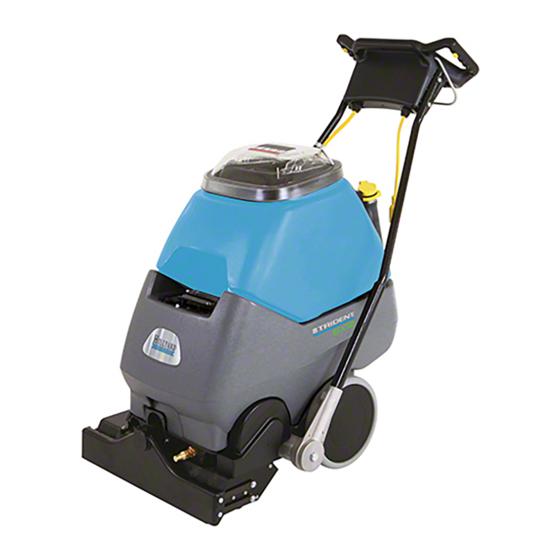

- Page 1 HILLYARD EX12 Carpet Extractor HIL56086 Operating Instructions (ENG) 86430350-A 10/02/18...
-
Page 2: Machine Data Label
The appliance is fitted with and a hand tool for cleaning upholstery and stairs. WARRANTY REGISTRATION Register through your Authorized Trident Dealer. HIL56086 - Operators Manual - Trident EX12... -
Page 3: Table Of Contents
Notes........31 HIL56086 - Operators Manual - Trident EX12... -
Page 4: How To Use This Manual
NOTE: The manual part number is located on the Address: lower right corner of the front cover. Phone Number: Sales Representative: The model and serial number of your machine is located on the back of the machine. HIL56086 - Operators Manual - Trident EX12... -
Page 5: Safety
: si elle ne correspond by a metal screw. pas à la prise murale, faites installer une prise adéquate par un électricien qualifié. Utilisez-le uniquement sur des réceptacles protégés GFCI. HIL56086 - Operators Manual - Trident EX12... -
Page 6: Important Safety Instructions
Do not operate this machine near flammable fluids, dust or vapors. Maintenance and repairs must be done by qualified personnel. If foam or liquid comes out of machine, switch off immediately. READ AND SAVE THESE INSTRUCTIONS HIL56086 - Operators Manual - Trident EX12... - Page 7 L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié. Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement. CONSERVER CES INSTRUCTIONS HIL56086 - Operators Manual - Trident EX12...
-
Page 8: Hazard Intensity Level
In Flammable or Explosive areas. In areas with possible falling objects WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. HIL56086 - Operators Manual - Trident EX12... - Page 9 LORS DE L'ENTRETIEN DE LA MACHINE : Éviter les pièces mobiles. Ne pas porter de vêtements, vestes, chemises ou manches vagues lors de l'entretien de la machine. Utiliser les pièces de rechange approuvées par le fabricant. HIL56086 - Operators Manual - Trident EX12...
-
Page 10: Safety Labels
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapid 86242230 Warning Label HIL56086 - Operators Manual - Trident EX12... - Page 11 Notes HIL56086 - Operators Manual - Trident EX12...
-
Page 12: Operations
3 stage, 1 hp, 99 cfm (2.80 cubic meters/min.), Waterlift 117 inches (297 cm) Brush 18 inches (45.7 cm) Brush Speed 1000 rpm Solution Pump 100 PSI, Diaphragm style, Internal bypass Solution Capacity 12 gallons (45.5 ltr) Recovery Capacity 12 gallons (45.5 ltr) HIL56086 - Operators Manual - Trident EX12... - Page 13 à moins qu'ils aient été donnés la surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil. HIL56086 - Operators Manual - Trident EX12...
-
Page 14: Components / Controls Locations
8. Brush Motor Circuit Breaker. 6 amp. Breaker protecting brush motor. 9. Vacuum Motor Circuit Breaker. 15 amp. Breaker protecting vacuum motor. 10. Recovery Dump Hose. Facilitates draining dirty cleaning solution. HIL56086 - Operators Manual - Trident EX12... - Page 15 6. Solution Dump Hose. Facilitates draining excess cleaning solution from solution tank. 7. Recovery Tank Dome. 8. Solution Tank Lid. 9. Solution Tank Fill Hose. 10. Vacuum Shoe. 11. Brush Housing. 12. Front Lifting Handle. 13. Cleaning Solution Filter. HIL56086 - Operators Manual - Trident EX12...
- Page 16 Operations Components 1. Solution Intake Cover. 2. Vacuum Intake Cover. 3. Float Shut-Off. 4. Clean-Out Opening. 5. Pour Spout. 6. Lift Handle. HIL56086 - Operators Manual - Trident EX12...
-
Page 17: Filling The Ex12
Non-Compatible Chemicals Alkalis Aldehydes Detergents Aromatic Hydrocarbons Hydroxides SP Butyls Soaps Carbon Tetrachloride Vinegar Clorox* Chlorinated Bleaches Chlorinated Hydrocarbons Lysol* Methyl Ethel Ketone (MEK) Perchorethylene (perc) Phenolics Trichlorethylene D-Limonene * Product Trademark Names HIL56086 - Operators Manual - Trident EX12... - Page 18 2. Remove solution tank lid. 3. Fill the solution tank with 12 gallons (45.5 ltr) of water, that is no more than 140°F (60°C). 4. Add 12oz-24oz (356ml - 711ml) of cleaning chemical. HIL56086 - Operators Manual - Trident EX12...
-
Page 19: Machine Operation
If circuit breaker trips raise brush to prevent damage to motor or carpet. 3. Turn on brush and vacuum motor switches ("ON"="I"). Turn on solution switch for continuous spray or set switch to intermittent to allow use of trigger switches. HIL56086 - Operators Manual - Trident EX12... - Page 20 7. This machine can be operated in either direction. a. For smaller areas operate the machine by pulling rearward. b. For larger unobstructed areas, flip the handle and use the machine's brush assisted propelling motion. HIL56086 - Operators Manual - Trident EX12...
-
Page 21: Cleaning Procedure
1 foot before ending cleaning pass. 1 ft. (30cm) 3. Push down on handle to raise vacuum shoe and brush before moving to the next cleaning pass. Overlap brush contact area approximately 1inch. HIL56086 - Operators Manual - Trident EX12... - Page 22 Empty recovery tank and/or add de-foamer to recovery tank. 6. Use right side of machine for cleaning against walls. 7. After cleaning, turn off all controls, return brush to storage position and carefully unplug machine. HIL56086 - Operators Manual - Trident EX12...
- Page 23 8. To speed drying, use an air mover fan. 9. Empty recovery tank by releasing dump hose. Use a hose with cold water to clean out the recovery tank. Also drain solution tank after each use. HIL56086 - Operators Manual - Trident EX12...
-
Page 24: Accessory Tool Usage
3. Turn on vacuum motor switch and set solution switch to intermittent position. NOTE: Be sure brush switch is in off position and brush is in storage position. 4. Squeeze handle on accessory tool to begin cleaning. HIL56086 - Operators Manual - Trident EX12... -
Page 25: Maintenance
Check cables for fraying. Check the spray bar (manifold) for damage; replace if broken or bent. Check condition of vacuum shoe and frame for damage. Check overall performance of machine. Check vacuum motor carbon brushes. HIL56086 - Operators Manual - Trident EX12... -
Page 26: Periodic Maintenance
To install brush, line up slots in brush core with pin in driver on drive belt side (operator's left) and push brush onto driver. Then snap bearing end (opposite end) of brush into retaining clip. HIL56086 - Operators Manual - Trident EX12... -
Page 27: Vacuum Motor Replacement
4. Locate the vacuum motor wires and disconnect at the connector. Close the solution tank. 5. Remove the (6) screws holding the vacuum motor cover to the solution tank. 6. Remove the vacuum motor. 7. Reverse process to install vacuum motor. HIL56086 - Operators Manual - Trident EX12... -
Page 28: Belt Replacement
6. Remove the (3) screws that fasten the side plate to the brush housing to remove belt. NOTE: All components associated with driving the brush will come out with the side plate. 7. Reverse process to install belt. HIL56086 - Operators Manual - Trident EX12... -
Page 29: Solution Pump Replacement
4. Remove solution hoses from fittings in pump. 5. Remove the (2) screws that fasten the pump to the frame. 6. Reverse process to install pump. HIL56086 - Operators Manual - Trident EX12... -
Page 30: Troubleshooting
Call for service. Brush switch off. Turn on brush switch. Brush circuit breaker tripped. Reset circuit breaker. Brush Does Not Spin Brush belt broken. Replace as necessary. Faulty brush motor. Call for service. HIL56086 - Operators Manual - Trident EX12... -
Page 31: Notes
Notes HIL56086 - Operators Manual - Trident EX12...
