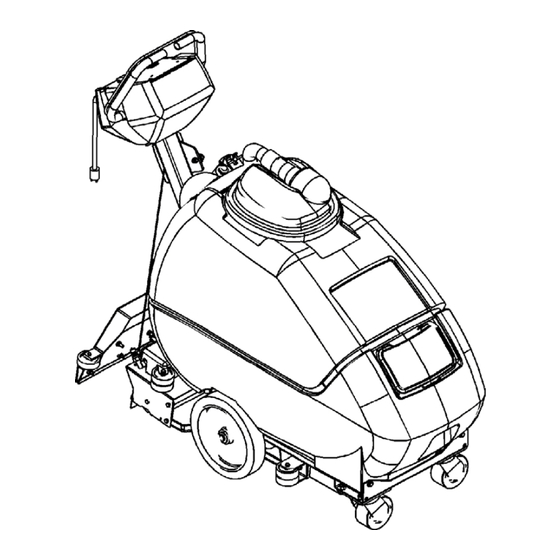

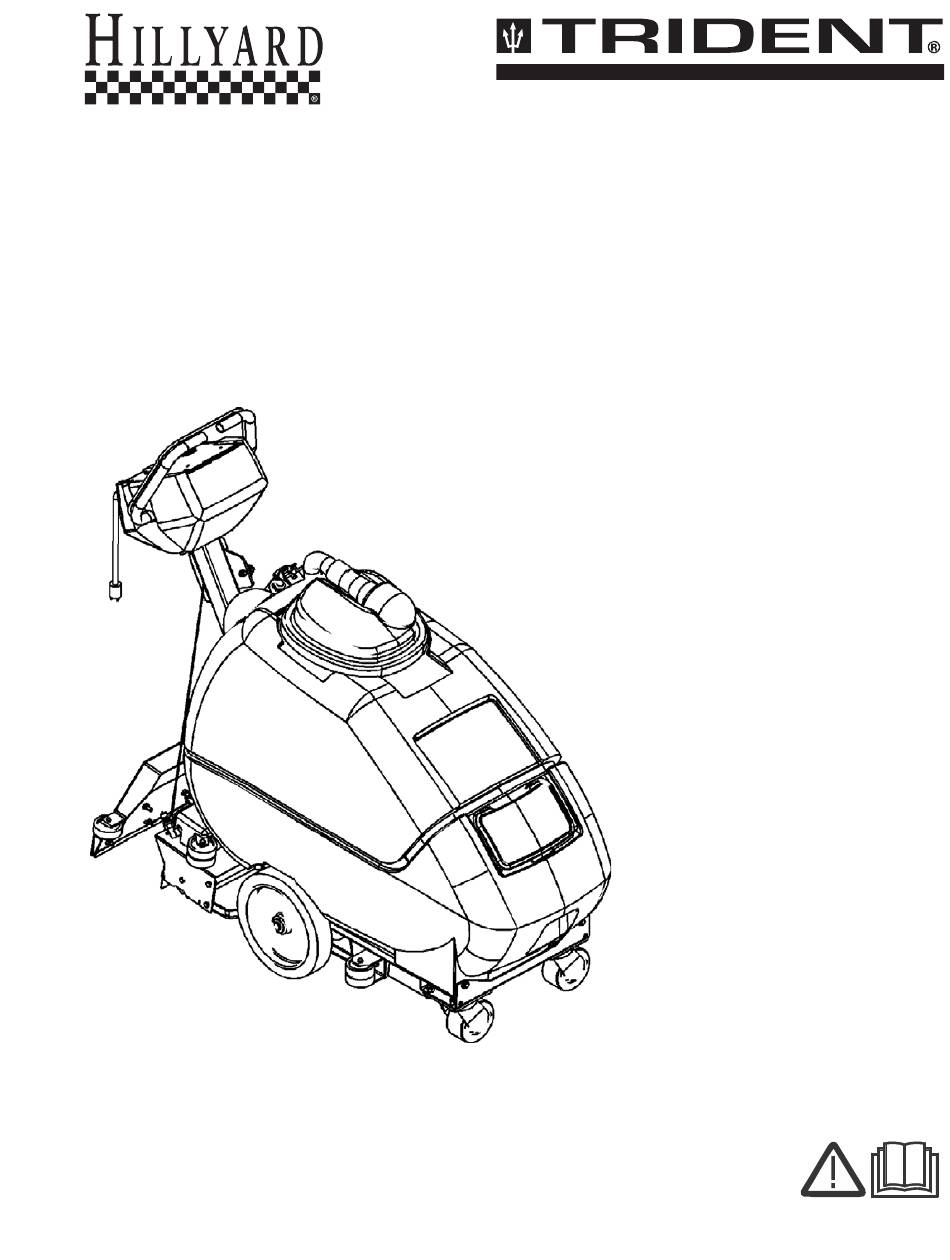

- Page 1 HILLYARD EX20 Carpet Extractor HIL56087 Operating Instructions (ENG) 86430360-A 10/02/18...
-
Page 2: Machine Data Label
The appliance is fitted with and a hand tool for cleaning upholstery and stairs. WARRANTY REGISTRATION Register through your Authorized Trident Dealer. HIL56087 - Operators Manual - Trident EX20... -
Page 3: Table Of Contents
Service Schedule ......24 Troubleshooting ......25 HIL56087 - Operators Manual - Trident EX20... -
Page 4: How To Use This Manual
Phone Number: Sales Representative: The model and serial number of your machine is on the control panel support arm, located on the back of the machine. HIL56087 - Operators Manual - Trident EX20... -
Page 5: Safety
FIGURE C Note: Adaptors are not allowed in Canada. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code. HIL56087 - Operators Manual - Trident EX20... -
Page 6: Important Safety Instructions
Do not operate this machine near flammable fluids, dust or vapors. Maintenance and repairs must be done by qualified personnel. If foam or liquid comes out of machine, switch off immediately. READ AND SAVE THESE INSTRUCTIONS HIL56087 - Operators Manual - Trident EX20... - Page 7 L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié. Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement. CONSERVER CES INSTRUCTIONS HIL56087 - Operators Manual - Trident EX20...
-
Page 8: Hazard Intensity Level
In Flammable or Explosive areas. In areas with possible falling objects WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. HIL56087 - Operators Manual - Trident EX20... - Page 9 LORS DE L’ENTRETIEN DE LA MACHINE : Éviter les pièces mobiles. Ne pas porter de vêtements, vestes, chemises ou manches vagues lors de l'entretien de la machine. Utiliser les pièces de rechange approuvées par le fabricant. HIL56087 - Operators Manual - Trident EX20...
-
Page 10: Safety Labels
POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, UTILISER À L'INTÉRIEUR SEULEMENT ET TOUJOURS INSTALLER LE FLOTTEUR AVANT TOUTE OPÉRATION DE RAMASSAGE DANS DES CONDITIONS HUMIDES. UTILISER SEULEMENT DU DÉTERGENT CONÇU POUR LE NETTOYAGE DES TAPIS. HIL56087 - Operators Manual - Trident EX20... - Page 11 Notes HIL56087 - Operators Manual - Trident EX20...
-
Page 12: Operations
22” (56 cm) wide, cast urethane floating and pivoting. Wheels: Front: (2) 4” dia. (10 cm) wheels by 2.5” Rear: (2) 10” dia. (25 cm) wheels by 2” Solution Spray 2 quick change jets Power Cable 75’ (23m) (12 gauge) HIL56087 - Operators Manual - Trident EX20... - Page 13 à moins qu'ils aient été donnés la surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil. HIL56087 - Operators Manual - Trident EX20...
-
Page 14: Controls
C. To move the machine backwards release the control lever and then pull back on main handle NOTE: The machine drive assembly is disengaged. Do not pull back on the control lever HIL56087 - Operators Manual - Trident EX20... -
Page 15: Filling The Solution Tank
Suitable Chemicals Non-Compatible Chemicals Alkalis Aldehydes Detergents Aromatic Hydrocarbons Hydroxides SP Butyls Soaps Carbon Tetrachloride Vinegar Clorox* Chlorinated Bleaches Chlorinated Hydrocarbons Lysol* Methyl Ethel Ketone (MEK) Perchorethylene (perc) Phenolics Trichlorethylene * Product Trademark Names HIL56087 - Operators Manual - Trident EX20... - Page 16 1. Remove electrical cord from recovery tank. 2. Remove dome from solution tank. 3. Fill the solution tank with 20 gallons (75 ltr) of water, that is no more than 140°F/60°C. 4. Add 20-40oz. (591ml-1183ml) of cleaning chemical. HIL56087 - Operators Manual - Trident EX20...
-
Page 17: Machine Operation
5. Replace dome on solution tank. Machine Operation 1. Plug cord into grounded outlet. 2. Adjust brush to proper setting (see Brush Adjust- ment). Lower the brush. 3. Turn both the power and brush switches “ON”. HIL56087 - Operators Manual - Trident EX20... - Page 18 Operations Machine Operation - continued 4. Adjust speed control knob to desired speed. 5. Lower brush assembly to floor. 6. Depress lever to propel machine forward and to activate the brush and spray. HIL56087 - Operators Manual - Trident EX20...
-
Page 19: Brush Adjustment
4. Push down on squeegee assembly. 1. Adjust the vacuum shoe assembly to 90°. 5. Adjust brush to correct height for carpet. 2. Adjust brush so that it is touching the carpet. 3. Raise handle to “Storage Position”. HIL56087 - Operators Manual - Trident EX20... -
Page 20: Cleaning
Foam! Turn off machine and add defoamer to recovery tank only. Mousse! Éteignez la machine et ajoutez le produit antimousse au réservoir de récupération unique- ment 3. Use right side of machine for cleaning against walls. HIL56087 - Operators Manual - Trident EX20... - Page 21 5. To speed drying, use an air mover fan. 6. Empty recovery tank by releasing dump hose (A). Use a hose with cold water to clean out the recovery tank (B). Drain solution tank after each use. HIL56087 - Operators Manual - Trident EX20...
-
Page 22: Accessory Tool Usage
1. Insert collar over fitting. 2. Insert adapter (86089080) into vac shoe hose, then insert accessory tool cuff onto adapter. 3. Turn main power switch “ON” 4. Squeeze handle on accessory tool to begin cleaning. HIL56087 - Operators Manual - Trident EX20... -
Page 23: Maintenance
5. Check for and remove any lint or debris around vac shoe. 6. Check spray jets for full spray pattern. 7. Remove lint and dirt build-up from brush and housing. NOTE: Always store machine with brush in "Store" position. HIL56087 - Operators Manual - Trident EX20... -
Page 24: Service Schedule
Check cables for fraying Check the spray bar (manifold) for damage; replace if broken or bent Check condition of vac shoe and frame for damage Check overall performance of machine Check vac motor carbon brushes HIL56087 - Operators Manual - Trident EX20... -
Page 25: Troubleshooting
Machine will not Propel When to higher speed. Handles are Squeezed Faulty speed control board. Call for service. Faulty propel motor. Call for service. Solution/Brush Turn on When Faulty micro switch. Call for service. Brush Switch Engaged HIL56087 - Operators Manual - Trident EX20...
