Summary of Contents for Krell Industries Vanguard Series

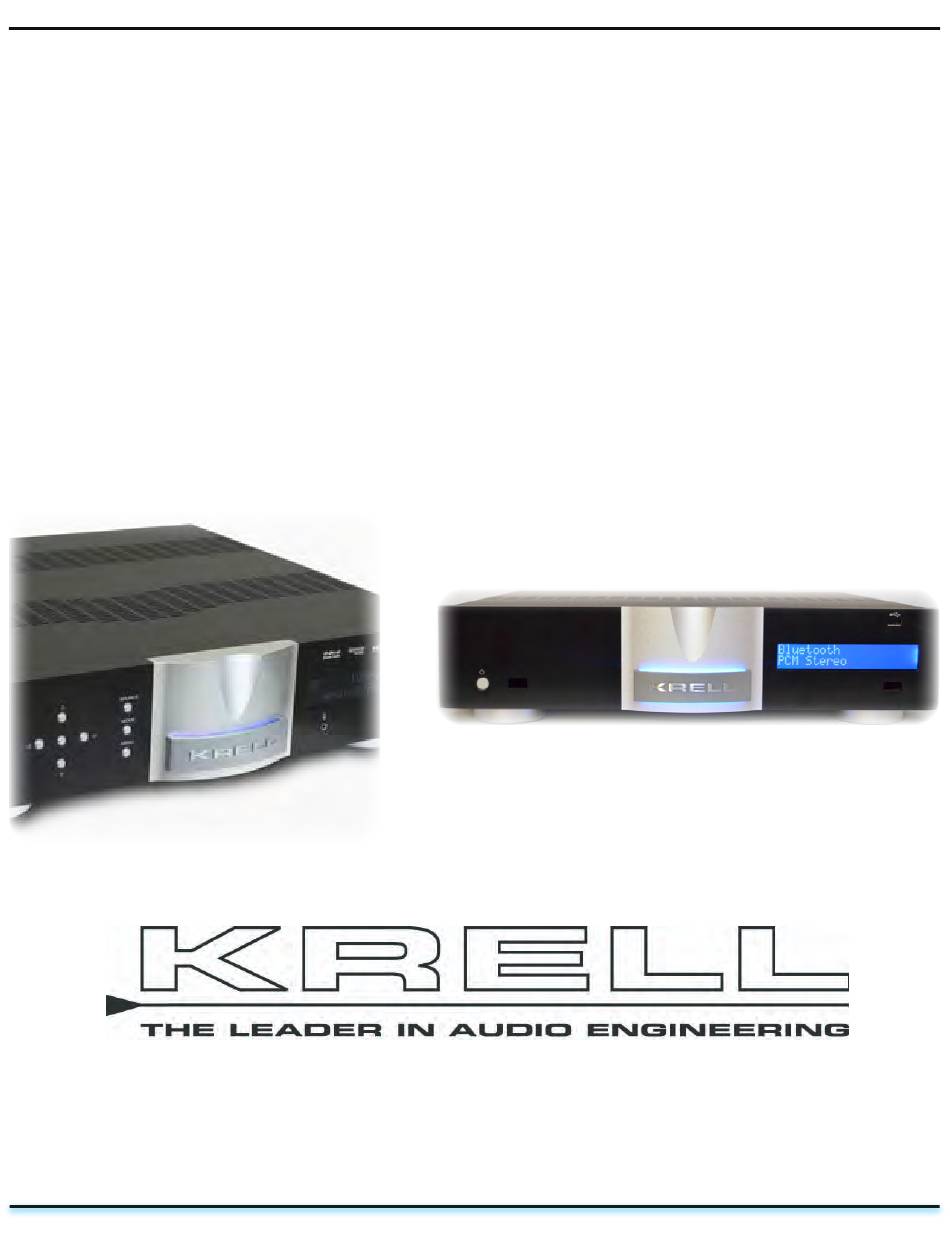

  • Page 1 Vanguard Family - Owner's Reference 4K UHD Processor OWNER’S REFERENCE Vanguard Universal DAC w/Digital Preamp Option (DAC) Vanguard Integrated Amplifier (VIA) Digital Vanguard Integrated Amplifier (DVI) www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 2: Table Of Contents

    (VIA) Vanguard Integrated Amplifier Krell Contact Information_______________ (25) and Digital Vanguard Integrated Amplifier (DVI) - Rear Panel__________________ (9) *Roon and Spotify are only available on the DVI and DAC versions. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 3: Getting Started

    The remote control accesses all functions, and frayed ends, short circuits or cold solder joints. remote control connection options allow the Vanguard to be easily connected with other components. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 4 Please consult an authorized KRELL dealer or KRELL Industries to insure proper installation guidelines. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 5: (Dac) Vanguard Universal Dac

    ON position. The indicator illuminates blue when the Vanguard is in operational mode. Infared Sensor IR receives commands from the remote control. Make sure this is not obstructed. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 6: Rear Panel Diagram

    Vanguard into the stand-by or operational mode from The Vanguard is equipped with one coaxial and other components. The 12 V trigger output allows the one optical digital input. Vanguard to turn other components on or off. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 7: Remote Diagram

    Use the supplied Torx Screwdriver to remove the 4 battery panel Torx CD / DVD functions on other Krell products. screws (T10) then install the batteries. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 8: (Via) Vanguard Integrated Amplifier & Digital Vanguard Integrated Amplifier (Dvi) Front Panel

    Only active when optional digital module is installed. (Please see page 13 - mConnect App) Menu Button Use to access the menu functions of the Vanguard. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 9: (Via) Vanguard Integrated Amplifier And Digital Vanguard Integrated Amplifier (Dvi) - Rear Panel

    (S-1, S-2, or S-3 on Remote) inputs via RCA connectors. The optional digital connections module adds one coaxial, one optical, two HDMI inputs and one HDMI output. VIA / DVI www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 10 Source button is pressed on the remote or front panel. The new source name navigation buttons or keys to highlight one of the menu options. Press the Enter button or key to select. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 11 Press the Enter button to see the NOTE: Turn down volume on surround processor value for the displayed parameter. before setting Operation Mode to DAC. Left Button Up Button Right Button Down Button www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 12: All Vanguards Software Update

    The default time setting is button to confirm change. not disabled which keeps the display always illumi- nated. Time out can be set between 15 and 129 seconds, in 15 second increments. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 13: Spotify Connect App

    The aptX® mark and the aptX logo are trademarks of found here: https://developer.spotify.com/esdk-third-party-licenses/ CSR plc or one of its group companies and may be registered in one or more jurisdictions. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 14: Mconnect Control App

    Launch the mconnect Control app on your network Select the Wi-Fi network on the setting menu of your device. network device. Make sure it is the same network that the Digital Vanguard is connected to. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 15 Shows the list of devices on the network. LAN & Wi-Fi Static IP Setting. • Firmware update is available here. If there is an update for the device’s rmware, the app will notify the user. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 16 Vanguard Universal DAC / Digital Vanguard Integrated Ampli er Vanguard Family - Owner's Reference mconnect App Cloud Setup Enable or Disable Internet Music Services and Cloud Storages. Disabled server will not be seen in the “Browser” screen. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 17: Playing Music

    Sub-categories such as artist, genre, title, song, etc. Digital Vanguard. are displayed. The category and tree structure may All the music in the selected folder is automatically vary between devices. listed in the Queue. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 18 Upon rst time access to a cloud Go back to Local server List Play to network device Choose Vanguard to stream music to the Digital Vanguard www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 19 Playlists may be created and managed from the Manage playlist at Playlist Send to playlist at Browser Send current Queue to playlist www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 20: Warranty

    Krell for exchange become the property of Krell. the authorized Krell distributor for that country, and at the factory. There may be restrictions on or changes to Krell’s warranty because of regulations within a www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 21 All operational features, functions, and specifications and policies are subject to change. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 22: Service

    3. The product may also be hand delivered if arrangements with the Service Department have been made in advance. Proof of purchase will be required for warranty validation at the time of hand delivery. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 23: Specifications

    RC-5 pin out Tip = RC-5 data, Ring = +5 V, Sleeve = GND XLR Pin Out Pin 1 (ground) Pin 2 (non-inverting “Hot”) Pin 3 (Inverting) Maximum Output Balanced 4 Vrms (11.6 Vrms w/Digital Pre-Amp) * Single Ended 2 Vrms (5.8 Vrms w/Digital Pre-Amp) * Audio Output Impedance Balanced 150 Ω Single Ended 150 Ω Power Consumption Stand-by 6w Operation 26w DIMENSIONS Inches (L) 16.83 x (W) 17.06 x (H) 3.47 Centimeters (L) 42.76 x (W) 43.33 x (H) 88.1 WEIGHT 18lbs Unit only 8.16kg Unit only 24lbs Shipping Weight 10.89kg Shipping weight All operational features, functions and specifications are subject to change without notification. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 24 200W RMS per channel at 8 Ω 400W RMS per channel at 4 Ω Maximum Output Voltage 113 V peak to peak 40V RMS Power Consumption Stand-by 12W ▫ Idle: 70W ▫ Maximum: 1300W DIMENSIONS Inches (L) 16.83 x (W) 17.06 x (H) 3.47 Centimeters (L) 42.76 x (W) 43.33 x (H) 88.1 WEIGHT Unit only: 39 lbs (17.7 kg) Shipping Weight: 47 lbs (21.31 kg) All operational features, functions and specifications are subject to change without notification. www.krellonline.com © 2015 by Krell Industries, LLC All rights reserved...
  • Page 25: Krell Contact Information

    WEBSITE http://www.krellonline.com Krell® is a registered trademark of Krell Industries LLC., and is restricted for use by Krell Industries LLC. its subsidiaries, and authorized agents. All other trademarks and trade names are registered to their respective companies. Thank you for your purchase of a Krell Vanguard component. Enjoy! www.krellonline.com...
