Connection Plan Control Unit

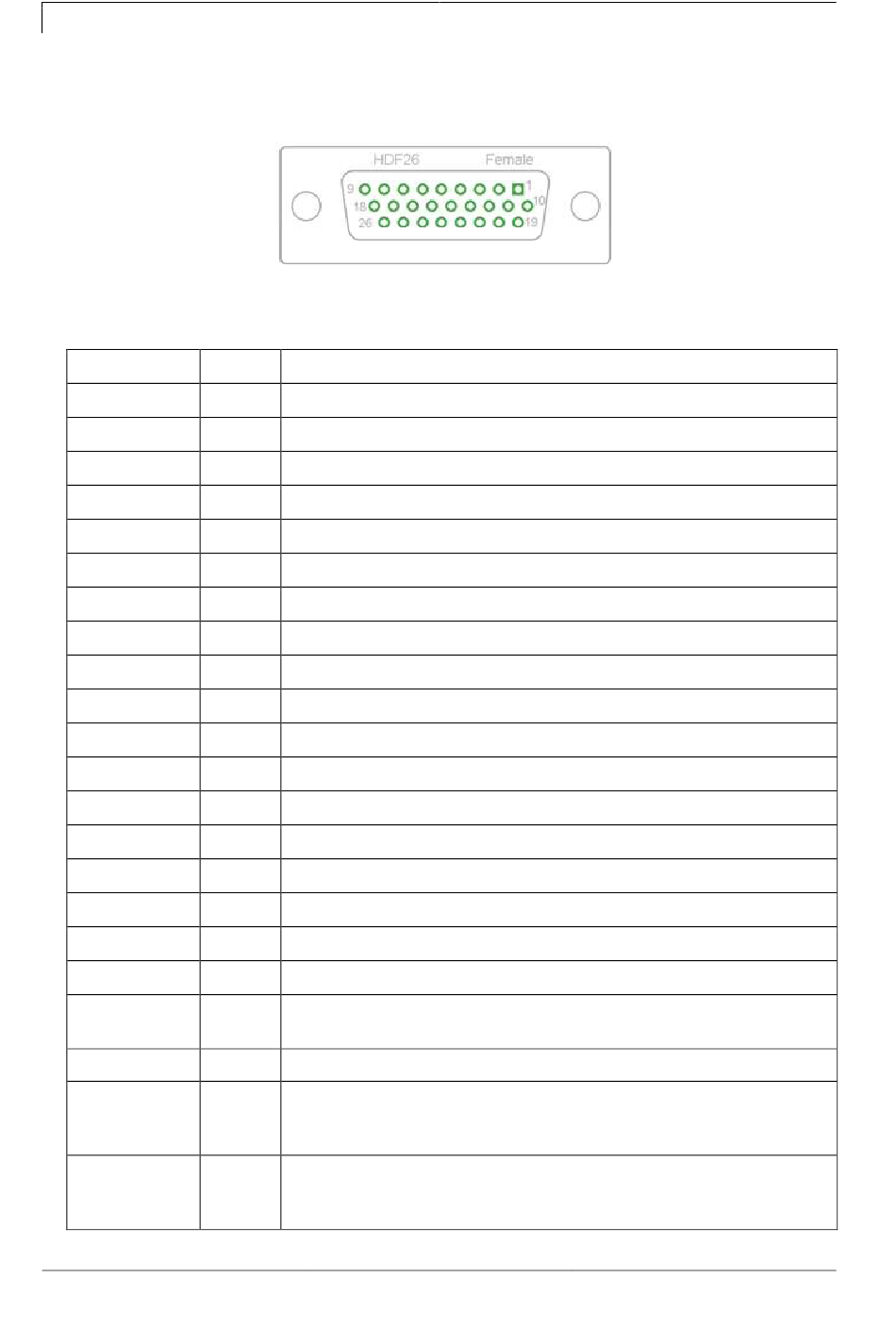

Configuration of
D-Sub socket
Identification Pin
Port 1 10
Port 2 1
Port 3 11
Port 4 2
Port 5 12
Port 6 3
Port 7 13
Port 8 4
Port 9 15
Port 10 6
Port 11 16
Port 12 7
Port 13 17
Port 14 8
Port 15 18
Port 16 9
Common In 19
Common Out 20
GND Out 5,14
21,22
GND printer 23,24
+ 5 V 25
+ 24 V 26
70

10.3 External Inputs/Outputs

Figure 43
Description / Function
Print start
No function
Counter reset
No function
Error reset
No function
No function
No function
Error
No function
No function
Printing
Ready
No function
Return printing carriage
Transfer ribbon prior warning
Common port of control inputs. The control inputs have no polarity
Common port of control outputs
Common GND of control outputs
GND of printer electronics
5 Volt max 1 A
This voltage is provided from printer and can be used as control
voltage.
24 Volt max 1 A
This voltgage is provided from printer and can be used as control
voltage.
