Carl Valentin SPE series Operating Manual
  1. Manuals
  2. Brands
  3. Carl Valentin Manuals
  4. Printer
  5. SPE series
  6. Operating manual

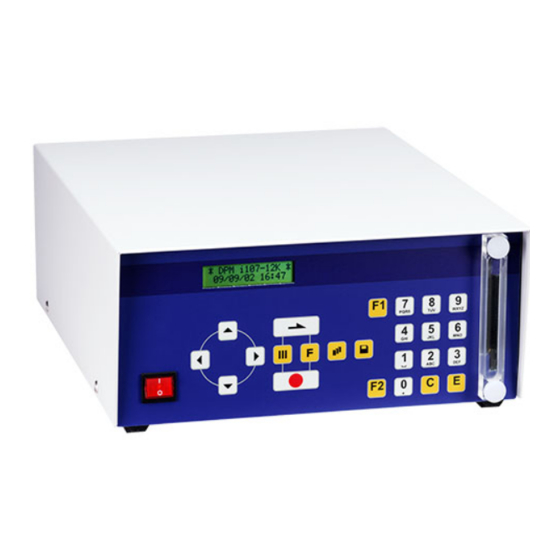

Carl Valentin SPE series Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPE series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carl Valentin SPE series

Summary of Contents for Carl Valentin SPE series

  • Page 2 It must not be concluded from the missing labelling that it is not a registered brand or a registered trademark. Carl Valentin print modules comply with the following safety guidelines: EG Low-Voltage Directive (73/32/EEC)

  • Page 3: Table Of Contents

    SPE series Table of contents Table of contents Table of contents ................3 Important notes ..............5 Intended use ................5 Environmentally-friendly disposal ..........6 Connector pin assignment ............7 Safety notes ................9 Warnings ................10 Operating conditions.............. 11 Technical Data ..............
  • Page 4 Table of contents SPE series Error correction ..............83 Additional information ............95 12.1 Column printing ..............95 12.2 Password ................96 12.3 Hotstart .................. 98 12.4 Backfeed/delay ..............100 12.5 Transmission photocells ............102 12.6 Ultrasonic photocell (option) ..........103 Index ...................

  • Page 5: Important Notes

    SPE series Important notes Important notes The print module can be used in thermal as well as in thermal transfer applications. The print module is equipped with 8 vector, 6 bitmap and 6 proportional fonts. It can be printed inverse, in italic format or 90 degrees turned fonts.

  • Page 6: Environmentally-Friendly Disposal

    It may only be organised, used and disposed of by the manufacturer. Valentin products accordingly labelled can therefore be returned to Carl Valentin GmbH. This way, you can be sure your old equipment will be disposed of correctly.

  • Page 7: Connector Pin Assignment

    Spectra Serie Important notes 1.3 Connector pin assignment Control unit Figure 1 External output 1-4 (Output I) External input 1-4 (Input I) External output 5-8 (Output II) Version I Version II SUB-D plug 9-pin SUB-D plug 15-pin External input 5-8 External bushing I/O-24 see chapter 3.1 see chapter 3.2...
  • Page 8 Important notes SPE series Rear panel of mechanics Figure 2 Connection for winder Motors Printhead signal Sensors Printhead power Operating manual 12.16...

  • Page 9: Safety Notes

    SPE series Safety notes Safety notes The print module is designed for power supply systems from 230 V. Connect the print module only to electrical outlets with a ground contact. Couple the print module to devices using extra low voltage only.

  • Page 10: Warnings

    Safety notes SPE series The print module must be integrated with the Emergency Stop circuit when it is incorporated into the overall machine. All isolating safety equipment must be installed before starting-up the machine. DANGER! Danger to life and limb from power supply! ...

  • Page 11: Operating Conditions

    SPE series Safety notes 2.2 Operating conditions Before initial operation and during operation these operating conditions have to be observed to guarantee save and interference- free service of our print modules. Therefore please carefully read these operating conditions. Shipment and storage of our print modules are only allowed in original packing.
  • Page 12 Safety notes SPE series Technical data of Power line voltage and power line frequency: See type plate power supply Allowable tolerance of power line voltage: +6% … −10% of nominal value Allowable tolerance of power line frequency: +2% … −2% of nominal value Allowable distortion factor of power line voltage: <=5%...
  • Page 13 SPE series Safety notes Connecting lines to All connecting lines have to be guided in shielded lines. Shielding has external machines to be connected on both sides to the corner shell. It is not allowed to guide lines parallel to power lines. If a parallel guiding cannot be avoided a distance of at least 0.5 m has to be...
  • Page 14 Safety notes SPE series Guarantee We do not take any responsibility for damage caused by:  Ignoring our operating conditions and operating manual.  Incorrect electric installation of environment.  Building alterations of our print modules.  Incorrect programming and operation.

  • Page 15: Technical Data

    SPE series Technical Data Technical Data 104/8 106/12 107/12 108/12 160/12 162/12 Print Resolution 203 dpi 300 dpi 305 dpi 300 dpi 305 dpi 300 dpi Max. Print Speed 200 mm/s 200 mm/s 300 mm/s 300 mm/s 200 mm/s 150 mm/s...
  • Page 16 Technical Data SPE series Operation Panel 104/8 106/12 107/12 108/12 160/12 162/12 Keys Test print, function menu, quantity, CF Card, feed, enter, 4 x cursor LCD Display Graphic display 132 x 32 pixel with green backlight Settings Date, time, shift times...
  • Page 17 SPE series Technical Data  Standard equipment Left or right version  Multi-tasking operating system  Double-spaced, multilingual display  2-slot PCMCIA drive  Date / time  IBM keyboard connection  Inputs/outputs  Windows printer driver  Optional equipment Transfer ribbon savings (only 107/12 and 160/12) ...

  • Page 18: Control Inputs And Outputs (Version I)

    Technical Data SPE series 3.1 Control inputs and outputs (version I) Plug connection - back side of control unit Figure 3 A = External output 1-4 (Output I) B = External input 1-4 (Input I) C = External output 5-8 (Output II)
  • Page 19 SPE series Technical Data Example Connection of a lamp to a 24V relay by Out 1: Figure 5 Output II PIN (bushing) Output II Figure 3, C Out 5: Print-Ready signal It is indicated if the print module is ready to process a start impulse. In...
  • Page 20 Technical Data SPE series Control inputs By means of the control inputs it is possible to control printing. The control inputs at Input I are electroplated separated and have to be provided with an external tension source. The signal level is active "HIGH".
  • Page 21 SPE series Technical Data Input II PIN (pin) Input II Figure 3, D In 5: Not used In 6: Not used Figure 9 In 7: Not used In 8: Not used 12.16 Operating manual...

  • Page 22: Control Inputs And Outputs (Version Ii)

    Technical Data SPE series 3.2 Control inputs and outputs (version II) Plug connection - back side of control unit Figure 10 A = External output 1-4 (Output I) B = External input 1-4 (Input I) C = External output 5-8 (Output II)
  • Page 23 SPE series Technical Data Example Connection of a lamp to a 24V relay by Out 1: Figure 12 Output II PIN (bushing) Output II Figure 10, C Out 5: Print-Ready signal It is indicated if the print module is ready to process a start impulse. In...
  • Page 24 Technical Data SPE series Control inputs By means of the control inputs it is possible to control printing. The control inputs at Input I are galvanic separated and have to be provided with an external tension source. The signal level is active "HIGH".
  • Page 25 SPE series Technical Data External bushing I/O-24 This input is executed as 15-pole and provides user- Figure 10, D sided 24V/100mA. In case of using this bushing, exists no galvanic separation. Function 1, 6 5, 10 24 V / 100 mA...

  • Page 26: Signal Diagrams

    Technical Data SPE series 3.3 Signal diagrams Dispensing mode: I/O dynamic Figure 17 Dispensing mode: I/O dynamic continuous Figure 18 Operating manual 12.16...

  • Page 27: Installation

    SPE series Installation Installation  Unpack the print Lift the print mechanics and control unit out of the box. mechanics and  control unit Check the print mechanics and control unit for transport damages.  Check delivery for completeness. ...

  • Page 28: Connecting The Print Module

    Installation SPE series 4.2 Connecting the print module Connecting to the The print module is equipped with a versatile power supply unit. The device may be operated with a mains voltage of 230 V / 50-60 Hz power supply without any adjustments or modifications.

  • Page 29: Initiation Of The Print Module

    SPE series Installation 4.4 Initiation of the print module Insert label material and transfer ribbon (see chapter 5. Loading media, on page 31). Start measuring in menu 'Label layout/Measure label' (see chapter 7.2 Label layout, on page 44). Press key to finish measuring.

  • Page 31: Loading Media

    SPE series Loading media Loading media 5.1 Loading label roll in peel off mode Figure 19 1. Open the print module cover. 2. Open printhead (A) by turning the red pressure lever (B) anticlockwise. 3. Open the engine support (C) by pulling the red bolt to the top.

  • Page 32: Loading Label Roll In Passing Mode

    Loading media SPE series 5.2 Loading label roll in passing mode Figure 20 1. Open the print module cover. 2. Open printhead (A) by turning the red pressure lever (B) anticlockwise. 3. Open engine support (C) by pulling the red bolt to the top.

  • Page 33: Loading Transfer Ribbon

    SPE series Loading media 5.3 Loading transfer ribbon NOTICE! For the thermal transfer printing method it is necessary to load a ribbon, otherwise when using the print module in direct thermal print it is not necessary to load a ribbon. The ribbons used in the print module have to be at least the same width as the print media.
  • Page 34 Loading media SPE series 6. In order to move the printhead (A) down, turn the red pressure lever (B) in clockwise direction until it locks. 7. Close the print module cover. NOTICE! As for the electrostatic unloading the thin coating of the thermal printhead or other electronic parts can be damaged, the transfer ribbon should be antistatic.

  • Page 35: Keyboard

    SPE series Keyboard Keyboard 6.1 Keyboard assignment (standard) Meaning Function Main menu Back to main menu. Activate test print. Delete stopped print order. Printhead upwards. Down Printhead downwards. Function menu Change to function menu. In function menu, one menu item back.

  • Page 36: Keyboard Assignment (Text Entry/Customized/Memory Card)

    Keyboard SPE series 6.2 Keyboard assignment (text entry/customized/memory card) The control unit of the print module is equipped with an alphanumeric character block which allows the user to enter parameters and customised variables without the connection of an external keyboard.
  • Page 37 SPE series Keyboard Meaning Function Main menu Back to main menu. Activate test print. Delete stopped print order. For customized variables, change between single entries. Down For customized variables, change between single entries. Funktion menu No function. Vorschub Entry confirmation. Change to the main menu.

  • Page 39: Function Menu

    SPE series Function menu Function menu Print Settings Speed Contrast Ribbon control Y offset X offset Tear-off offset Label Layout Label length Gap length Column printing Measure label Label type Material selection Photocell Scan position Label error length Synchronisation Flip label...
  • Page 40 Function menu SPE series Dispenser I/O (option) Operating modes Photocell level IN signal level OUT signal level Debounce Start signal delay I/O Protocol Save signal Ribbon Save (option) On/Off Network (option) IP address Netmask Standard Gateway Speed/Duplex DHCP Printer name...
  • Page 41 SPE series Function menu Interface COM1 Baud Parity Data bits Stop bit COM2 Baud Parity Data bits Stop bit Start sign Stop sign Data memory Parallel port Port test Emulation Protocol Printhead resolution Drive mapping Date/Time Set date/time Summertime Start of summertime - format...
  • Page 42 Function menu SPE series Service Functions Label parameters Photocell settings Paper counter Heater resistance Printhead temperature Motor ramp Print examples Input/Output Cutter photocell Online/Offline Transfer ribbon prior warning Zero point adjustment CF Card / USB Stick Load layout Change directory...

  • Page 43: Print Settings

    SPE series Function menu 7.1 Print settings After switching on the control unit, the display shows the following: Press key to access the function menu. Press key to select the menu. Speed: Indication of print speed in mm/s. Contrast: Indication of contrast in %.

  • Page 44: Label Layout

    Function menu SPE series 7.2 Label layout Press key to access the function menu. Press key as long as you arrive at the 'Label layout' menu. Press key to select the menu. Label: Indication of label length in mm. Gap: Indication of distance between two labels in mm (not for continuous labels).
  • Page 45 SPE series Function menu Press key to arrive at the next menu item. Label error length: In case an error occurs, indication after how many mm a message appears in the display. Value range: 1 mm … 999 mm. Synchronisation: On: If a label is missed on the liner an error message is displayed.

  • Page 46: Device Settings

    Function menu SPE series 7.3 Device settings Press key to access the function menu. Press key as long as you arrive at the 'Device settings' menu. Press key to select the menu. Field handling: Off: The complete print memory is deleted.
  • Page 47 SPE series Function menu Press key to arrive at the next menu item. Keyboard layout: Selection of region for the desired keyboard layout. The following possibilities are available: Germany, England, France, Greece, Spain, Sweden and US. Press key to arrive at the next menu item.
  • Page 48 Function menu SPE series Press key to arrive at the next menu item. Backfeed / Delay: Backfeed: The backfeed was optimised in the operating modes dispenser (optional), cutter (optional) and tear off. Now, when driving into the offset, the following label is 'pre-printed' if possible and therefore the backfeed of label is no necessary and time can be saved.

  • Page 49: Dispenser I/O

    SPE series Function menu 7.4 Dispenser I/O In order to operate the print module in dispensing mode a print order has to be started and the print module has to be in 'waiting' mode. Press key to access the function menu.
  • Page 50 Function menu SPE series Additional parameters After selection of desired dispenser I/O operating mode, press key for dispenser I/O to select additional parameters. Photocell switch level: First value = Indication of current photocell level. Second value = Indication if a label (value = 1) or if no label (value = 0) was found.
  • Page 51 SPE series Function menu Press key to arrive at the next parameter. Save signal: On: The start signal for the next label can already be released during printing the current label. The signal is registered from the print module. The print module starts printing the next label immediately after finishing the current one.

  • Page 52: Remote Console

    Function menu SPE series 7.5 Remote console Press key to access the function menu. Press key as long as you arrive at the 'Remote console' menu. For more information please contact our sales department. 7.6 Interface Press key to access the function menu.
  • Page 53 SPE series Function menu Press key to arrive at the next menu item. SOH: Start of data transfer block Hex format 01 ETB: End of data transfer block Hex formal 17 Two different start / en signs can be set. The settings are normally SOH = 01 HEX and ETB = 17 HEX.

  • Page 54: Emulation

    Press key as long as you arrive at the 'Emulation' menu. Press key to select the menu. Protocol: CVPL: Carl Valentin Programming Language ® ZPL: Zebra Programming Language ® Change between CVPL protocol and ZPL II protocol.

  • Page 55: Date & Time

    SPE series Function menu 7.8 Date & time Press key to access the function menu. Press key as long as you arrive at the 'Date/Time' menu. Press key to select the menu. Set date and time: The upper line of display shows the current date, the second line the current time.

  • Page 56: Service Functions

    Function menu SPE series 7.9 Service functions NOTICE! So that the distributor res. the print module manufacturer at the case of service can offer fast support, the print module is equipped with the Service functions menu. Necessary information such as set parameter can read directly at the print module (see chapter 7.10, on page 59).
  • Page 57 SPE series Function menu Press key to arrive at the next menu item. Motor Ramp: This function is often used for high printing speed as the tearing of transfer ribbon can be prevented. The higher the '++' value is set, the slower the feeding motor is accelerated.
  • Page 58 Function menu SPE series Press key to arrive at the next menu item. TRB = Transfer ribbon advance warning: Before the end of transfer ribbon, a signal is send by the control output. Warning diameter: Setting of transfer ribbon acvance warning diameter.

  • Page 59: Main Menu

    SPE series Function menu 7.10 Main menu After switching on the control unit, the display shows the following: The first line of main menu indicates used model type. The second line indicates current date and time. Press key for display the following: The second line of display indicates version number of firmware.

  • Page 61: Options

    SPE series Options Options 8.1 Ribbon save The menu item ribbon save is only displayed if the print module recognizes the option by the ribbon save photocell when switching on the print module. Ribbon save = maximum utilisation of transfer ribbon The above example shows that the consumption of transfer ribbon is much lower when using the ribbon save option.

  • Page 62: Scanner

    Options SPE series 8.3 Scanner Press key to access the function menu. Press key as long as you arrive at the 'Scanner' menu. Press key to select the menu. Mode: Mode 1 (data comparison) i.e. bar code date which was read by the scanner is compared with the printed data.
  • Page 63 SPE series Options Press key to arrive at the next menu item. Scanner offset: Indication of value at which the label is moved so the scanner can read data onto the label. Press key to arrive at the next menu item.

  • Page 65: Memory Card

    SPE series Memory Card Memory Card This front side of control unit is equipped with two memory card slots. By means of this memory card you can permanently save via interface graphics, text, label data or information from database. Insert memory card with contact side forwards to the slot that was...
  • Page 66 Memory Card SPE series Key assignment Press key to indicate the saved labels onto the memory card. Press key to enter the memory card menu. Press key to arrive at the next menu item. Press key to return to the previous menu item.
  • Page 67 SPE series Memory Card Loading file from Keys: memory card Press key to select the 'Load file' menu item. Select the file you want to load and confirm the selection with key The loaded label is now in the printer internal storage and after the loading procedure the display shows the main menu.
  • Page 68 Memory Card SPE series Changing Keys: directory/drive Press key to select the 'Change directory' menu item. The lower line of display shows the directory which is selected at the moment. Press key to change the directory in the upper line.
  • Page 69 SPE series Memory Card Copying Keys: memory card Press key to select the 'Copy' menu item. Press key to select the copy function. Drive A to A, A to B, B to A or B to B. Insert source and destination card and press key to confirm the selection.

  • Page 71: Maintenance And Cleaning

    SPE series Maintenance and cleaning 10 Maintenance and cleaning DANGER! Risk of death by electric shock!  Disconnect the print module from power supply before performing any maintenance work. NOTICE! When cleaning the label printer, personal protective equipment such as safety goggles and gloves are recommended.

  • Page 72: General Cleaning

    Maintenance and cleaning SPE series WARNING! Risk of fire by easily inflammable label soluble!  When using label soluble, dust must be completely removed from the print module and cleaned. 10.1 General cleaning CAUTION! Abrasive cleaning agents can damage the print module! ...

  • Page 73: Cleaning The Print Roller

    SPE series Maintenance and cleaning 10.3 Cleaning the print roller A soiled print roll can lead to reduced print quality and can affect transport of material. CAUTION! Print roller can be damaged!  Do not use sharp or hard objects to clean the print roller.

  • Page 74: Cleaning The Printhead

    Maintenance and cleaning SPE series 10.4 Cleaning the printhead Printing can cause accumulation of dirt at printhead e.g. by colour particles of transfer ribbon, and therefore it is necessary to clean the printhead in regular periods depending on operating hours, environmental effects such as dust etc.

  • Page 75: Cleaning The Label Photocell

    SPE series Maintenance and cleaning 10.5 Cleaning the label photocell CAUTION! Label photocell can be damaged!  Do not use sharp or hard objects or solvents to clean the label photocell. The label photocell can become dirtied with paper dust and this can adversely affect label detection.

  • Page 76: Replacing The Printhead (General)

    Maintenance and cleaning SPE series 10.6 Replacing the printhead (general) Figure 27 Head plate Plug connection signal Plug connection tension Printhead Focal line Guiding Knurled screw CAUTION! The printhead can be damaged by static electricity discharges and impacts!  Set up print module on a grounded, conductive surface.

  • Page 77: Replacing Flattype Printhead

    SPE series Maintenance and cleaning 10.7 Replacing FlatType printhead Figure 28 1. Remove labels and transfer ribbon from the print module. Removing the printhead 2. When printhead is closed, loosen the knurled screws (1). 3. Turn red lever (2) counter clockwise to lift up the printhead.

  • Page 78: Adjusting Flattype Printhead

    Maintenance and cleaning SPE series 10.8 Adjusting FlatType printhead Parallelism An important characteristic for a high quality print is the parallelism of the focal line of the thermal printhead to the pressure roll. Because of the fact that the position of focal line of the printhead depends on fluctuations caused by production, it is necessary to adjust the parallelism.
  • Page 79 SPE series Maintenance and cleaning Pressure Increasing the head contact pressure leads to an improvement of the print image density on the corresponding side and to a shifting of the ribbon feed path in the corresponding direction. CAUTION! Damage of printhead by unequal use! ...

  • Page 80: Replacing Cornertype Printhead

    Maintenance and cleaning SPE series 10.9 Replacing CornerType printhead Figure 29 Removing the 1. Remove labels and transfer ribbon from the print module. printhead 2. When printhead is closed, loosen the knurled screws (1). 3. Turn red lever (2) counter clockwise to lift up the printhead.

  • Page 81: Adjusting Cornertype Printhead

    SPE series Maintenance and cleaning 10.10 Adjusting CornerType printhead Parallelism An important characteristic for a high quality print is the parallelism of the focal line of the thermal printhead to the pressure roll. Because of the fact that the position of focal line of the printhead depends on fluctuations caused by production, it is necessary to adjust the parallelism.
  • Page 82 Maintenance and cleaning SPE series Pressure Increasing the head contact pressure leads to an improvement of the print image density on the corresponding side and to a shifting of the ribbon feed path in the corresponding direction. CAUTION! Damage of printhead by unequal use! ...

  • Page 83: Error Correction

    SPE series Error correction 11 Error correction Line rises up completely or partly Move line down (increase Y over the upper edge of label. value). Check rotation and font. Line rises up completely or partly Move line up (reduce X value).
  • Page 84 Error correction SPE series Loss of data at serial interface Check baud rate. (RS-232). Check cable (module and PC). Received line number is invalid Check sent data. at RS-232 and Centronics. Check connection PC - module. Invalid length of received mask Check sent data.
  • Page 85 SPE series Error correction Printhead temperature is too Reduce contrast. high. Change printhead. Defective printhead sensing device. With cut an error occurred. Check label run. Paper jam. Check cutter run. Entered data do not correspond Check code data. to the characters allowed from the application identifier.
  • Page 86 Error correction SPE series Invalid length of the received Check data sent. command statement. Check connection PC - module. Memory card not found / not Insert memory card correctly. correctly inserted. Impossible to read memory card Check memory card, if (faulty).
  • Page 87 SPE series Error correction The selected file/directory Check name, select a different already exists. name. During copying procedure not Use a larger target card. enough memory space onto target drive available. Errors in update file of firmware. Start update file anew.
  • Page 88 Error correction SPE series The connected bar code Check the connection scanner signals a device error. scanner/module. Check scanner (dirty). Bad print quality. Increase contrast. Printhead completely soiled or Clean printhead or exchange (if defective. necessary). Print speed too high.
  • Page 89 SPE series Error correction Protocol error IGP. Check sent data. Printing creation was still active Reduce print speed. at print start. Use modules' output signal for synchronisation. Use bitmap fonts to reduce generating time. Both DPM position sensors Displace zero point sensor (start/end) are active.
  • Page 90 Error correction SPE series The scanner could not read the bar code within the set timeout time. Defective printhead. Check printhead. Wrinkles in transfer ribbon. Check transfer ribbon. Scanner wrong positioned. Position scanner correctly, Timeout time too short. corresponding to the set feeding.
  • Page 91 SPE series Error correction No original printhead is used. Check the used printhead. Contact your distributor. Wrong Tag type. Adapt data or use the correct Tad data do not match the Tag Tag type. type in the printer. RFID module is not activated.

  • Page 93: Column Printing

    SPE series Additional information 12 Additional information 12.1 Column printing With this print module several columns can be printed, i.e. the information of one column can be printed several times (depending on its width) on a label. Caused by this the use of the complete print width is possible and the generating time is enormously reduced.

  • Page 94: Password

    Additional information SPE series 12.2 Password Example 1: The supervisor programs a Memory Card directly with the module. He stores 10 different labels. As well he adjusts the print parameters, like contrast, speed, etc. to the corresponding values. The user is only supposed to read the labels from memory card and to print them.

  • Page 95: Additional Information

    SPE series Additional information Define password In case no password is defined res. the password protection is not activated, all functions can be used. In the function menu you will find the menu item "Password", where the password can be entered and the password protection activated.

  • Page 96: Hotstart

    Additional information SPE series 12.3 Hotstart NOTICE! The data is saved onto CF card. Therefore the CF card is a condition for the Hotstart menu item. The function hotstart contains e.g. that in case of a power failure the currently loaded label can be further processed without any loss of data.
  • Page 97 SPE series Additional information Starting the print order In case at switching off the print module a print order was active, then a print start is released automatically and the required res. actual number of printed labels is refreshed. In case the print order was stopped at switching off the print module, it is again set to the stopped mode after switching on the print module anew.

  • Page 98: Backfeed/Delay

    Additional information SPE series 12.4 Backfeed/delay Backfeed operating In continuous dispensing mode (IO dynamic continuous, IO static modes continuous, IO photocell continuous) no optimised backfeed is possible. Because of the fact when changing the print order, then the current label in the offset sector is already printed from the old print order.
  • Page 99 SPE series Additional information No backfeed Peel off: After printing the label it is driven into the dispensing offset and there waited. When releasing a new start signal (IO dynamic) then the next label is immediately printed. Because of the fact that the label is already in the offset, the label is only printed from beginning of offset position, i.e.

  • Page 100: Transmission Photocells

    Additional information SPE series 12.5 Transmission photocells Transmission photocell For this photocell type the transmitter is at the top res. the receiver at normal the bottom, i.e. the infra-red light is sent from the top. In this way the label detection is also from the top. This photocell type is used for standard adhesive labels with gap.

  • Page 101: Ultrasonic Photocell (Option)

    SPE series Additional information 12.6 Ultrasonic photocell (option) NOTICE! The printer may not be equipped with the option ribbon save. This photocell type is particularly suitable for the use of transparent labels on transparent backing paper. NOTICE! The ultrasonic photocell must be adjusted on the currently used label material.
  • Page 102 Additional information SPE series Sensitivity setting Slow setting: Press key and/or once. The red LED lights with each key press. Fast setting: Press key and/or permanently. The red LED flashes after 2 seconds. Light (L) / dark (D) Press key simultaneously for 6 seconds.

  • Page 103: Index

    SPE series Index 13 Index Backfeed/delay ................. 100, 101 Column printing .................. 95 Connecting print module ..............28 Connector pin assignment Control unit ..................7 Rear panel of mechanics ..............8 Environmentally-friendly disposal ............6 Error correction ........83, 84, 85, 86, 87, 88, 89, 90, 91 Function menu Device settings .................
  • Page 104 Index SPE series Print roller cleaning ................. 73 Printhead adjusting ............. 78, 81, 82 Printhead cleaning ................74 Printhead replacing ............. 76, 77, 80 Ribbon drawing roller, cleaning ............72 Operating conditions ............11, 12, 13, 14 Options Memory card ..............66, 67, 68, 69 Network ...................

Table of Contents
