Mosaic
TM
6 A pushbuttons
0 770 30/31
0 792 30
1. USE
General lighting control mechanisms with or without signalling elements (indicator light, label holder).
2. RANGE
Designation
6 A pushbutton
6 A changeover
pushbutton
6 A changeover
pushbutton
with indicator light
6 A pushbutton
6 A
changeover pushbutton
6 A changeover
pushbutton
with indicator light

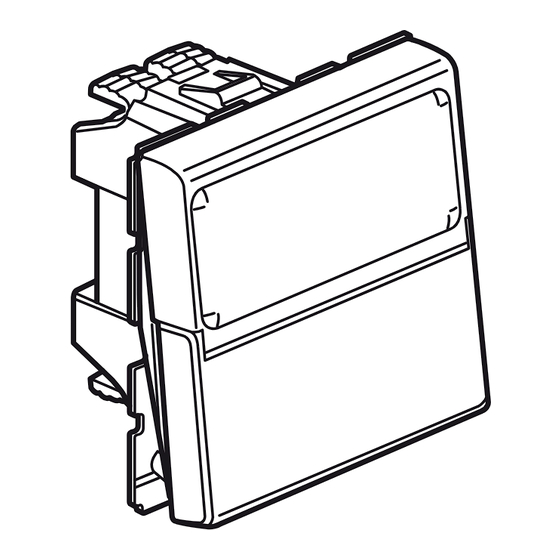

6 A changeover
pushbutton
with label holder
6 A changeover
pushbutton
with pull-cord
3. PREPARATION
Modular mechanisms using adapter Cat. No. 0 802 99 (2 modules).
The mechanisms are mounted on thin walls using adapters Cat. No. 0 802 90 (1 module),
Cat. No. 0 802 91 (2 modules), Cat. No. 0 802 92 (2 x 1 vertical module).
The mechanisms can be flush-mounted or surface-mounted.
Technical data sheet: F00421EN/02
CONTENTS
0 770 43
Finishes
White plastic
Aluminium
0 770 30
0 792 30
0 770 31
0 770 32
0 792 32
0 770 40
0 792 40
0 770 41
0 770 42
0 792 42
0 770 43
0 770 44
Updated: 25/10/2011
87045 LIMOGES Cedex
Telephone: 33 0 5 55 06 87 87 - Fax: 33 0 5 55 06 88 88
Cat. No(s).: 0 770 30/31/32/40/41/42/43/44
0 792 30/32/40/42
CONTENTS
1. Use. . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Range . . . . . . . . . . . . . . . . . . . . . . . .1
3. Preparation. . . . . . . . . . . . . . . . . . . 1-2
4. Overall dimensions. . . . . . . . . . . . . . .2
5. Connection . . . . . . . . . . . . . . . . . . . 2-3
6. Operation . . . . . . . . . . . . . . . . . . . . . .3
7. Technical characteristics . . . . . . . . . .3
8. Cleaning . . . . . . . . . . . . . . . . . . . . . . .3
9. Accessories . . . . . . . . . . . . . . . . . . . .3
10. Conformity - Approvals. . . . . . . . . . . .3
0 770 44
Number
Connection
of modules
method
1
auto.
1
auto.
1
auto.
2
auto.
2
auto.
2
auto.
2
auto.
2
auto.
Page
Weight (g)
Characteristics
17.6
6 A - 250 V~
17.6
6 A - 250 V~
18.79
6 A - 250 V~
21.81
6 A - 250 V~
21.81
6 A - 250 V~
23
6 A - 250 V~
22.7
6 A - 250 V~
26.74
6 A - 250 V~
Created: 04/12/2006
1/3
