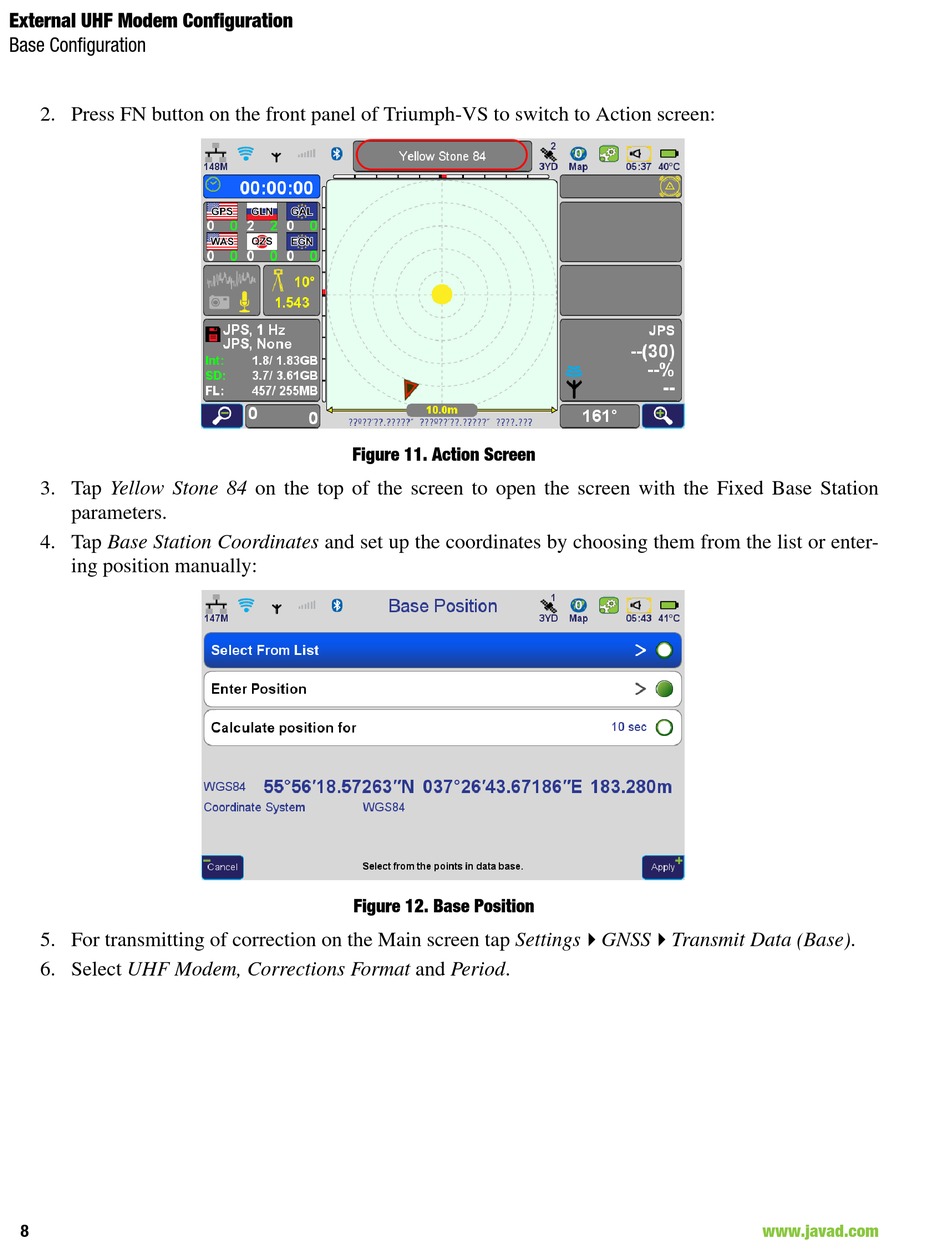

External UHF Modem Configuration
Base Configuration
2. Press FN button on the front panel of Triumph-VS to switch to Action screen:
3. Tap Yellow Stone 84 on the top of the screen to open the screen with the Fixed Base Station
parameters.
4. Tap Base Station Coordinates and set up the coordinates by choosing them from the list or enter-
ing position manually:
5. For transmitting of correction on the Main screen tap SettingsGNSSTransmit Data (Base).
6. Select UHF Modem, Corrections Format and Period.
8
Figure 11. Action Screen
Figure 12. Base Position
