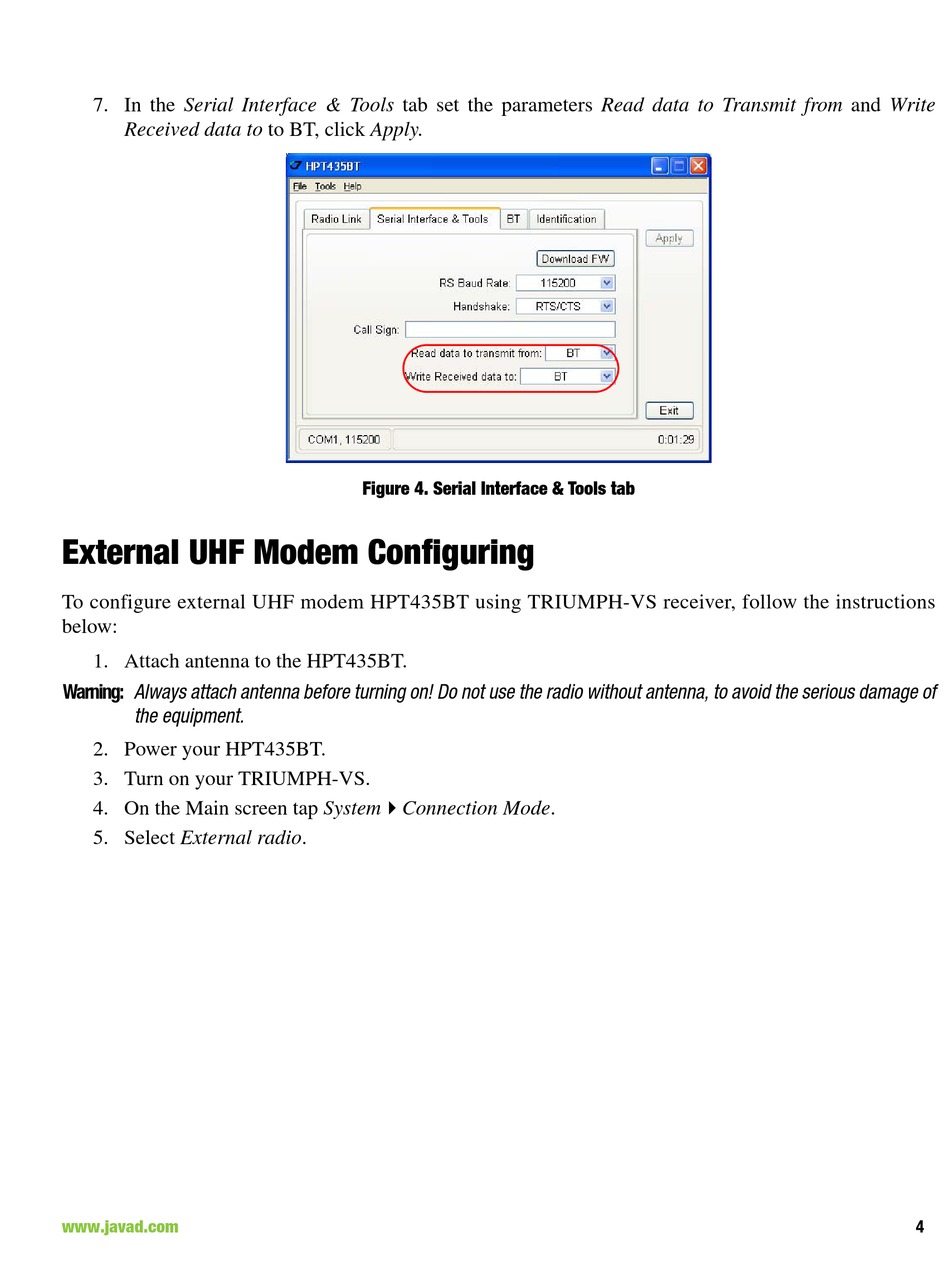

Javad TRIUMPH-VS Configuration Example page 4

7. In the Serial Interface & Tools tab set the parameters Read data to Transmit from and Write
Received data to to BT, click Apply.
External UHF Modem Configuring
To configure external UHF modem HPT435BT using TRIUMPH-VS receiver, follow the instructions
below:
1. Attach antenna to the HPT435BT.
Warning: Always attach antenna before turning on! Do not use the radio without antenna, to avoid the serious damage of
the equipment.
2. Power your HPT435BT.
3. Turn on your TRIUMPH-VS.
4. On the Main screen tap SystemConnection Mode.
5. Select External radio.
www.javad.com
Figure 4. Serial Interface & Tools tab
