Setup NTRIP Client
◦ In the Services/NTRIP tab set following parameters:
"Server name/address", "Port", "User" , "Password" .
Click "Save Setting" button and wait until finish.
Click '"Update" button and select "Mountpoint" .
Click "Save Setting" button and wait until finish (see Picture 8).
Detailed connection status you can check in Status/NTRIP tab (see Picture 9).
HPT435BT JL

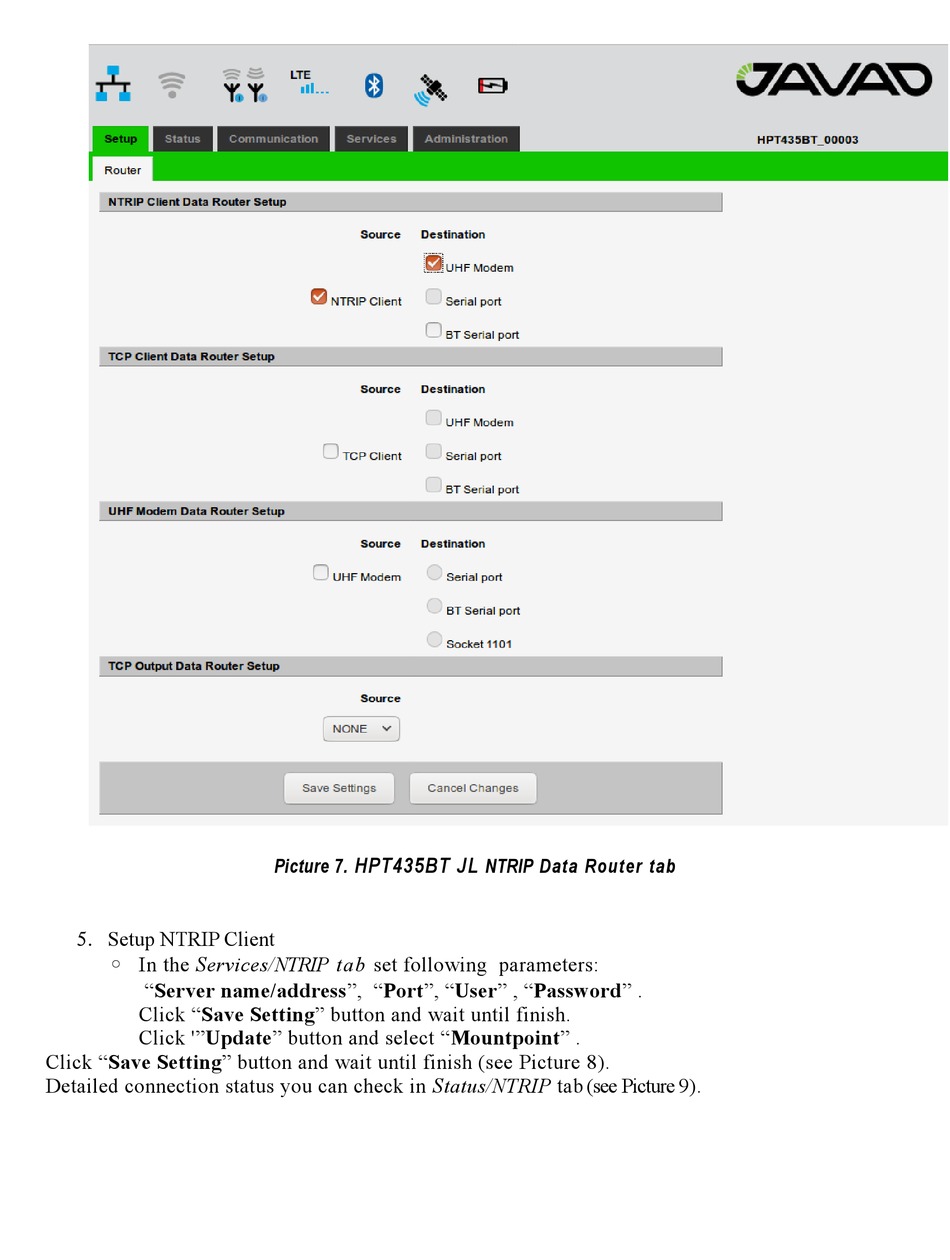

Picture 7.
NTRIP Data Router tab
