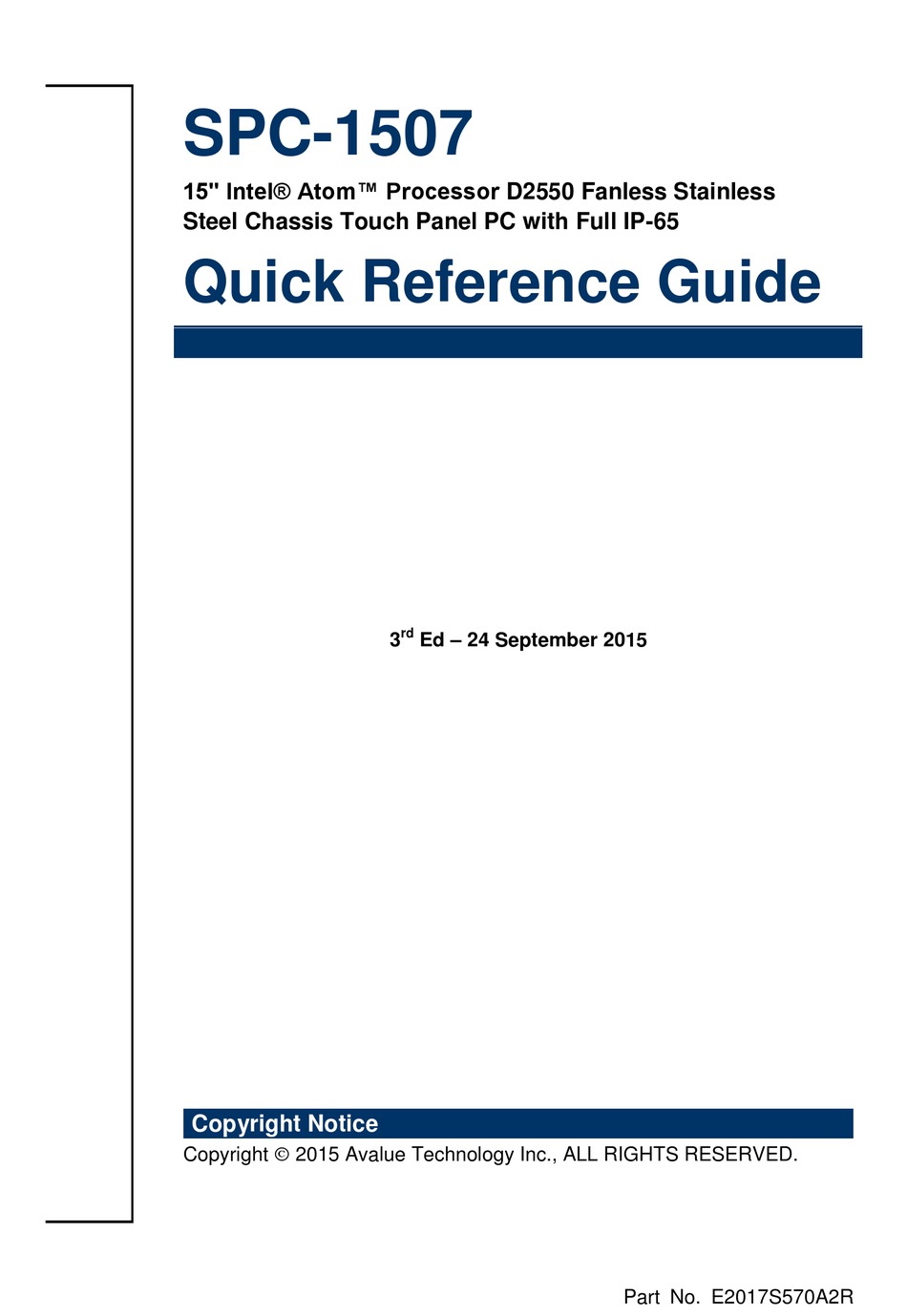

- Page 1 SPC-1507 15" Intel® Atom™ Processor D2550 Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65 Quick Reference Guide Ed – 24 September 2015 Copyright Notice Copyright 2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017S570A2R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 SPC-1507 Quick Reference Guide...
-
Page 3: Table Of Contents
Getting Started ......................4 1.1 Safety Precautions ....................4 1.2 Packing List ....................... 4 1.3 System Specifications ....................5 1.4 System Overview ...................... 7 1.4.1 Front View .......................... 7 1.4.2 Rear View ........................... 8 1.5 System Dimensions ....................9 SPC-1507 Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SPC-1507 Panel PC 1 x Driver/Utility DVD-ROM ... -
Page 5: System Specifications
System Fan Fanless Color Front & Rear Panel Silver Mounting Wall/Stand/VESA 75 mm x 75 mm Power Requirement +12 V ~ +26 V Input: 100~240 Vac/ 50~60 Hz Power Adapter Output: +24 Vdc / 2.5 A (60W) SPC-1507 Quick Reference Guide... - Page 6 AT/ATX Operating Temp. 0 to 40°C Storage Temp. -10 to 60°C Operating Humidity 5%~90% relative humidity, non-condensing Dimensions 371 x 308 x 63.6 mm Weight 6.42 Kgs Note: Specifications are subject to change without notice. 6 SPC-1507 Quick Reference Guide...
-
Page 7: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Front View Note: Programmable keys are available to be programmed by the user; they are unable to work unless programmed. SPC-1507 Quick Reference Guide... -
Page 8: Rear View
Function Note Waterproof USB2.0 2 x Waterproof USB2.0 connector Waterproof 18 pin Waterproof 18 pin connector connector (to convert 1 x USB/ 1 x LAN/ 1 x COM) Waterproof DC Waterproof DC Power-in connector Power-in 8 SPC-1507 Quick Reference Guide... -
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) SPC-1507 Quick Reference Guide...
